Left Transaxle Mount & Bracket: Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Remove the left front tire and wheel. Remove the left fascia extension. Install a transaxle stand under the transaxle in order to support the powertrain.
  2. Remove the mount stud nut from the mount stud to allow separation of the mount from the mount bracket. See Fig 1 . Remove the nut (4) and bolt (1) and the nuts (3) from the vehicle. See Fig 2 .
  3. Slowly lower the transaxle stand and remove the stand. Lower the vehicle. Remove the frame rail bolt retaining screws. See Fig 3 . Raise the vehicle.
  4. Push up on the frame rail bolts in order to clear the mount as the top of the mount is tilted away from the vehicle. Remove the mount (2) from the vehicle.
  5. Remove the 4 attaching bolts from the side cover. Remove the left transaxle mount bracket (1) from the vehicle. See Fig 4 .

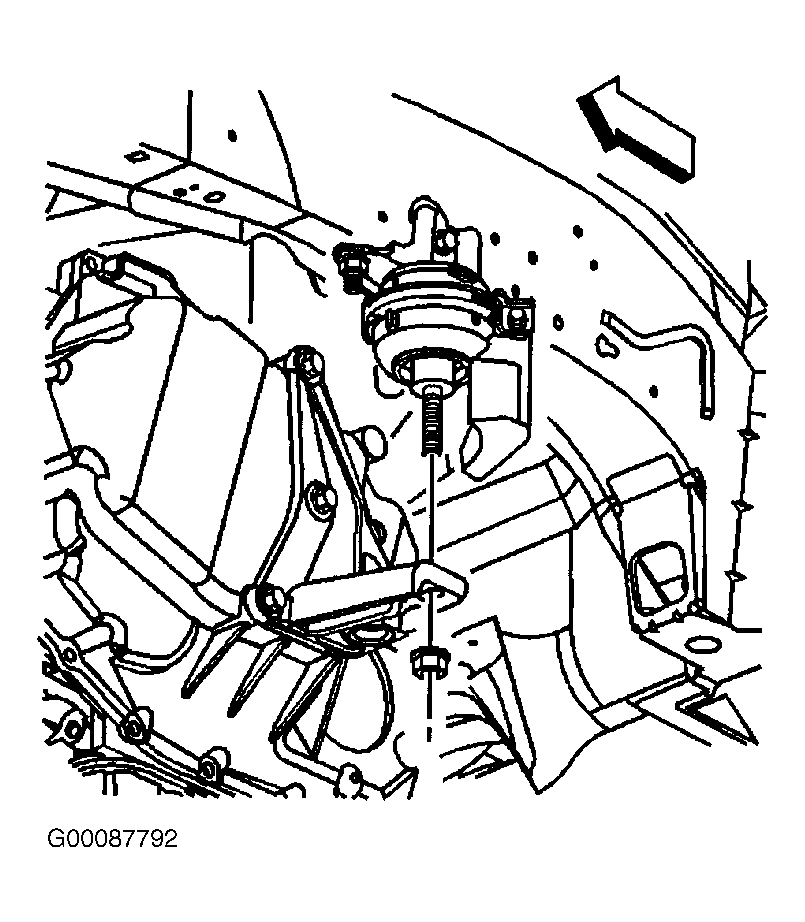

Fig 1: Removing & Installing Mount Stud Nut
G00087792Courtesy of GENERAL MOTORS CORP.

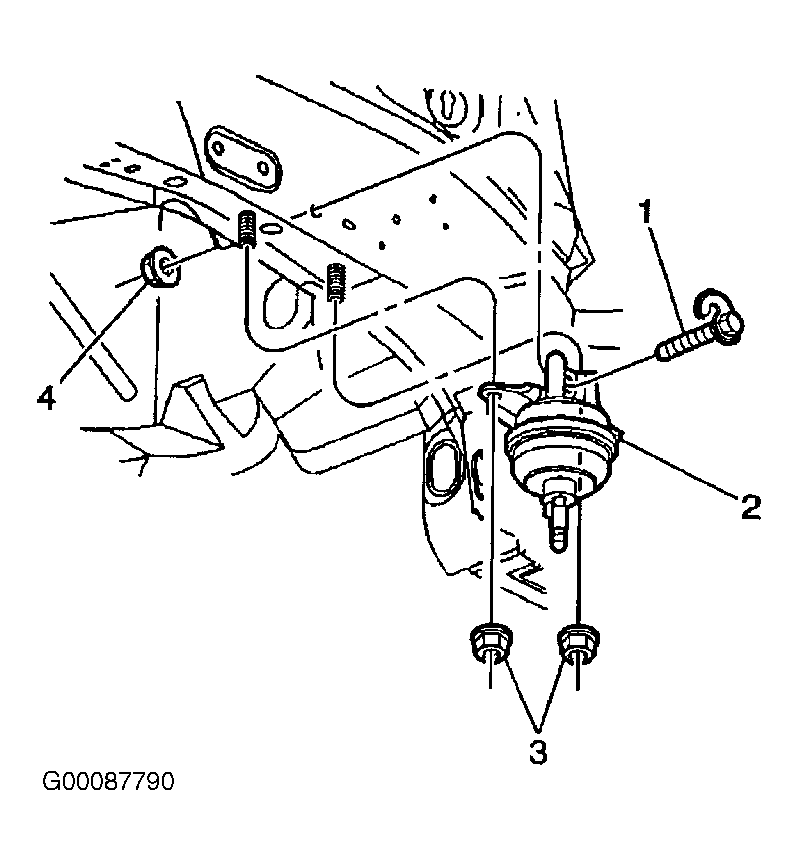

Fig 2: Removing & Installing Left transaxle Mount
G00087790Courtesy of GENERAL MOTORS CORP.

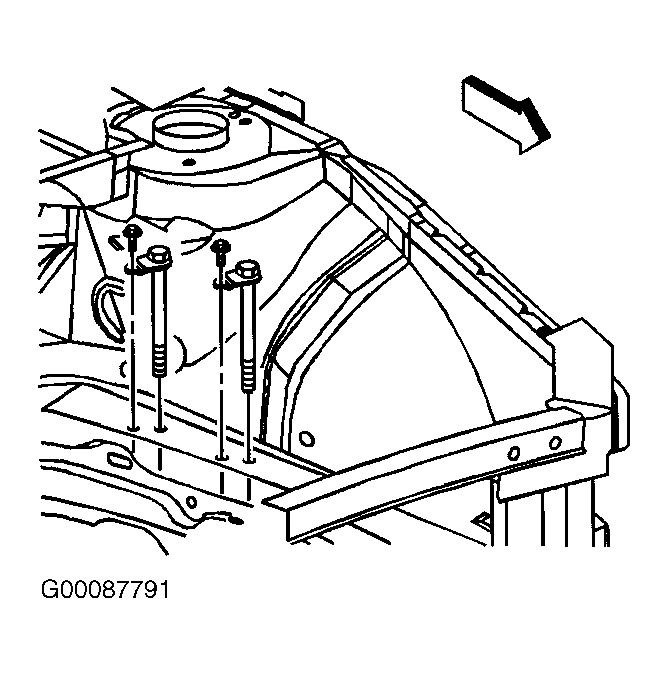

Fig 3: Removing & Installing Frame Rail Bolt Retaining Screws
G00087791Courtesy of GENERAL MOTORS CORP.

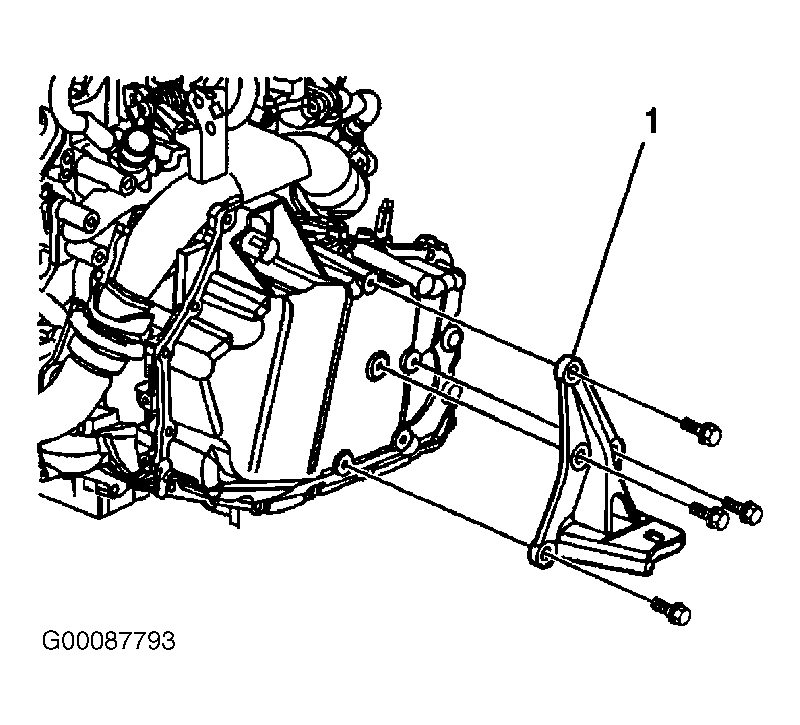

Fig 4: Removing & Installing Left Transaxle Mount Bracket
G00087793Courtesy of GENERAL MOTORS CORP.
