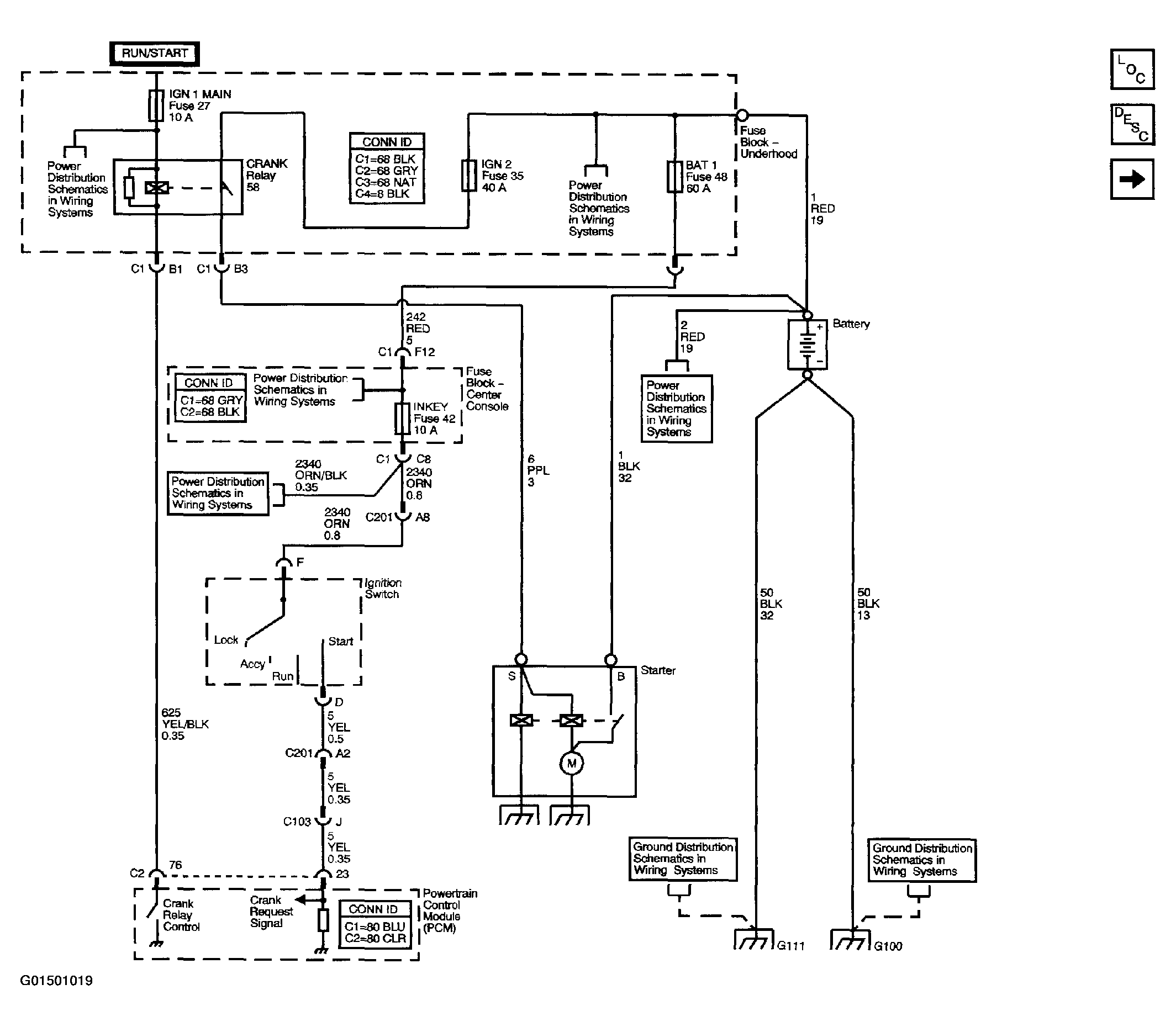

Fig 1: Starting And Charging Schematics (Engine Cranking)
Courtesy of GENERAL MOTORS CORP.

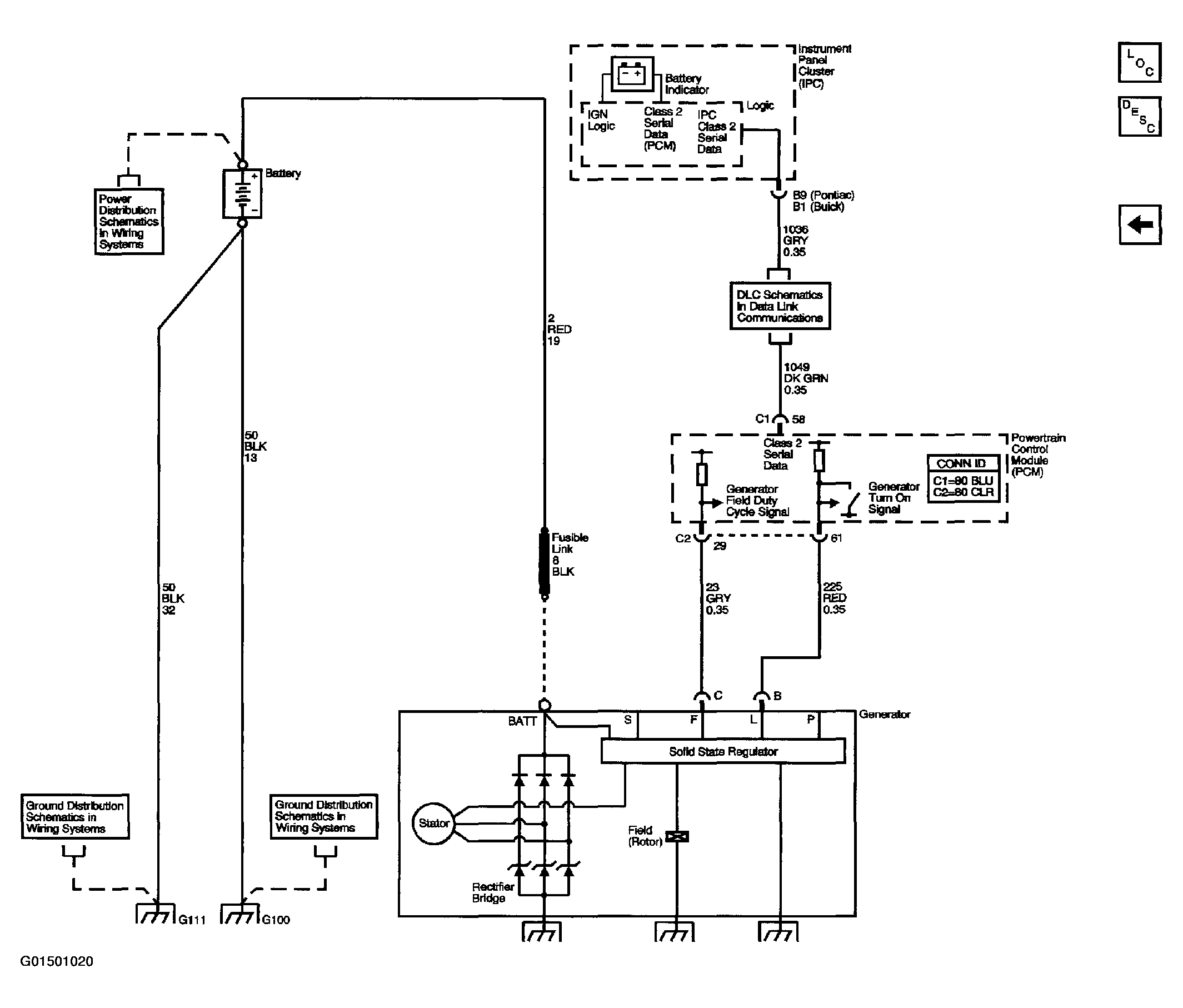

Fig 2: Starting And Charging Schematics (Charging Control & Indicator)
