Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY REPLACEMENT  .
  2. Remove the battery tray bolts.
  3. Remove the battery tray.

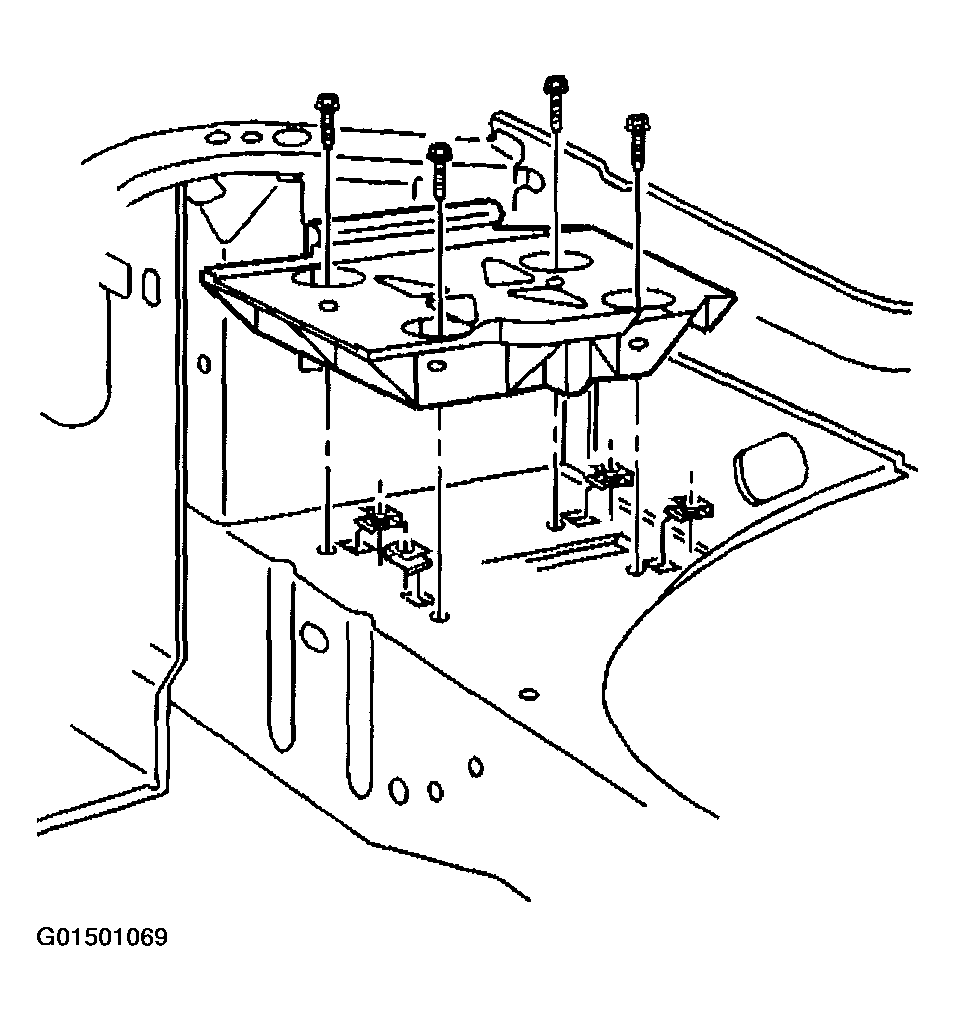

    Fig 1: Removing Battery Tray Bolts And Tray
    G01501069Courtesy of GENERAL MOTORS CORP.
