Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery tray.
  2. Install the battery tray bolts.

    Tighten

    Tighten the battery tray bolts to 10 N.m (89 lb in).

  3. Install the battery. Refer to BATTERY REPLACEMENT  .

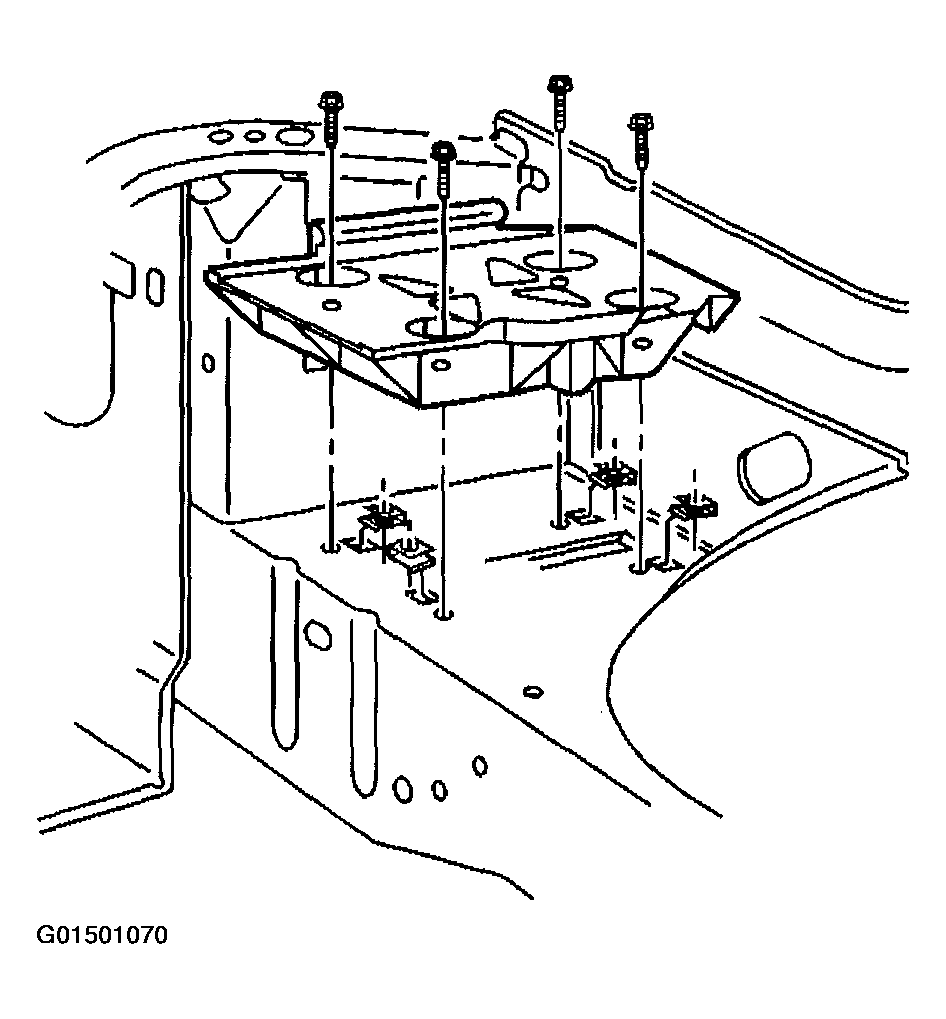

    Fig 1: Installing Battery Tray Bolts And Tray
    G01501070Courtesy of GENERAL MOTORS CORP.
