Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Record all of the customer's radio station presets.
  2. Turn off all the lamps and accessories.
  3. Turn the ignition OFF.
  4. Remove the battery ground (negative) cable and bolt from the battery.

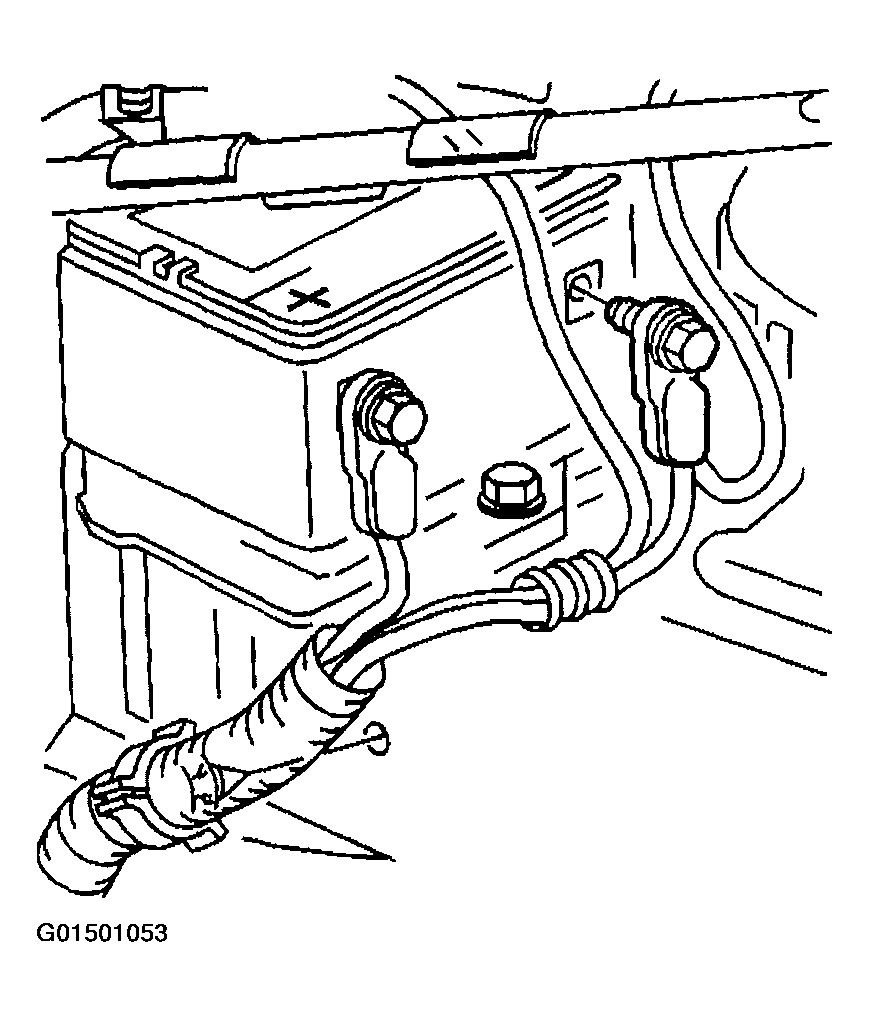

    Fig 1: Removing Battery Ground (Negative) Cable And Bolt
    G01501053Courtesy of GENERAL MOTORS CORP.
