Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Important: Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.

Install the battery ground (negative) cable and bolt to the battery.
Tighten

Tighten the battery terminal bolt to 16 N.m (12 lb ft).
Program all of the customer's radio station presets and set the radio clock to the current time.

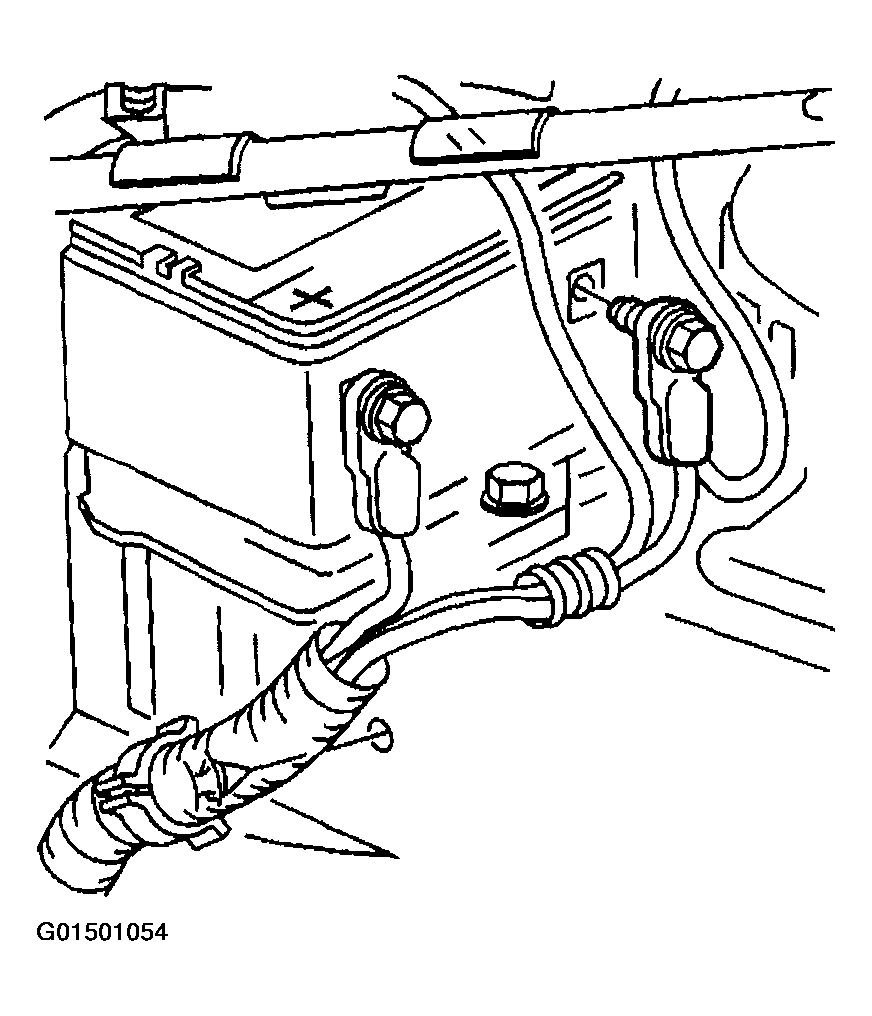

Fig 1: Installing Battery Ground (Negative) Cable And Bolt
Courtesy of GENERAL MOTORS CORP.
