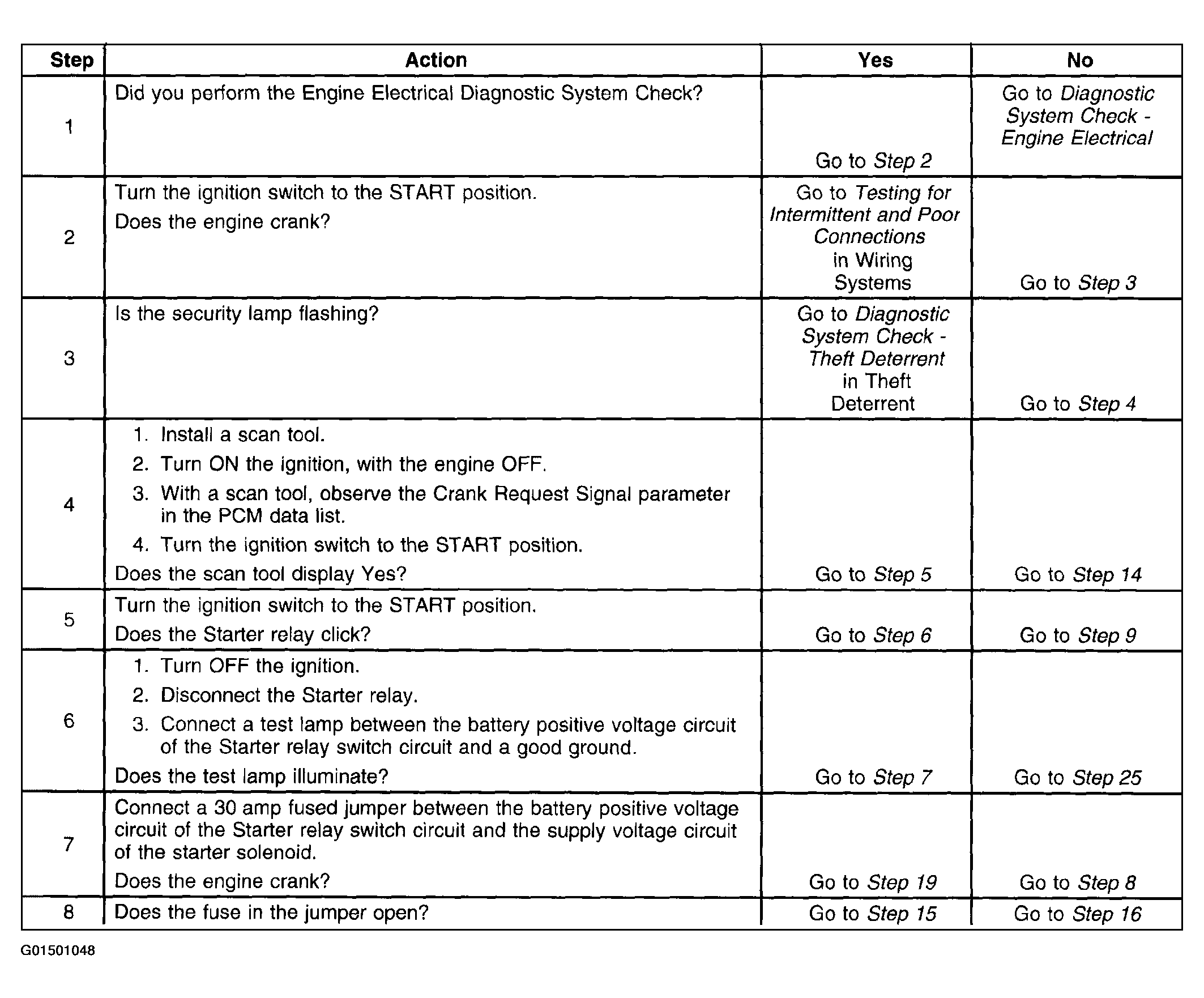

Fig 1: Starter Solenoid Does Not Click Diagnosis (Steps 1-8)
Courtesy of GENERAL MOTORS CORP.

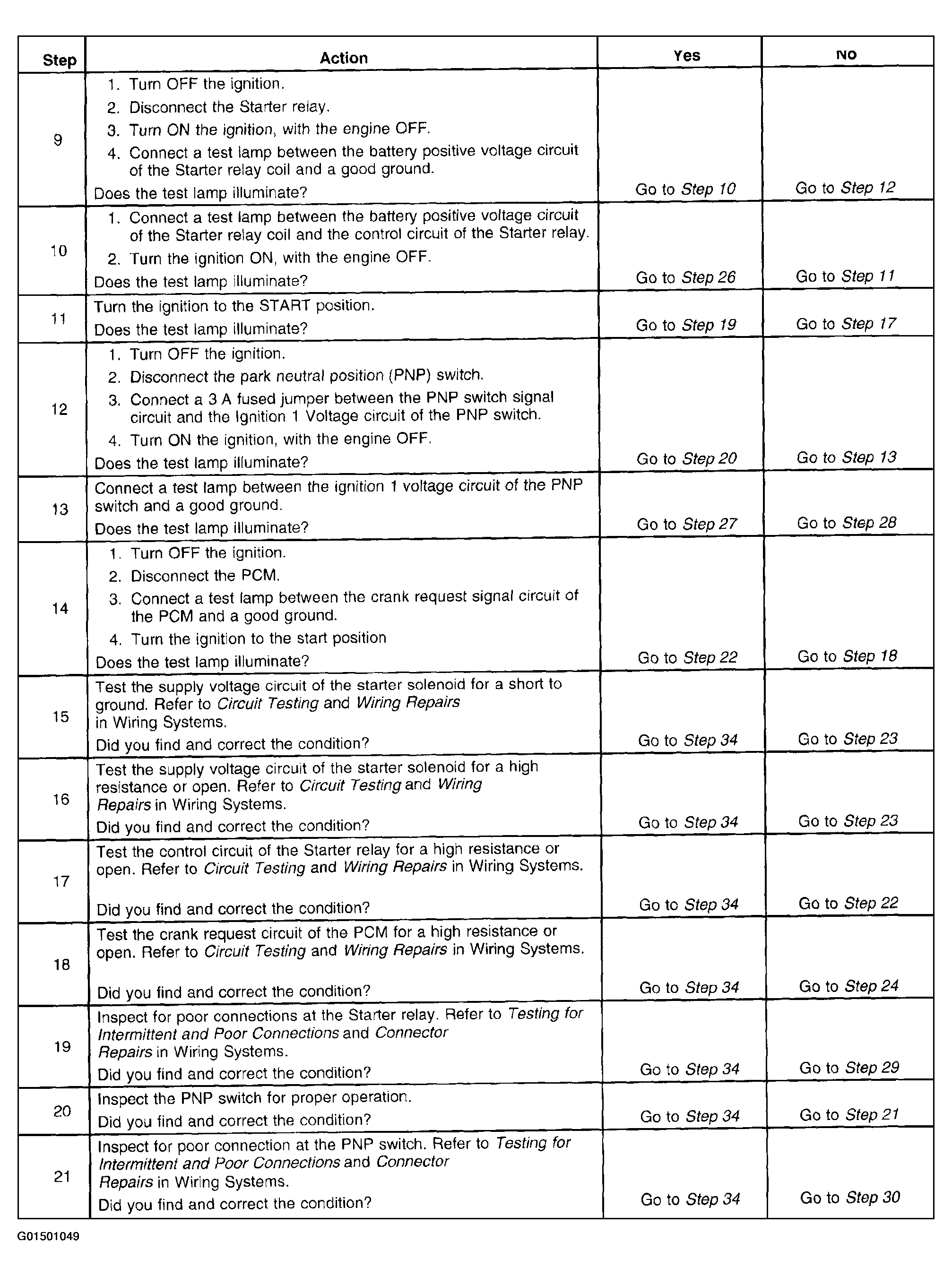

Fig 2: Starter Solenoid Does Not Click Diagnosis (Steps 9-21)
Courtesy of GENERAL MOTORS CORP.

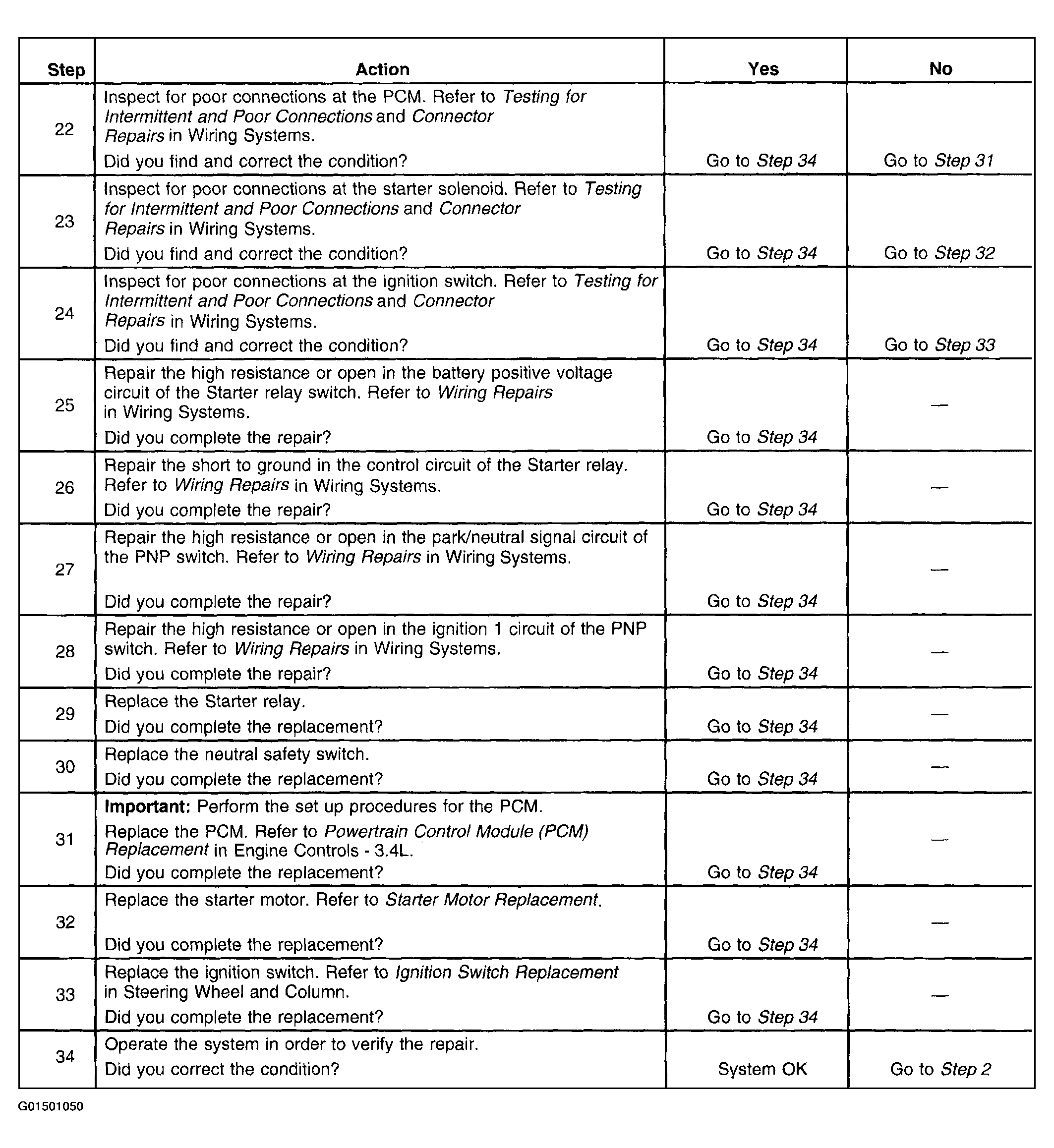

Fig 3: Starter Solenoid Does Not Click Diagnosis (Steps 22-34)
