Conditions for Clearing the MIL/DTC

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

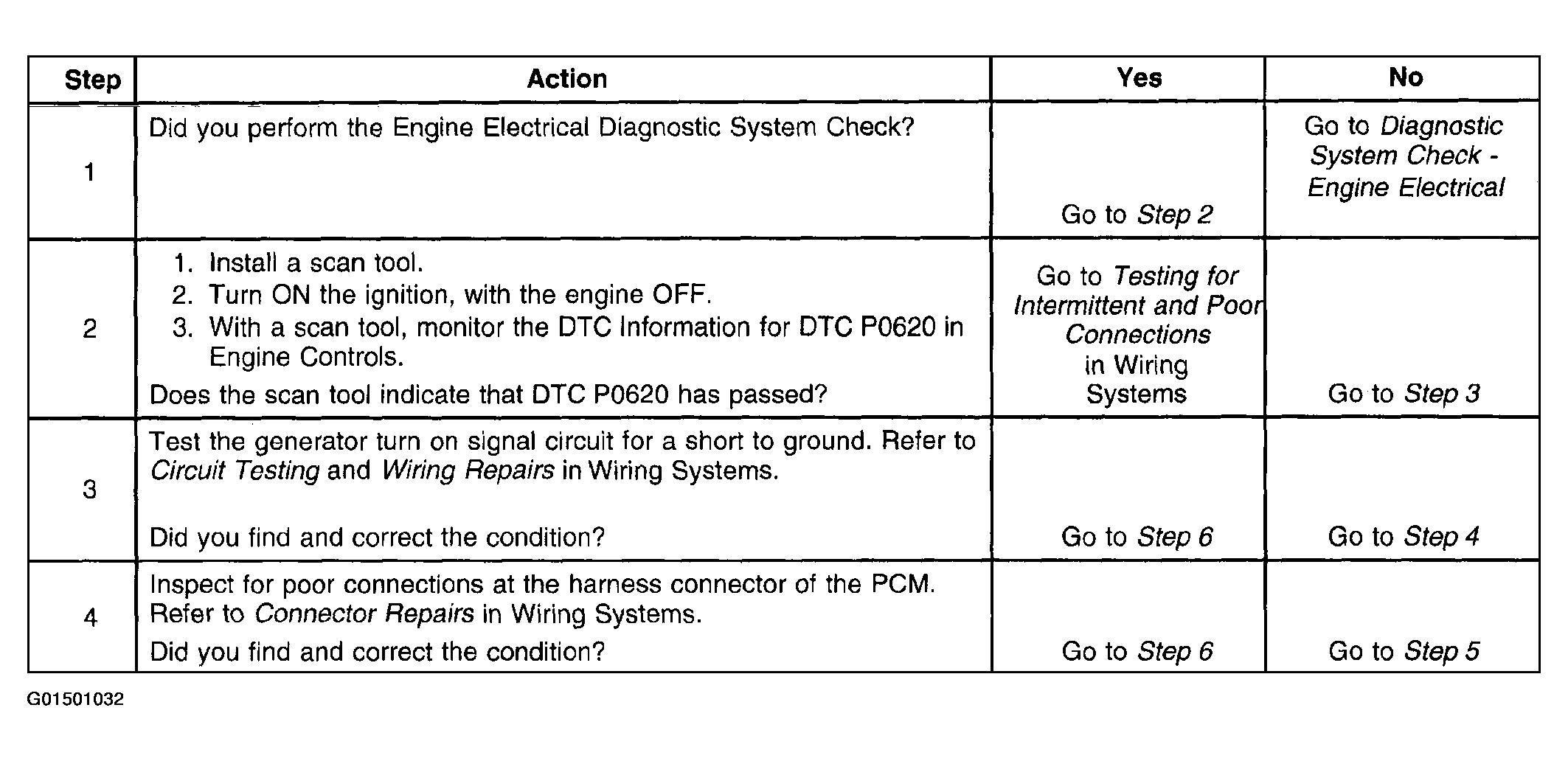

Fig 1: DTC 0620 Diagnosis (Steps 1-4)
G01501032Courtesy of GENERAL MOTORS CORP.

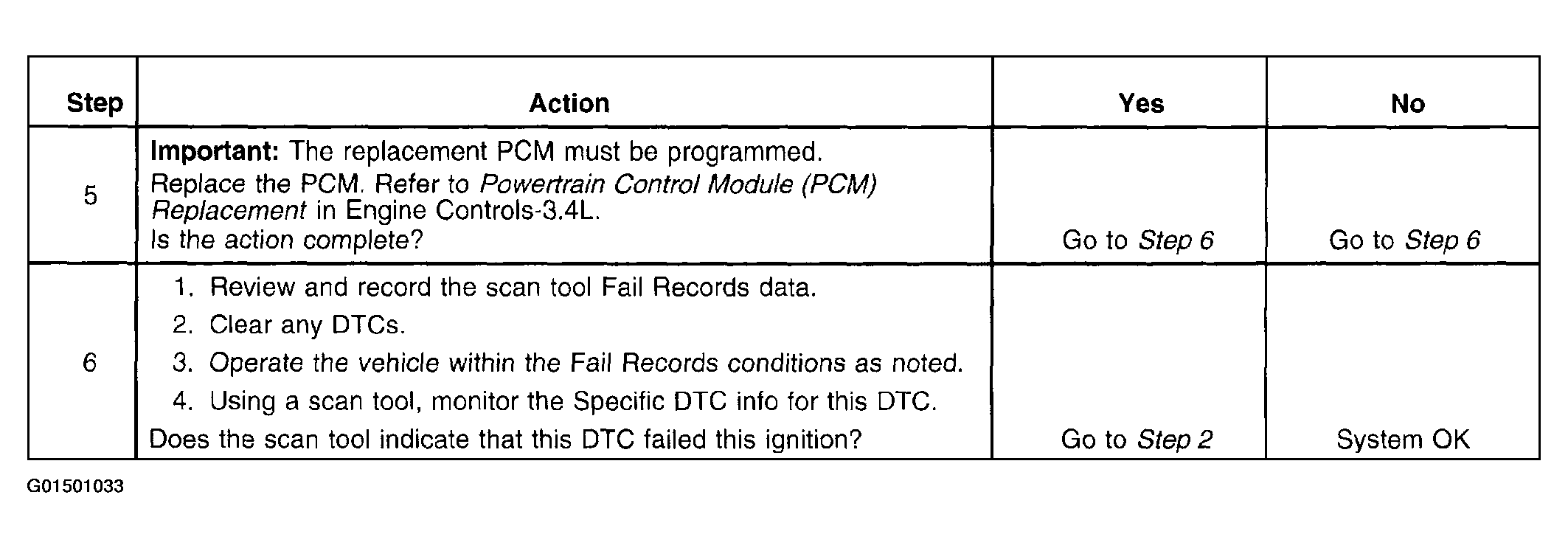

Fig 2: DTC 0620 Diagnosis (Steps 5-6)
G01501033Courtesy of GENERAL MOTORS CORP.
