Charging System Test

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

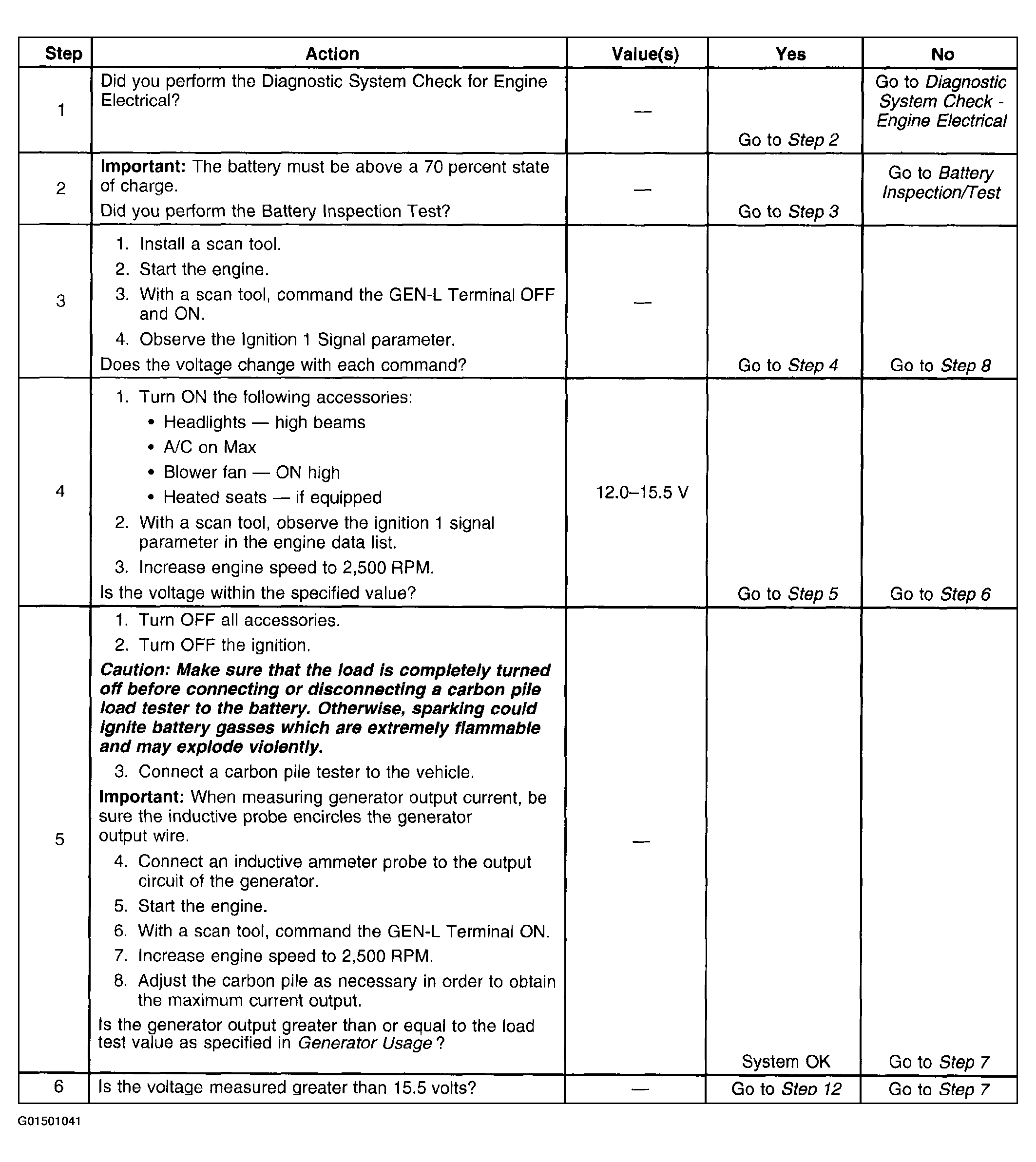

Fig 1: Charging System Test (Steps 1-6)

Courtesy of GENERAL MOTORS CORP.

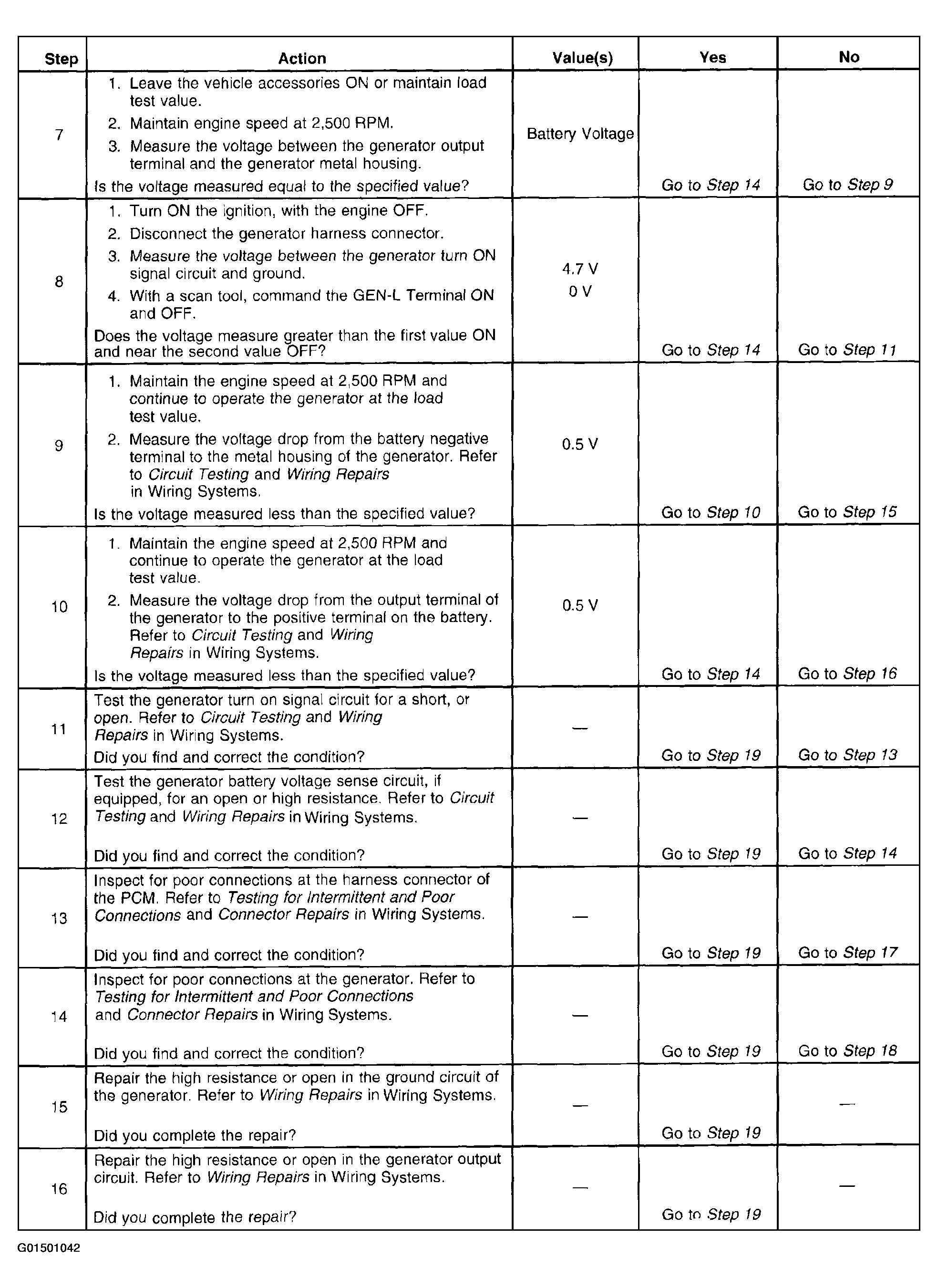

Fig 2: Charging System Test (Steps 7-16)

Courtesy of GENERAL MOTORS CORP.

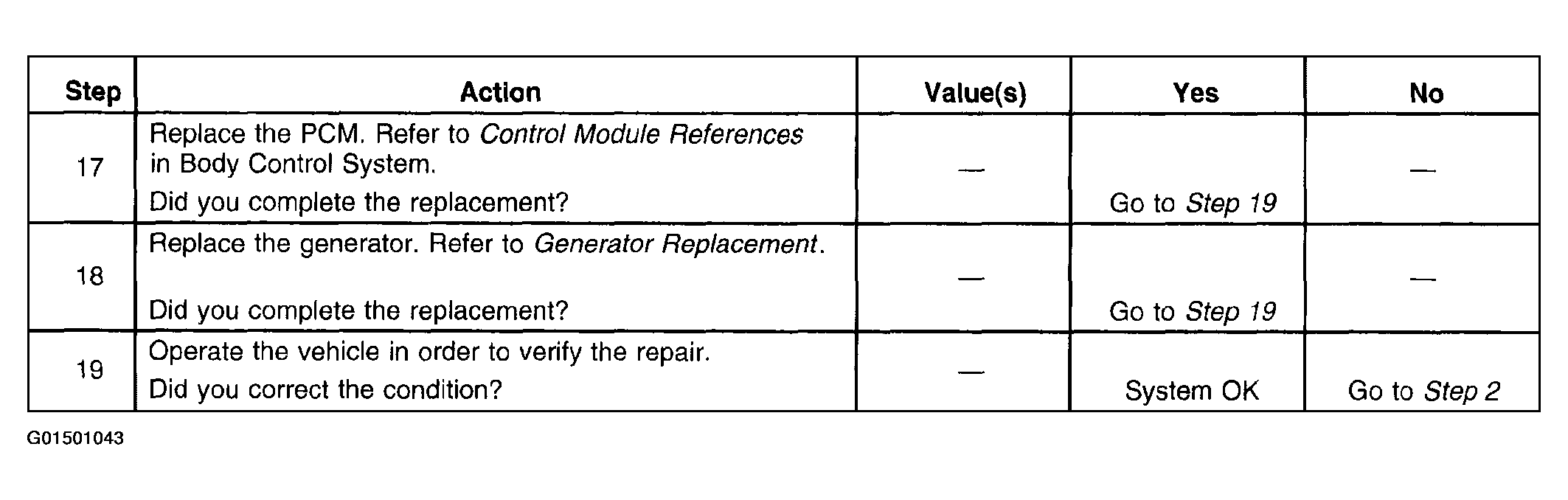

Fig 3: Charging System Test (Steps 17-19)

Courtesy of GENERAL MOTORS CORP.
