Load Shed System Description and Operation: Load-Shed

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

This vehicle uses the following load-shed actions:

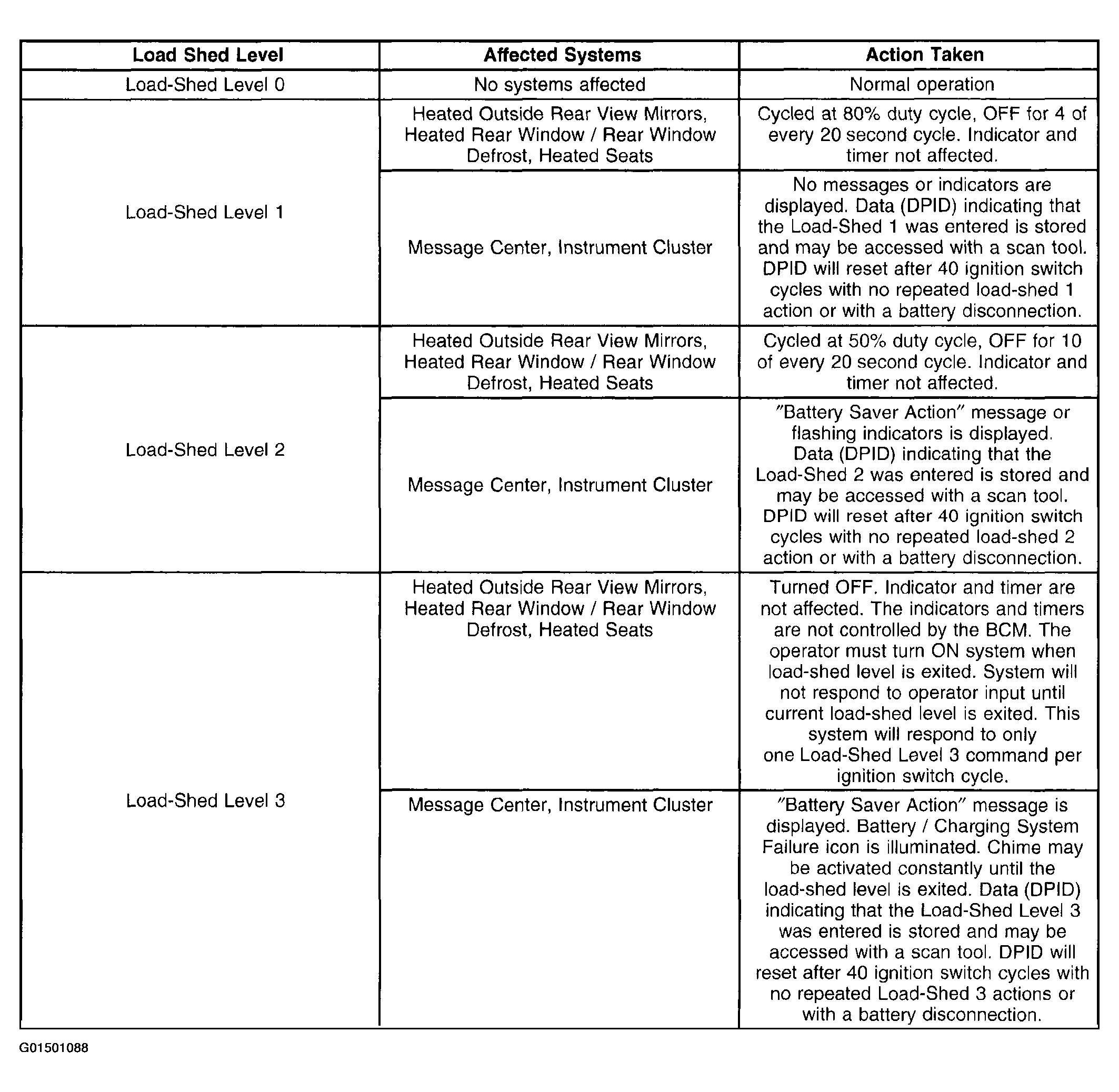

Fig 1: Load Shed Level Table

Courtesy of GENERAL MOTORS CORP.
