Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the stabilizer shaft link bolt and nut.
  3. Use a pry bar in order remove the stabilizer shaft link insulators and the spacer.

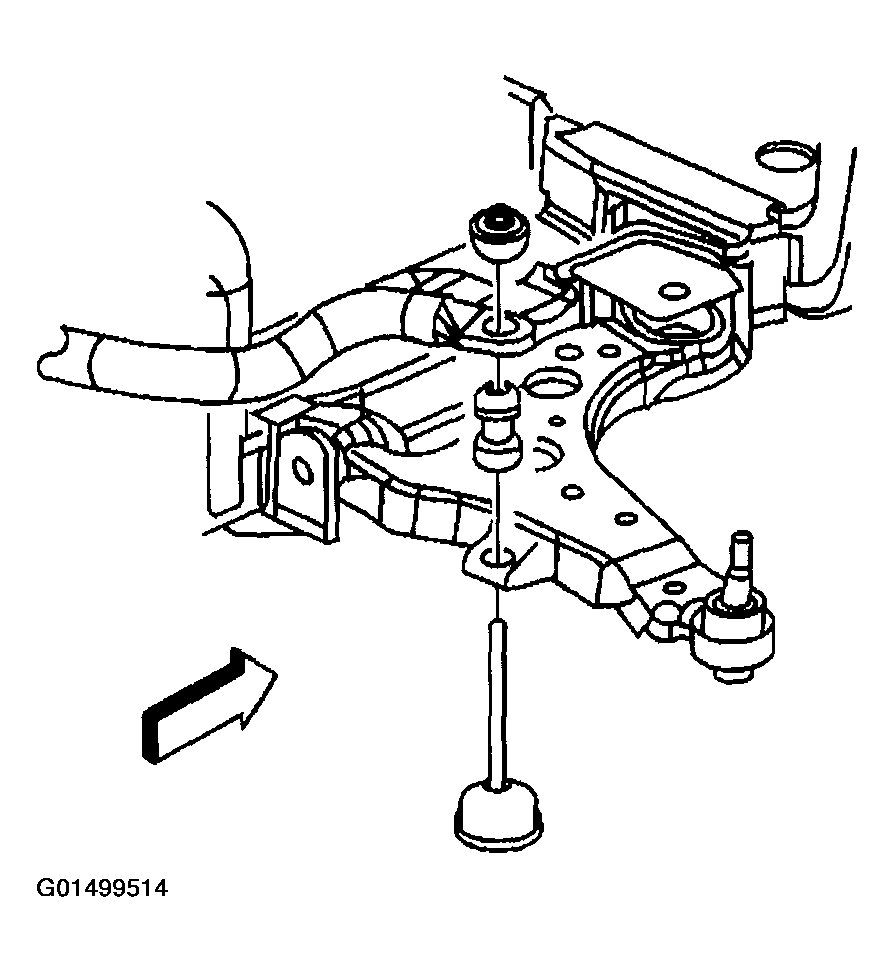

    Fig 1: Removing Stabilizer Shaft Link
    G01499514Courtesy of GENERAL MOTORS CORP.
