Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Move (turn) the tires in order to access the stabilizer shaft insulator brackets.
  3. Remove the side stabilizer shaft insulator bracket bolts.
  4. Remove the stabilizer shaft insulator brackets.
  5. Use a pry bar in order to remove the stabilizer shaft insulators (4).

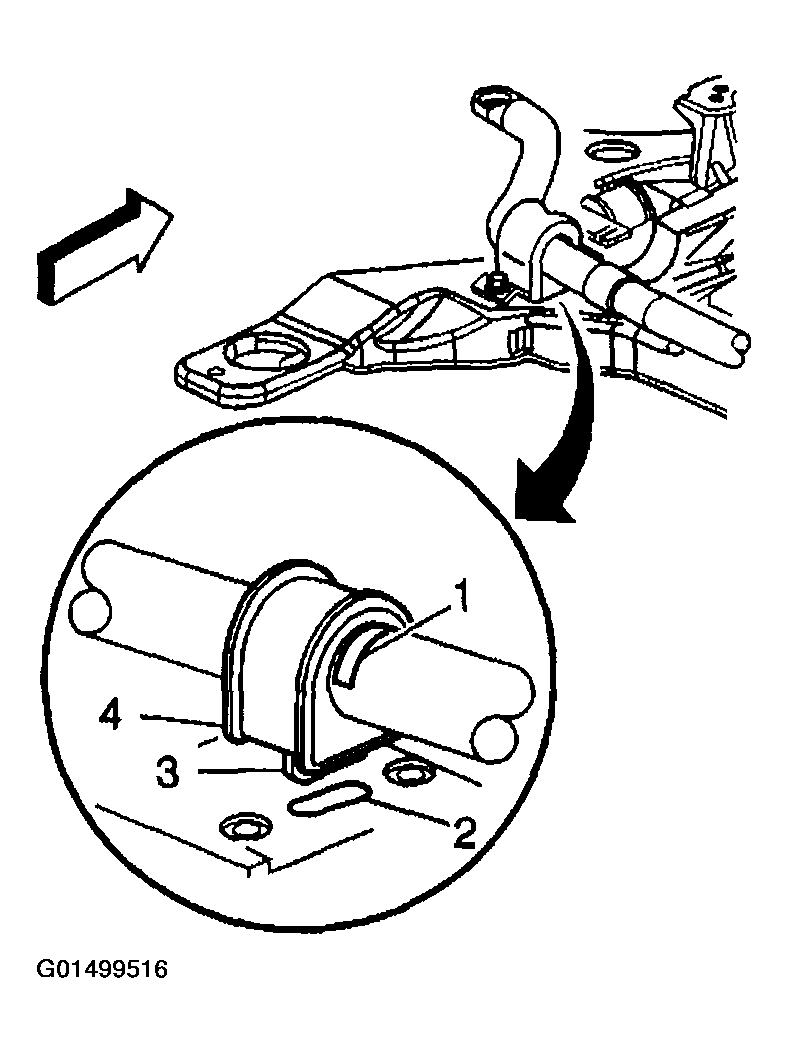

    Fig 1: Removing Stabilizer Shaft Insulator
    G01499516Courtesy of GENERAL MOTORS CORP.
