Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the push-in retainers from the hood rear weatherstrip.
  3. Remove the hood rear weatherstrip from under the air inlet grille.
  4. Remove the hood rear weatherstrip from the vehicle.

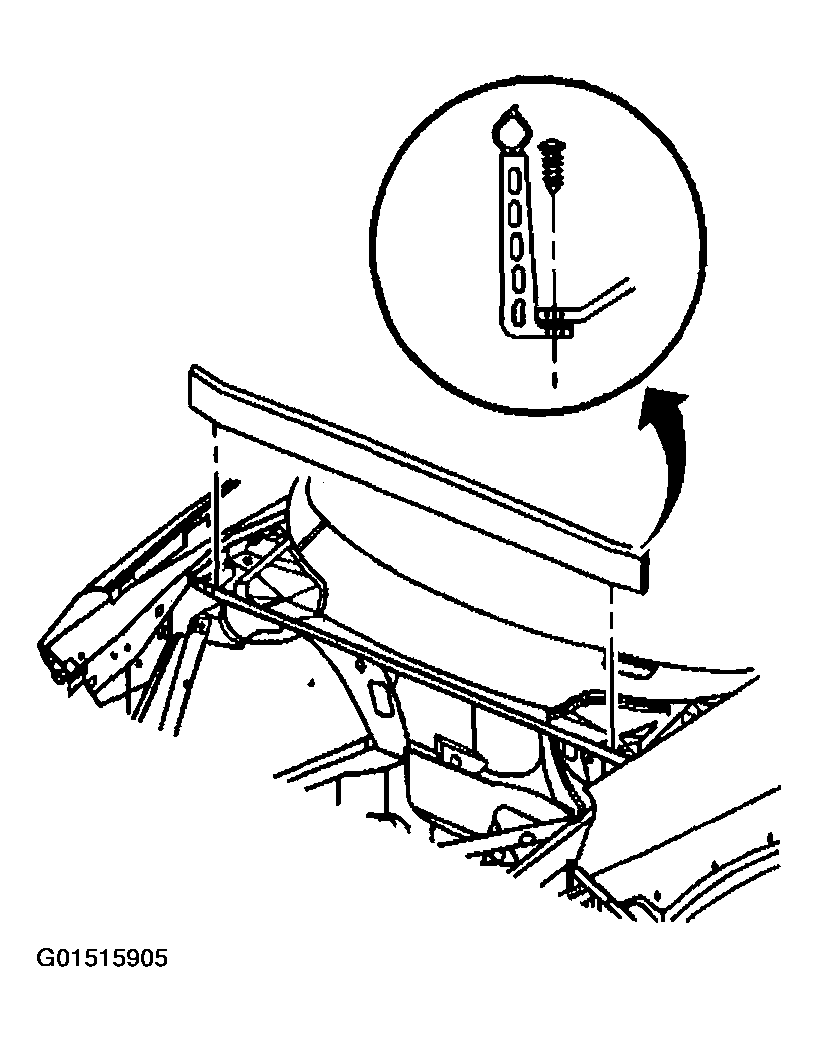

    Fig 1: Removing Hood Rear Weatherstrip From Vehicle
    G01515905Courtesy of GENERAL MOTORS CORP.
