Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

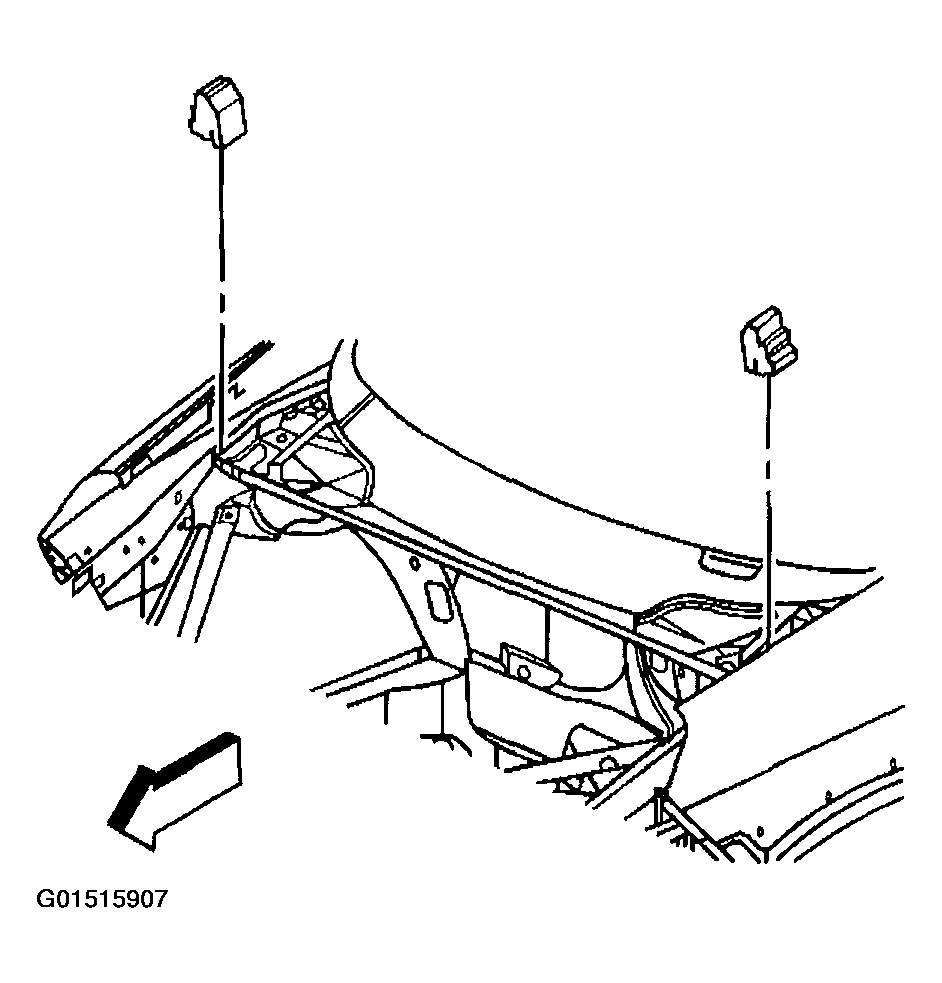

Fig 1: Removing Rear Side Hood Seal From Vehicle
G01515907Courtesy of GENERAL MOTORS CORP.
  1. Remove the protective backing paper from the adhesive on the rear side hood seal.
  2. Install the rear side hood seal to the pinch-weld flange and motor compartment flange.
  3. Press the side rear hood seal onto the pinch-weld flange and motor compartment flange until the adhesive is fully adhered.
  4. Close the hood.
    Fig 2: Installing Rear Side Hood Seal To Vehicle
    G01515908Courtesy of GENERAL MOTORS CORP.
