Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood.
Remove the hood insulator push-in retainers using J 38778.

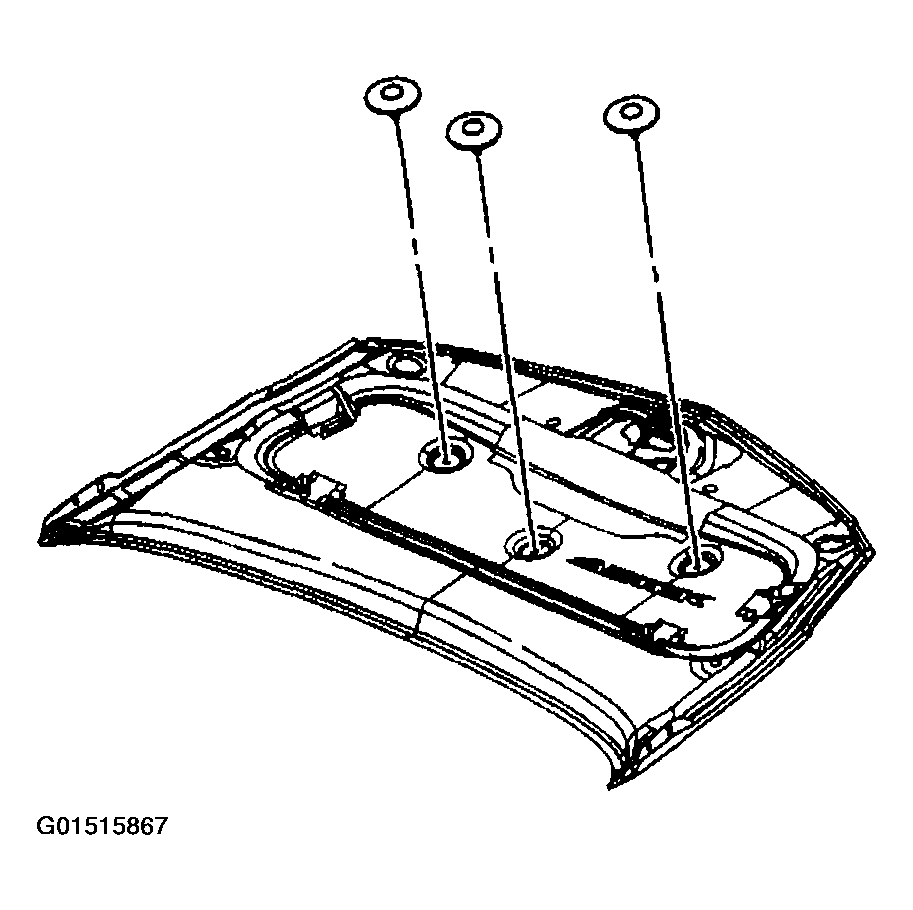

Fig 1: Removing Hood Insulator Push-In Retainers
Courtesy of GENERAL MOTORS CORP.
Remove the hood insulator from the hood.

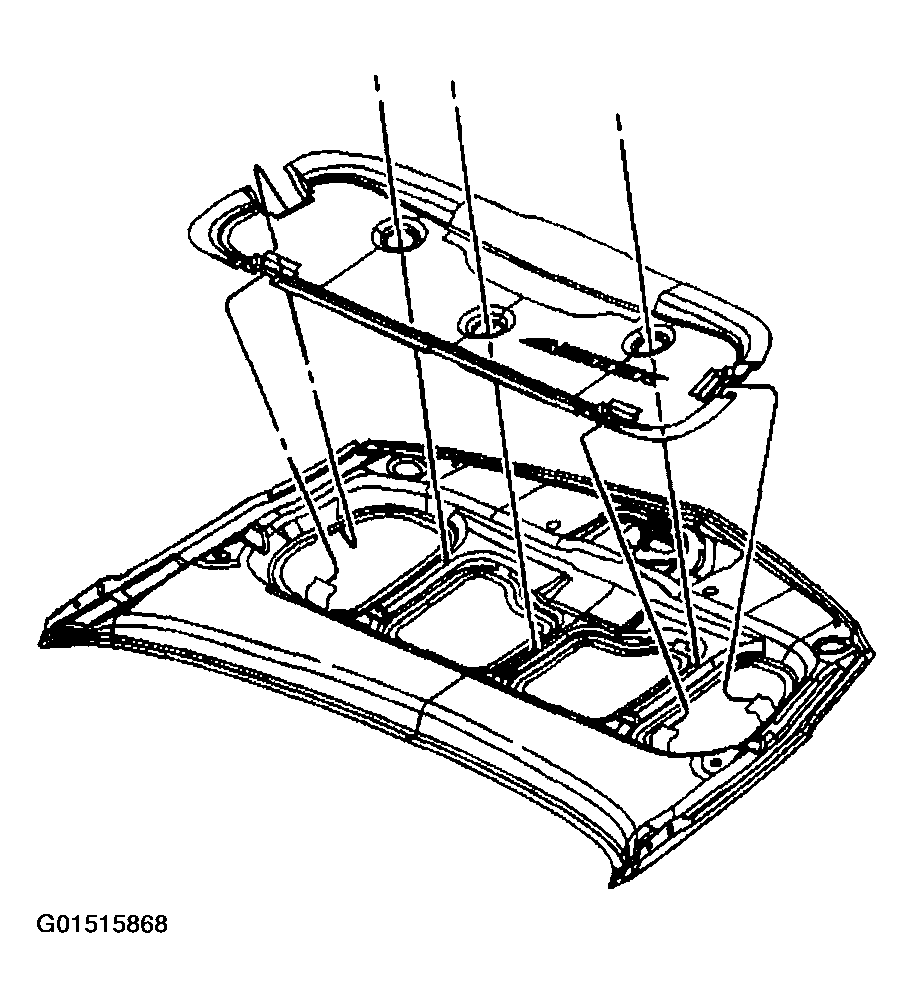

Fig 2: Removing Hood Insulator From Hood
Courtesy of GENERAL MOTORS CORP.
