Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Remove the hood. Refer to HOOD REPLACEMENT  .
  2. Remove the hood rear side seal. Refer to SEAL REPLACEMENT - HOOD REAR SIDE  .
  3. Remove the hood assist rod. Refer to ASSIST ROD REPLACEMENT - HOOD  .
  4. Remove the hood hinge to fender bolts.
  5. Remove the hood hinge from the fender.

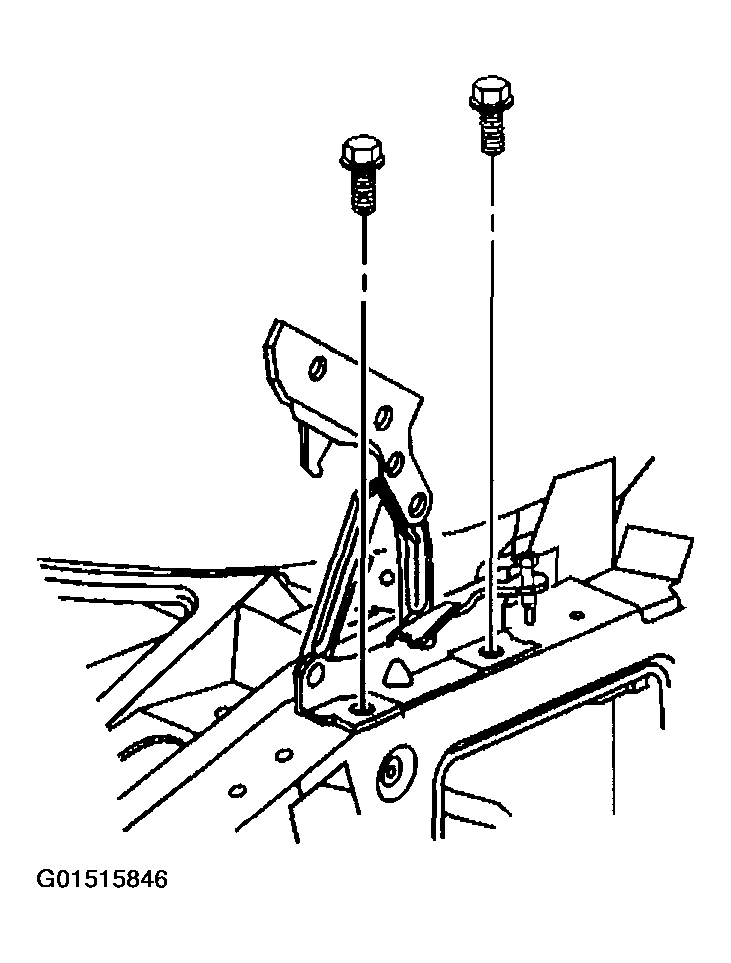

    Fig 1: Removing Hood Hinge From Fender
    G01515846Courtesy of GENERAL MOTORS CORP.
