Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT  .
  2. Remove the front fender insulator from the stud, by pulling off.
  3. Remove the front fender insulator from the inner fender.

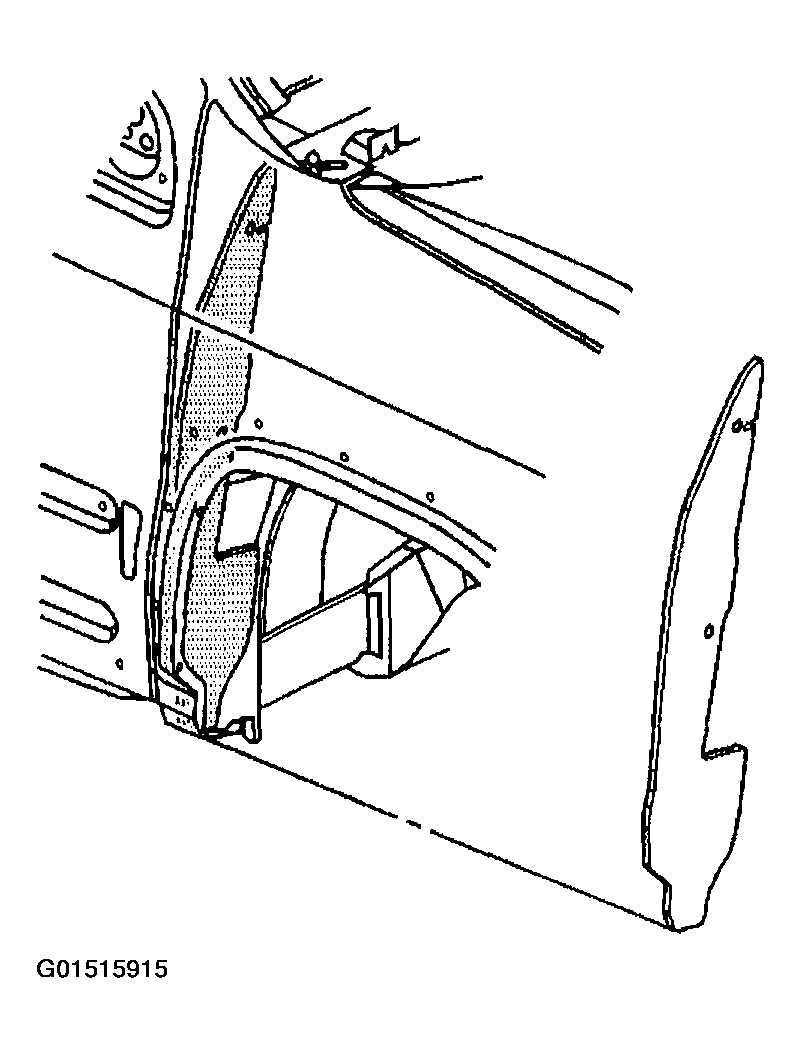

    Fig 1: Removing Front Fender Insulator From Inner Fender
    G01515915Courtesy of GENERAL MOTORS CORP.
