Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Important: The front fender insulator must be kept near the flange of the front fender wheel opening to avoid interference with the front door edge.

Install the front fender insulator to the stud in the inner fender, pressing into place until fully seated.
Install the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .

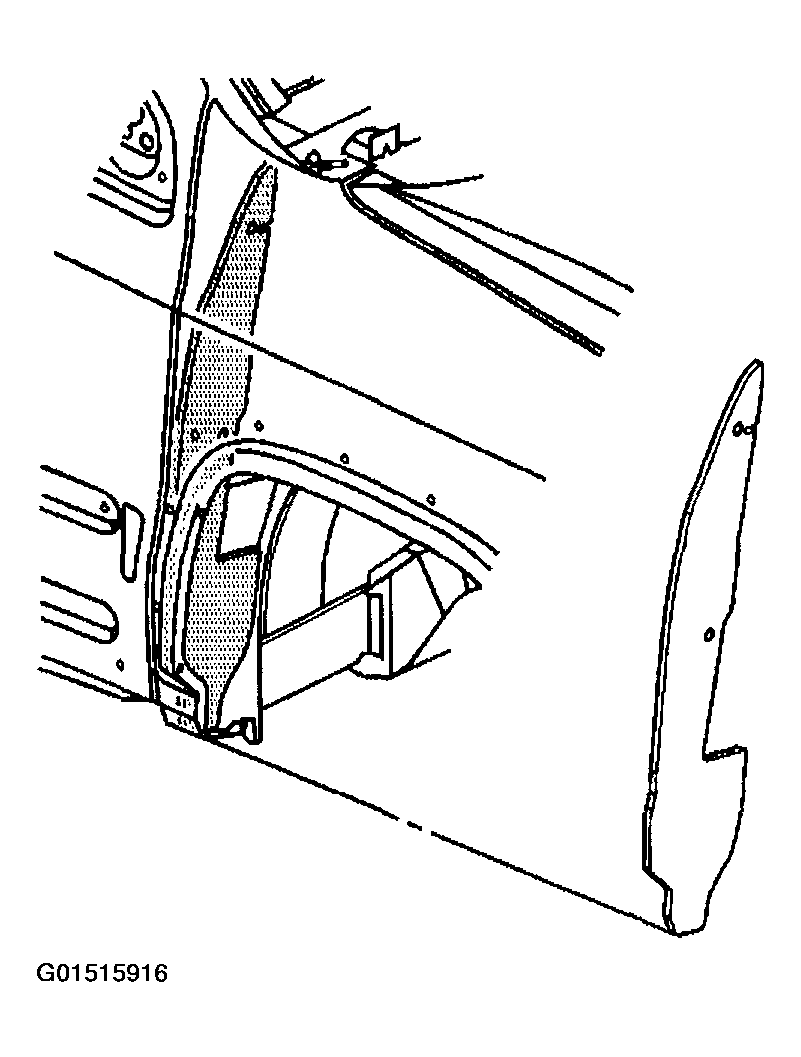

Fig 1: Installing Front Fender Insulator
Courtesy of GENERAL MOTORS CORP.
