Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front end sheet metal diagonal brace to the radiator support and to the inner fender.

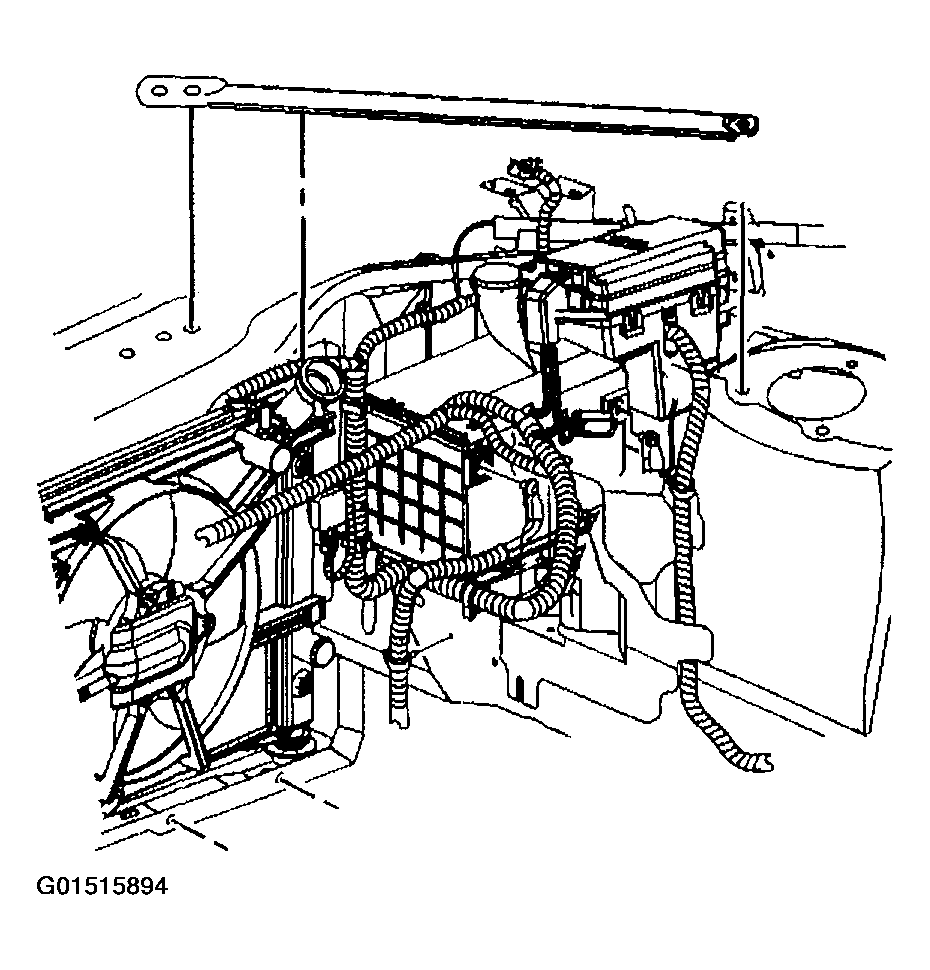

    Fig 1: Positioning Front End Sheet Metal Diagonal Brace
    G01515894Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts to the front end sheet metal diagonal brace at the radiator support.

    Tighten

    Tighten the front end sheet metal diagonal brace at radiator support bolts to 10 N.m (89 lb in).

  3. Install the bolts to the front end sheet metal diagonal brace at the inner fender.

    Tighten

    Tighten the front end sheet metal diagonal brace to the inner fender bolts to 10 N.m (89 lb in).

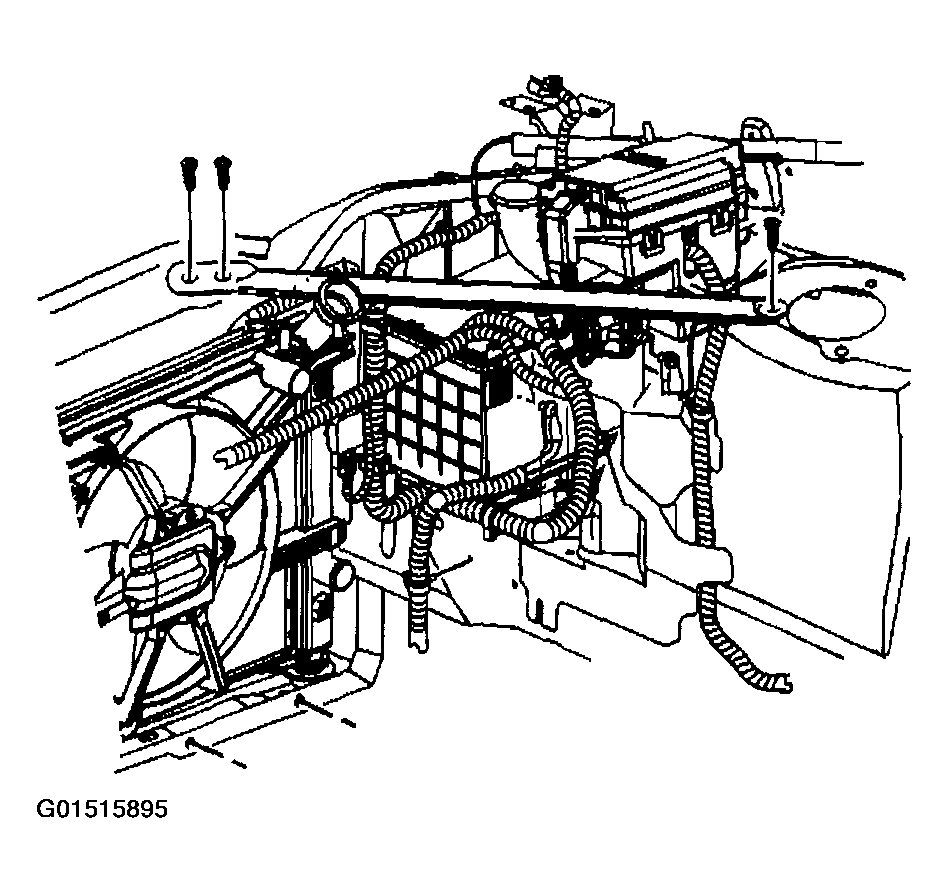

    Fig 2: Installing Front End Sheet Metal Diagonal Brace Bolts
    G01515895Courtesy of GENERAL MOTORS CORP.
  4. Reposition the underhood wiring junction block to the front fender diagonal brace. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT .
  5. Close the hood.

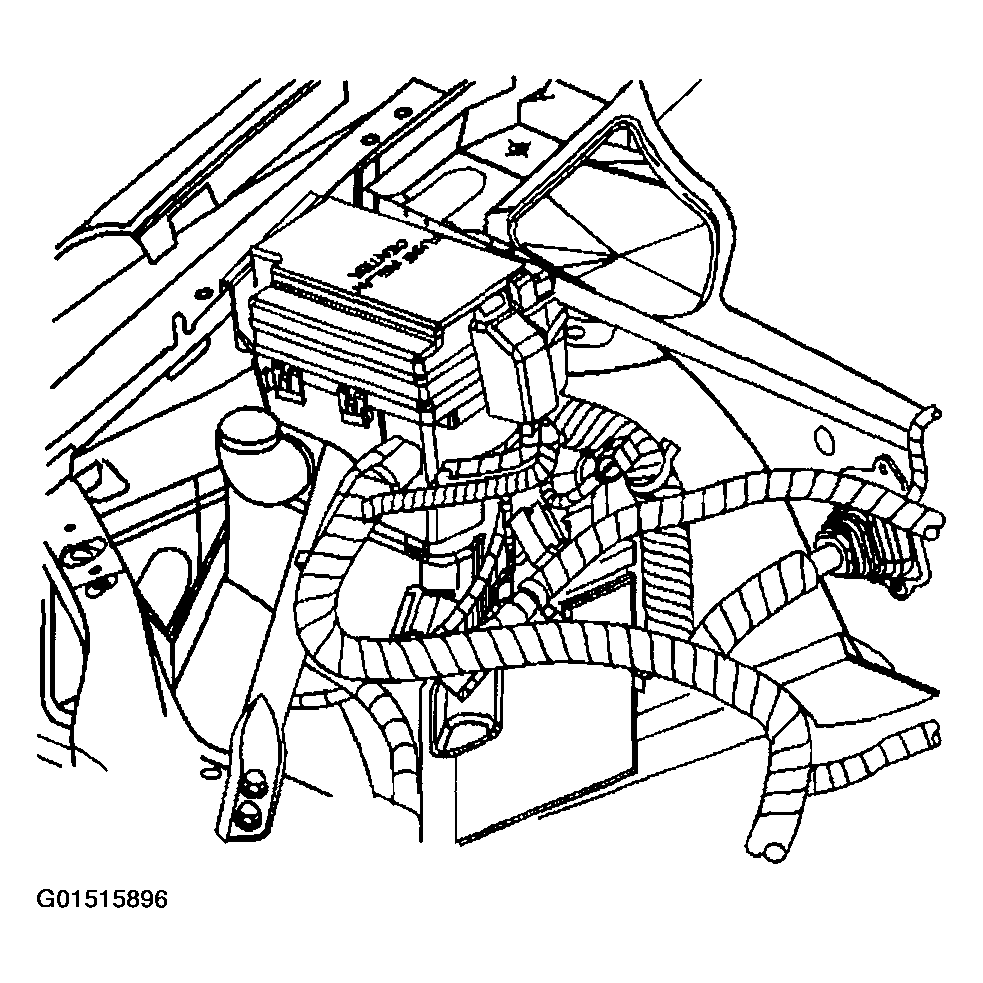

    Fig 3: Repositioning Underhood Wiring Junction Block
    G01515896Courtesy of GENERAL MOTORS CORP.
