Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the engine coolant heater harness from the front fender diagonal brace, if equipped.

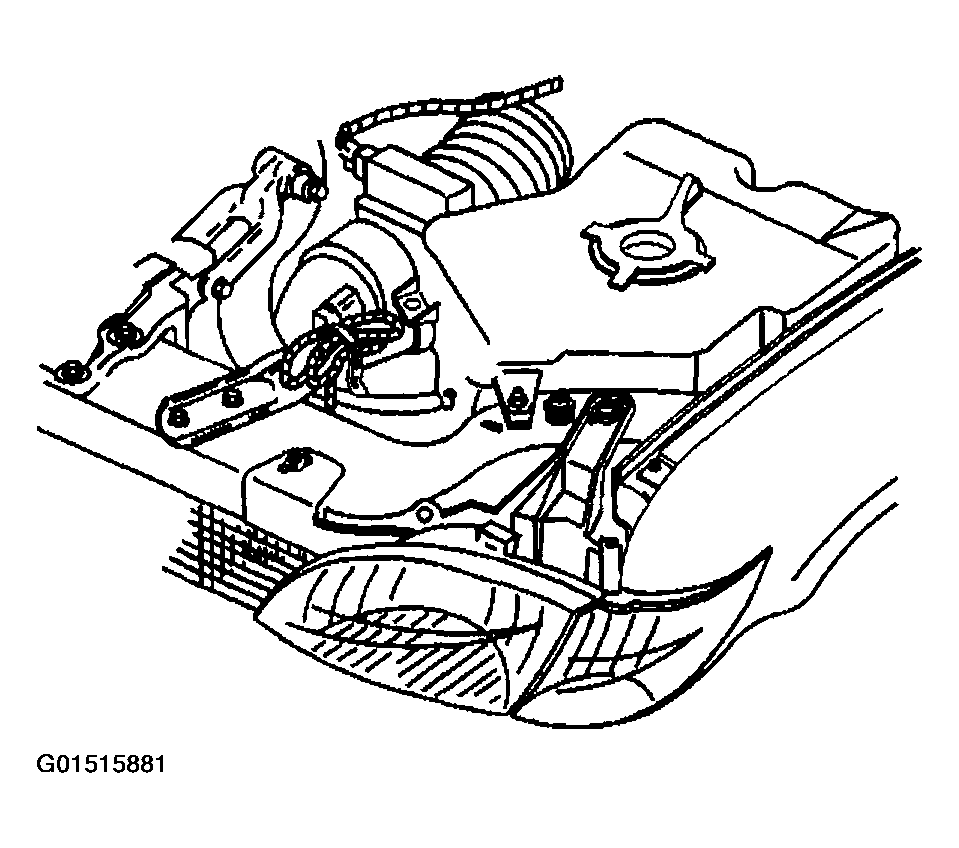

    Fig 1: Removing Engine Coolant Heater Harness From Front Fender Diagonal Brace
    G01515881Courtesy of GENERAL MOTORS CORP.
  3. Reposition the engine coolant reservoir from the front fender diagonal brace. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT .

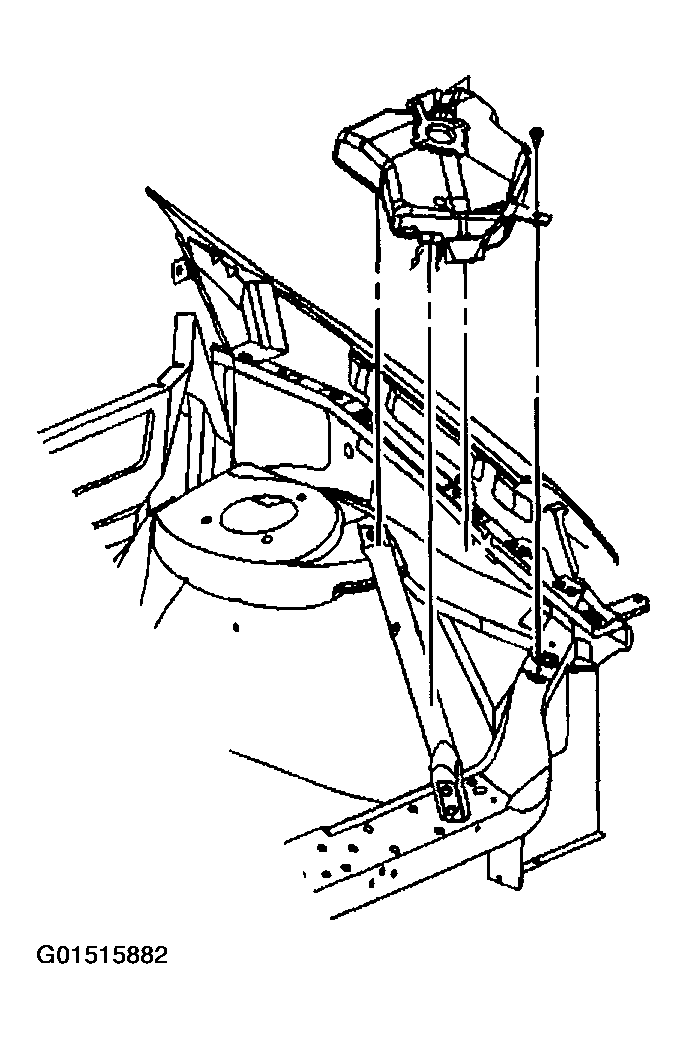

    Fig 2: Repositioning Engine Coolant Reservoir From Front Fender Diagonal Brace
    G01515882Courtesy of GENERAL MOTORS CORP.
  4. Reposition the cruise control module from the front fender diagonal brace. Refer to CRUISE CONTROL MODULE REPLACEMENT .

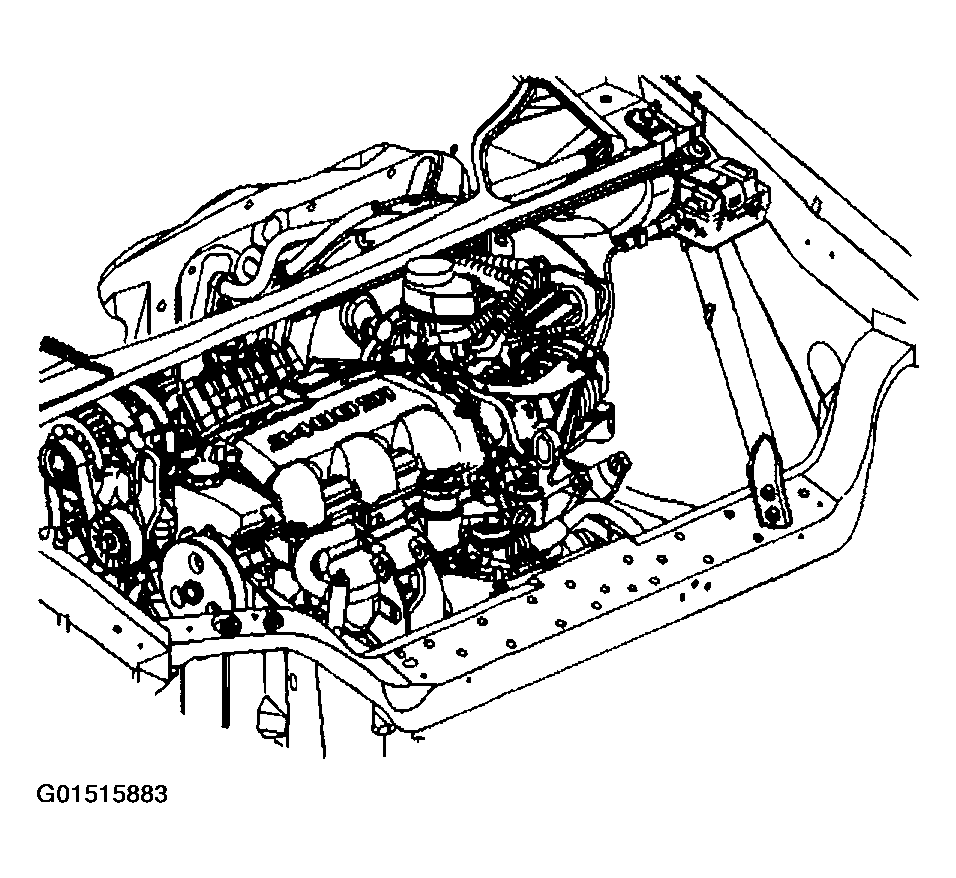

    Fig 3: Repositioning Cruise Control Module From Front Fender Diagonal Brace
    G01515883Courtesy of GENERAL MOTORS CORP.
  5. Remove the front end sheet metal diagonal brace to the inner fender bolt.
  6. Remove the front end sheet metal diagonal brace to radiator support bolts.

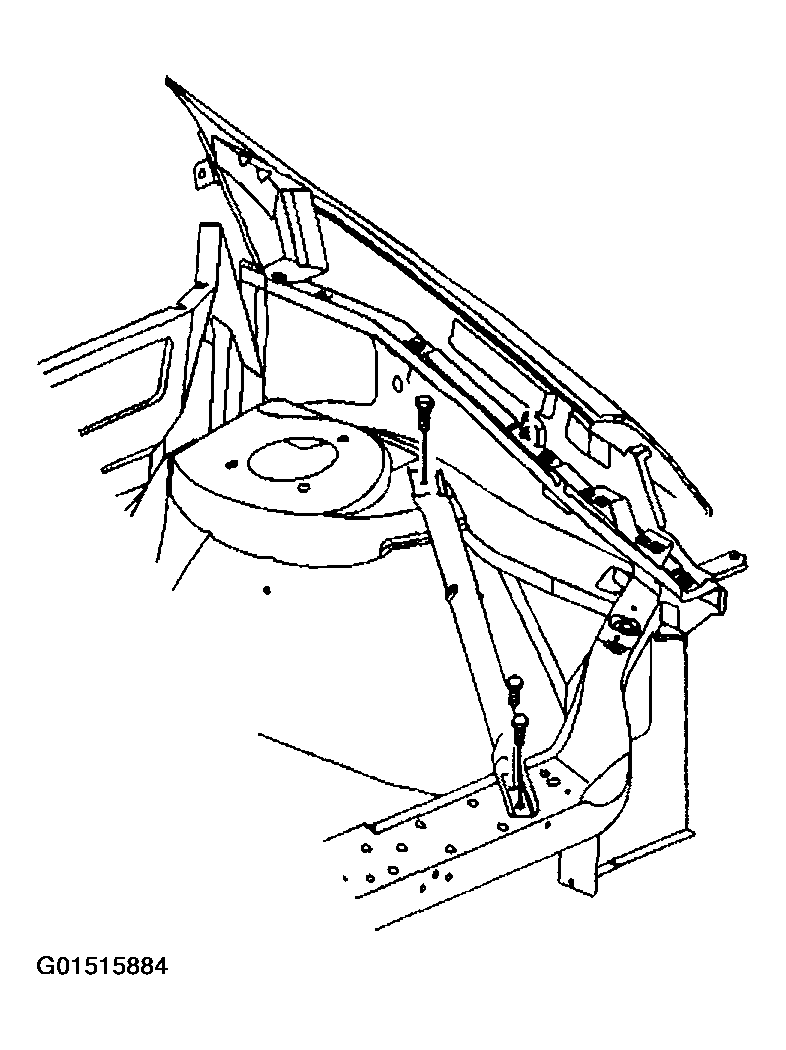

    Fig 4: Removing Front End Sheet Metal Diagonal Brace Bolts
    G01515884Courtesy of GENERAL MOTORS CORP.
  7. Remove the front end sheet metal diagonal brace.

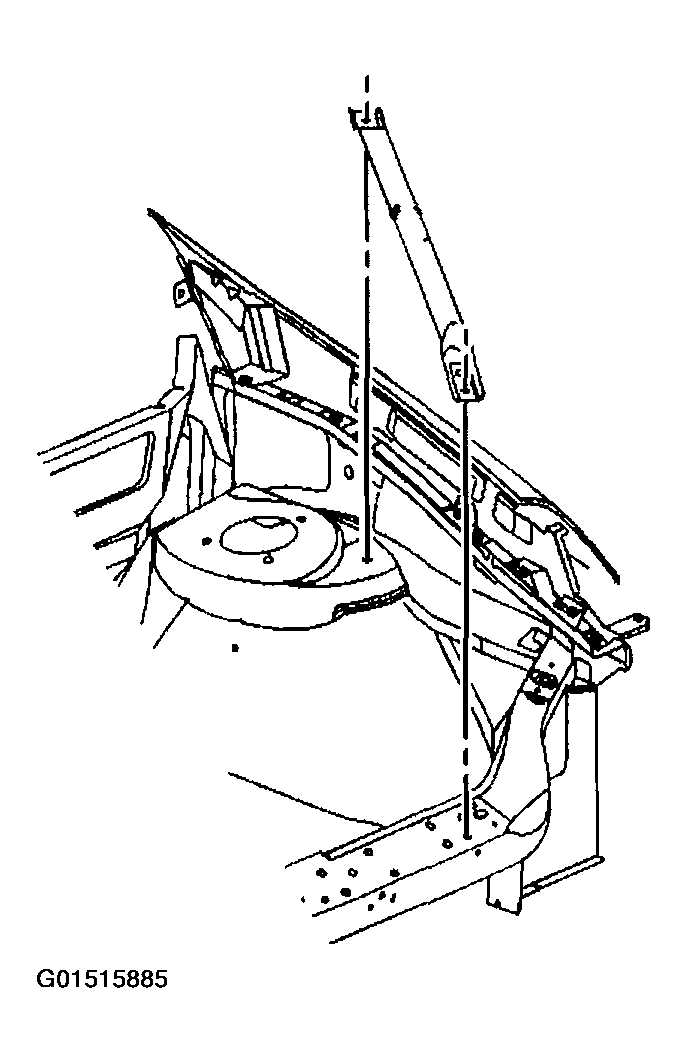

    Fig 5: Removing Front End Sheet Metal Diagonal Brace
    G01515885Courtesy of GENERAL MOTORS CORP.
