Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Open and support the hood.
Lift up the retainer clips on the assist rod using a small flat-bladed tool.

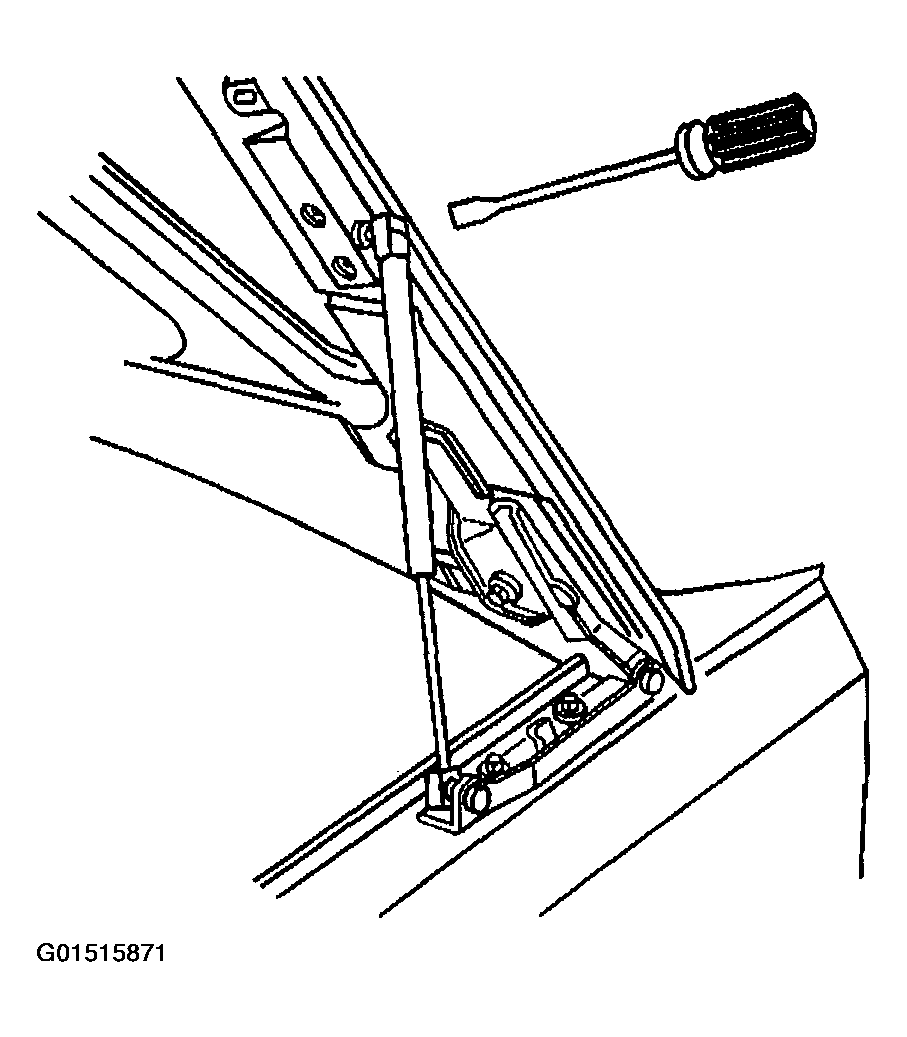

Fig 1: Lifting Retainer Clips On Assist Rod
Courtesy of GENERAL MOTORS CORP.
Pull the upper end of the assist rod from the ball joint on the hood.
Pull the lower end of the assist rod from the ball joint on the lower hood hinge.

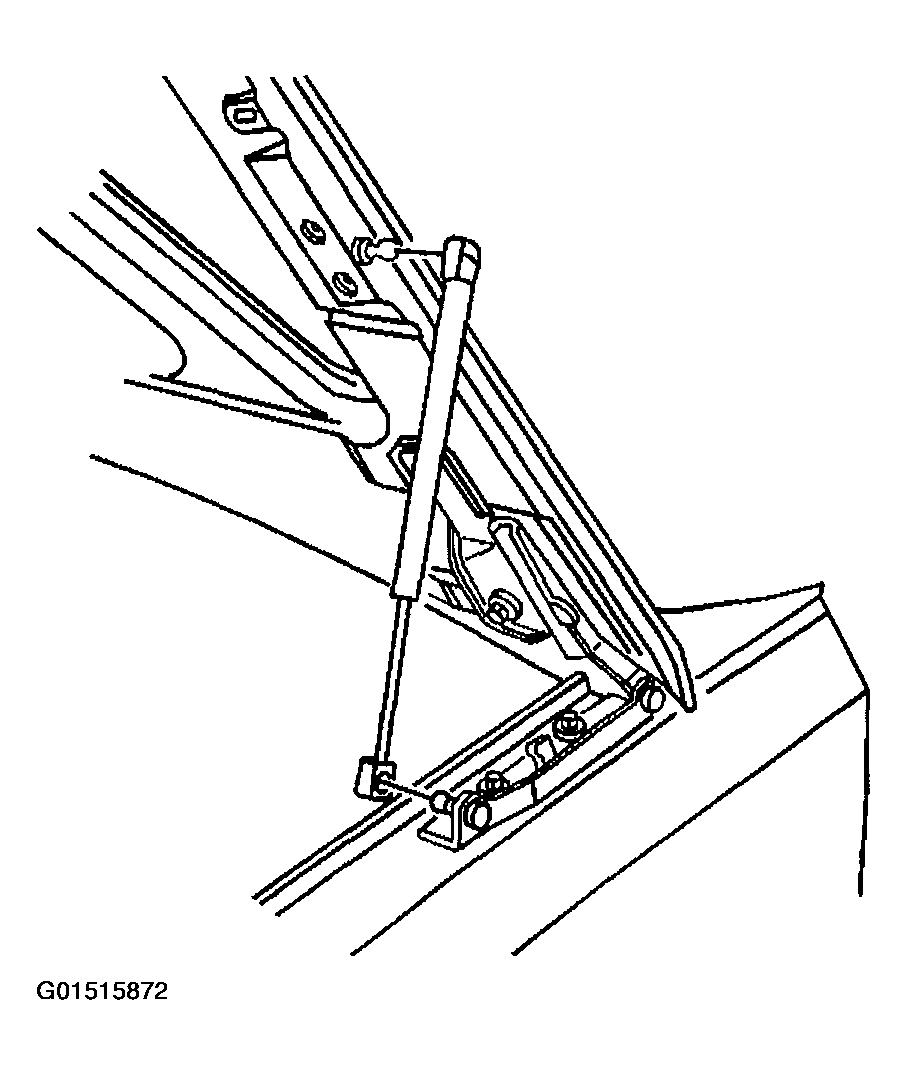

Fig 2: Pulling Upper And Lower End Of Assist Rod From Ball Joint
Courtesy of GENERAL MOTORS CORP.
