Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the windshield wiper arms. Refer to WIPER ARM REPLACEMENT .
  3. Reposition the windshield wiper washer hose from the air inlet grille.

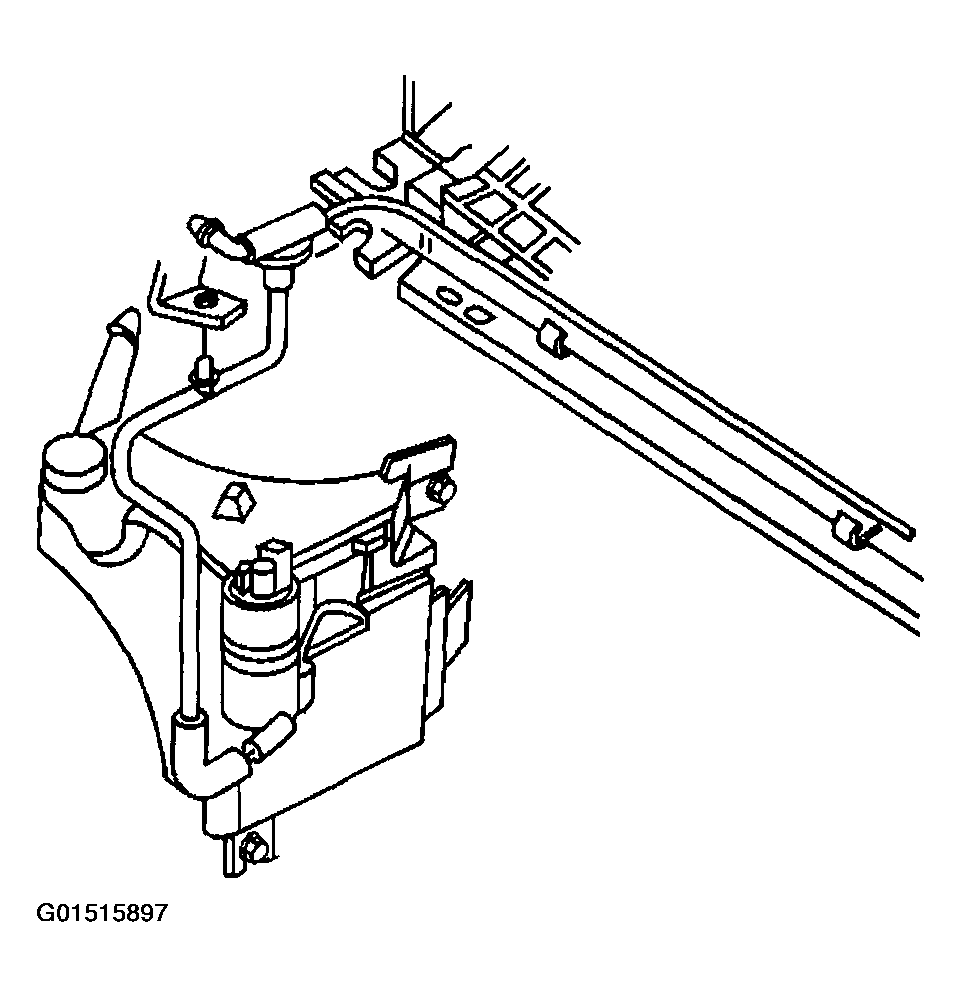

    Fig 1: Repositioning Windshield Wiper Washer Hose From Air Inlet Grille
    G01515897Courtesy of GENERAL MOTORS CORP.
  4. Remove the push-in retainers from the air inlet grille, using the J 38778.

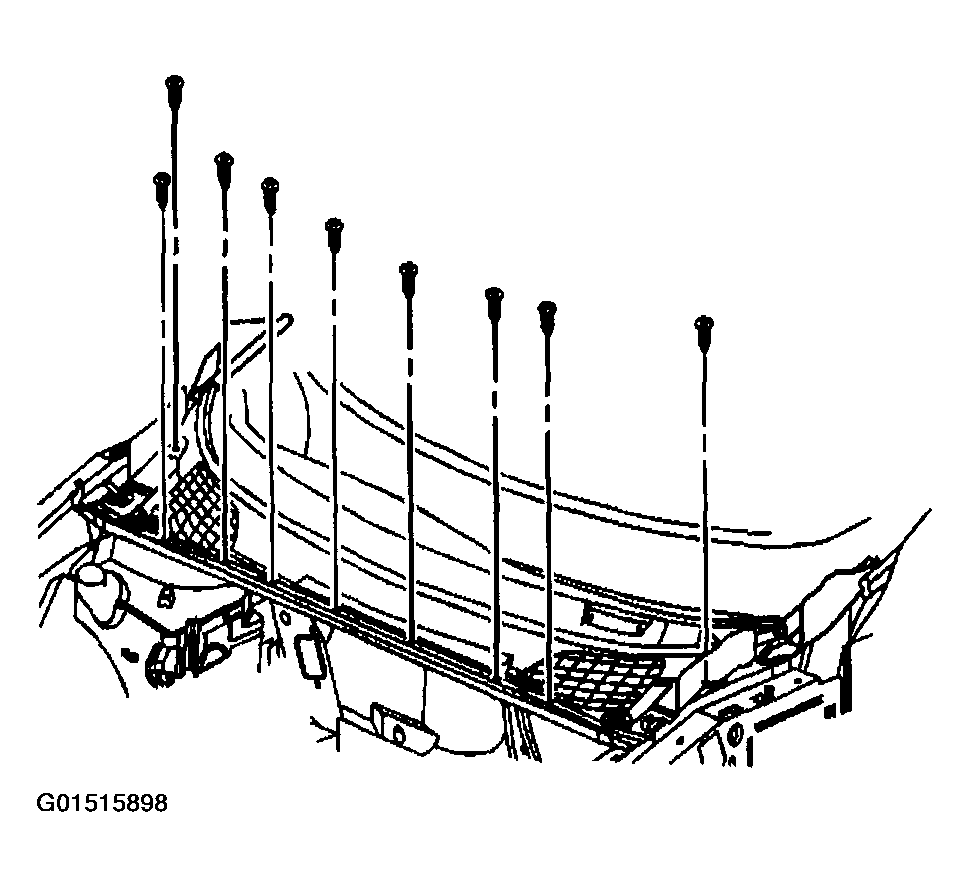

    Fig 2: Removing Push-In Retainers From Air Inlet Grille
    G01515898Courtesy of GENERAL MOTORS CORP.
  5. Remove the air inlet grille extensions from the air inlet grille at the windshield.

    Pull up and out in order to release the retainers on the air inlet grille extensions.

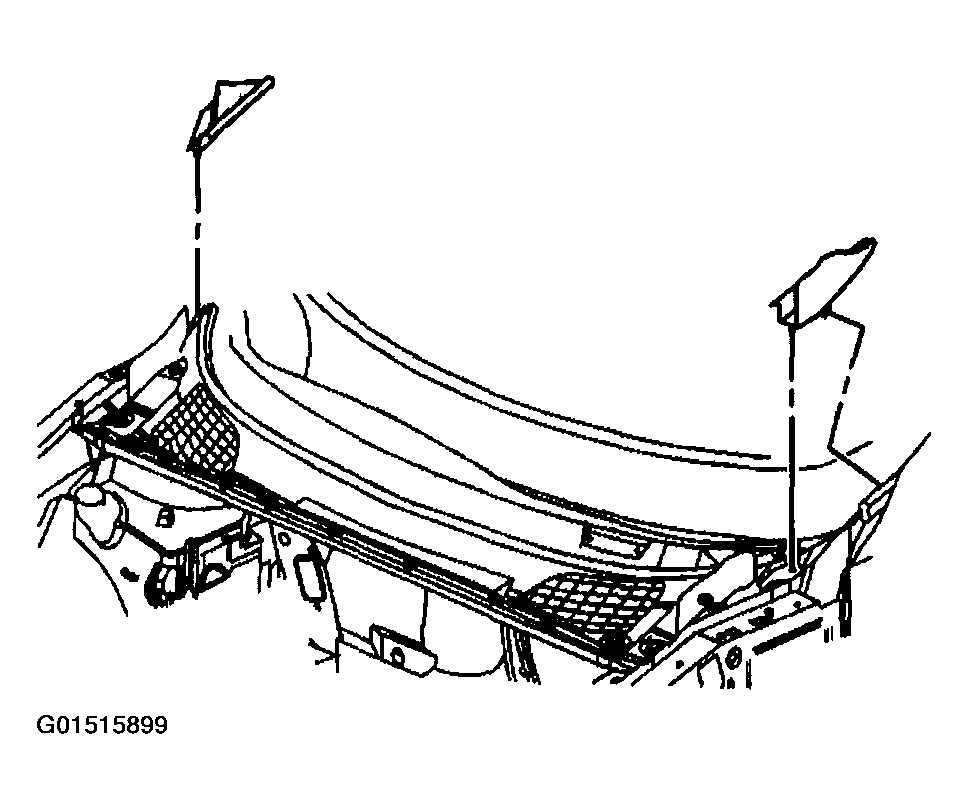

    Fig 3: Removing Air Inlet Grille Extensions
    G01515899Courtesy of GENERAL MOTORS CORP.
  6. Remove the air inlet grille from the vehicle.

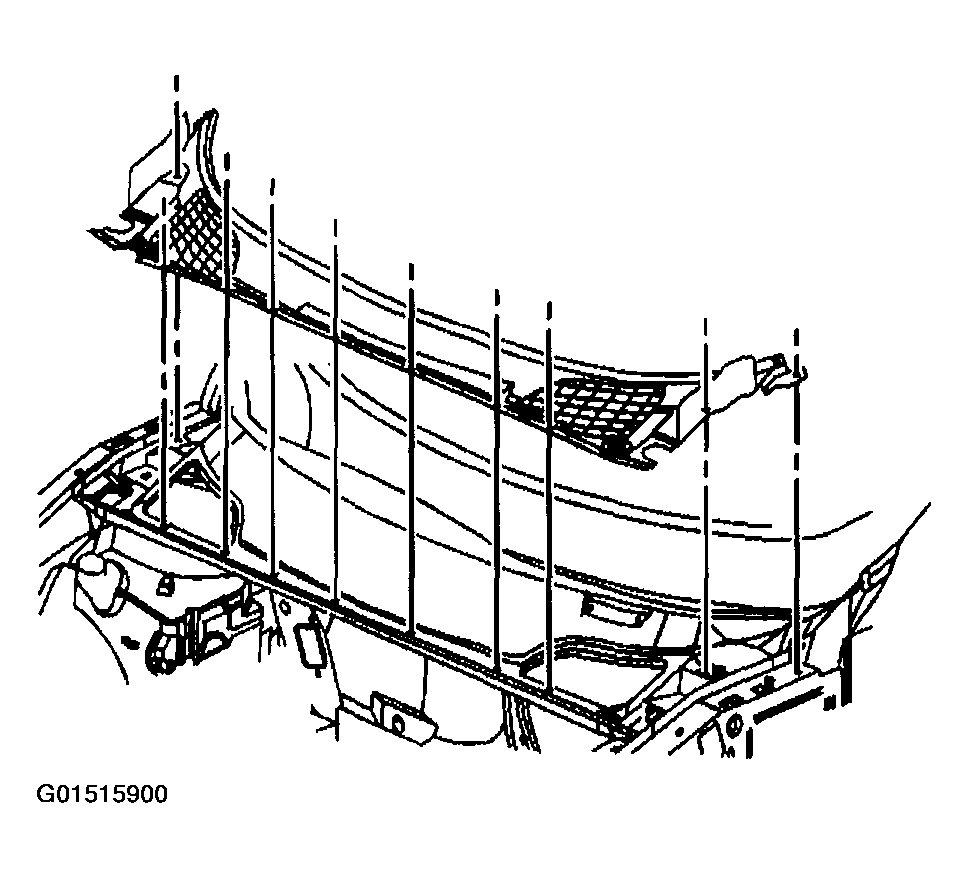

    Fig 4: Removing Air Inlet Grille From Vehicle
    G01515900Courtesy of GENERAL MOTORS CORP.
