Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Important: Inspect the position of the air inlet seal to the windshield. If not seated properly, reposition the air inlet grille as required.

Position the air inlet grille to the vehicle.

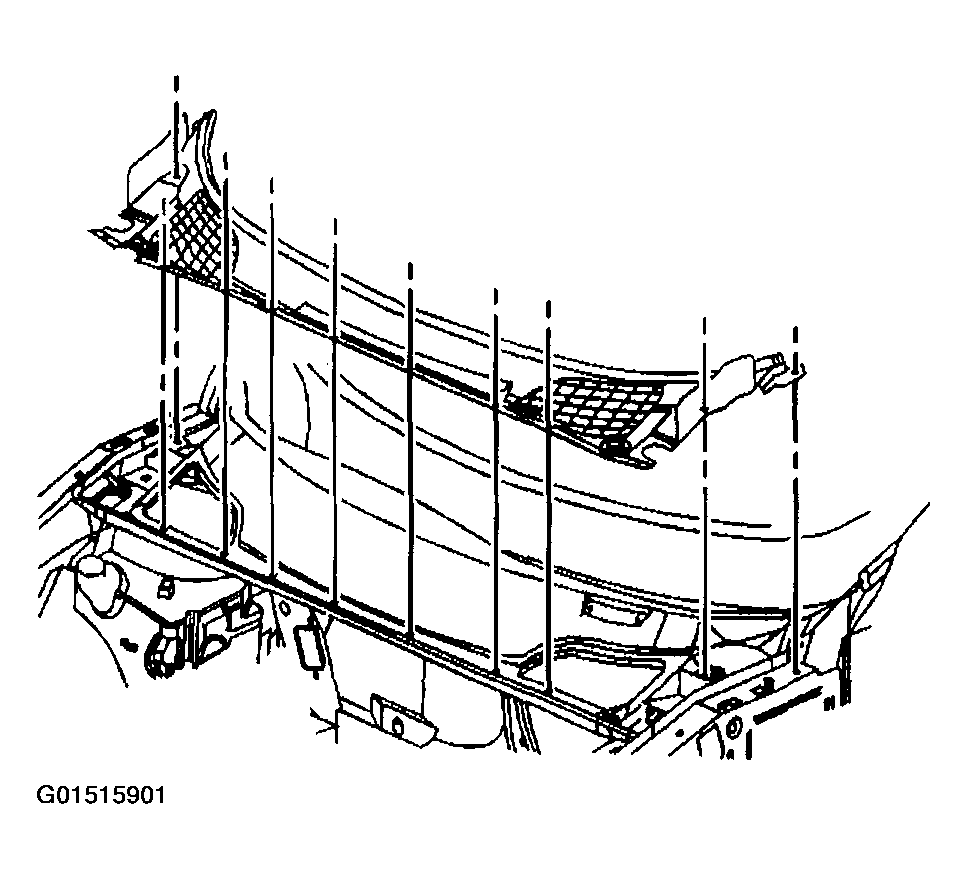

Fig 1: Positioning Air Inlet Grille To Vehicle
Courtesy of GENERAL MOTORS CORP.
Install the air inlet grille extensions to the air inlet grille and the windshield, pressing into place until fully seated.

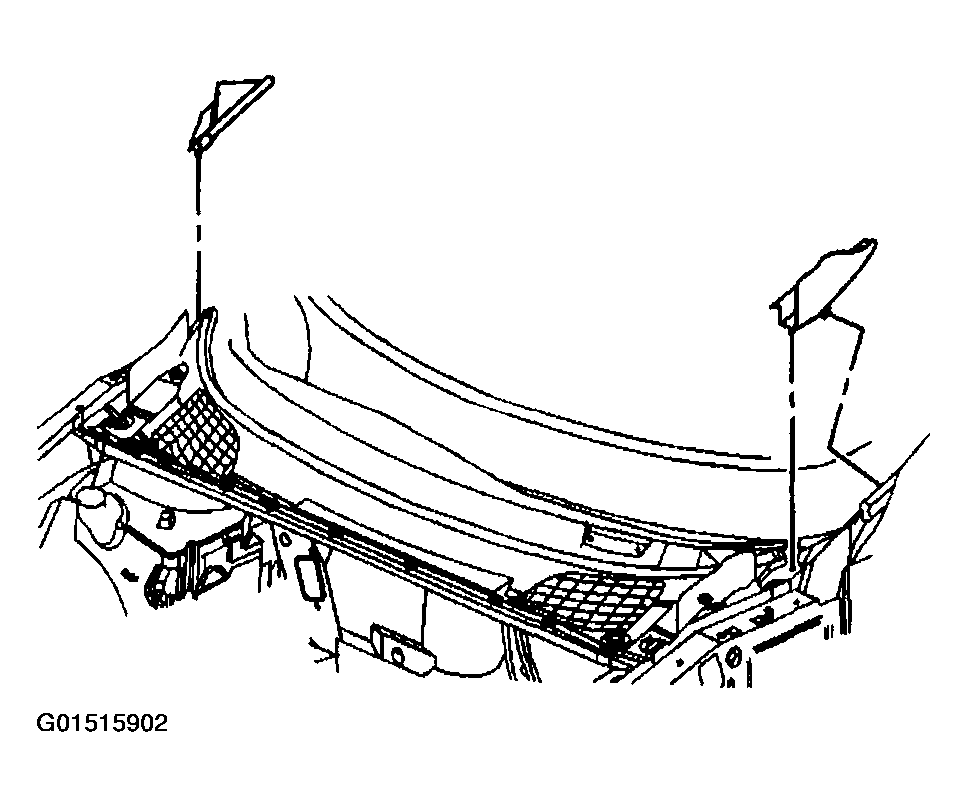

Fig 2: Installing Air Inlet Grille Extensions
Courtesy of GENERAL MOTORS CORP.
Install the push-in retainers to the air inlet grille.

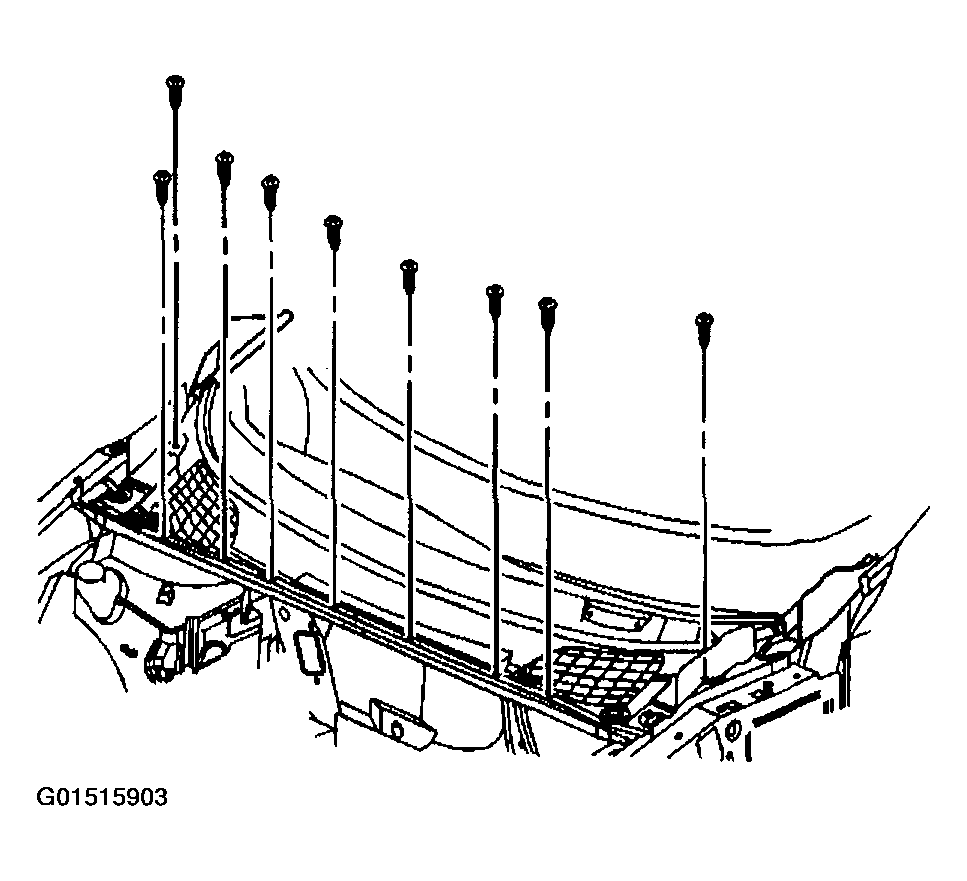

Fig 3: Installing Push-In Retainers To Air Inlet Grille
Courtesy of GENERAL MOTORS CORP.
Reposition the windshield wiper washer hose to the air inlet grille.
Install the windshield wiper arms. Refer to WIPER ARM REPLACEMENT .
Close the hood.

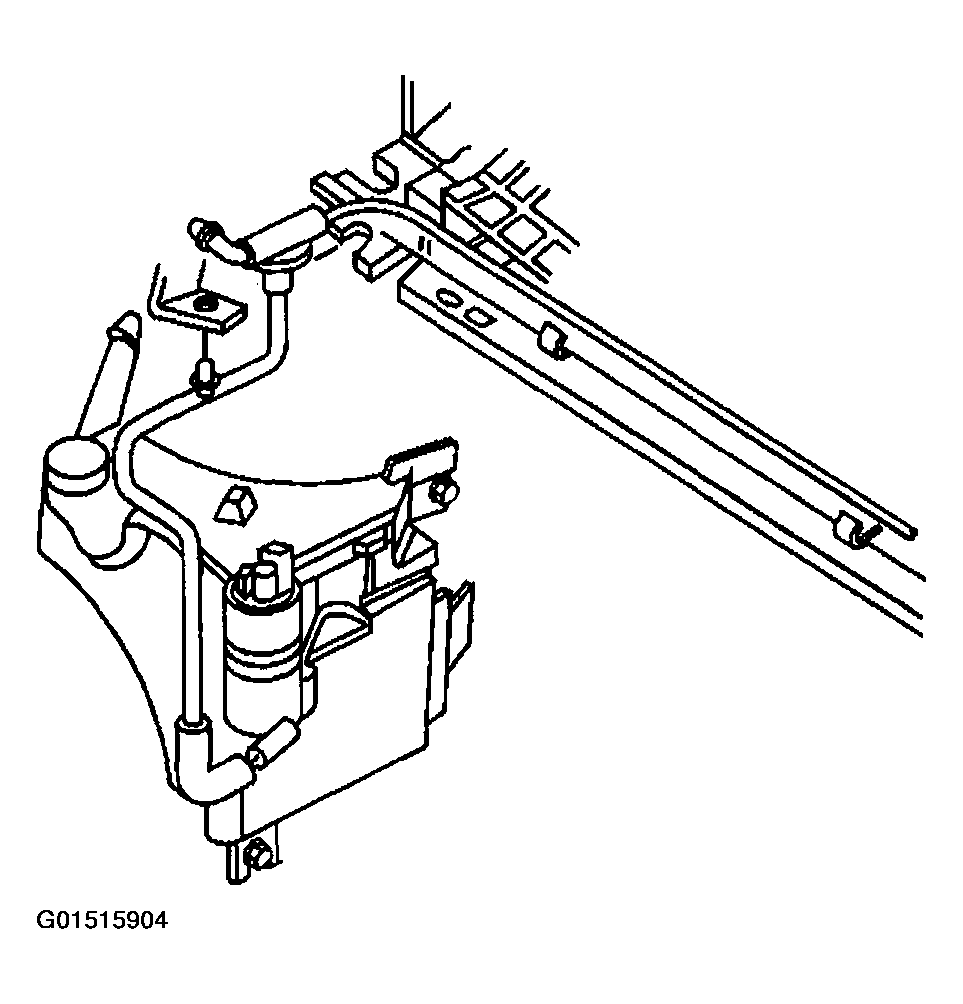

Fig 4: Repositioning Windshield Wiper Washer Hose To Air Inlet Grille
Courtesy of GENERAL MOTORS CORP.
