Automatic Transmission Schematic Icons

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

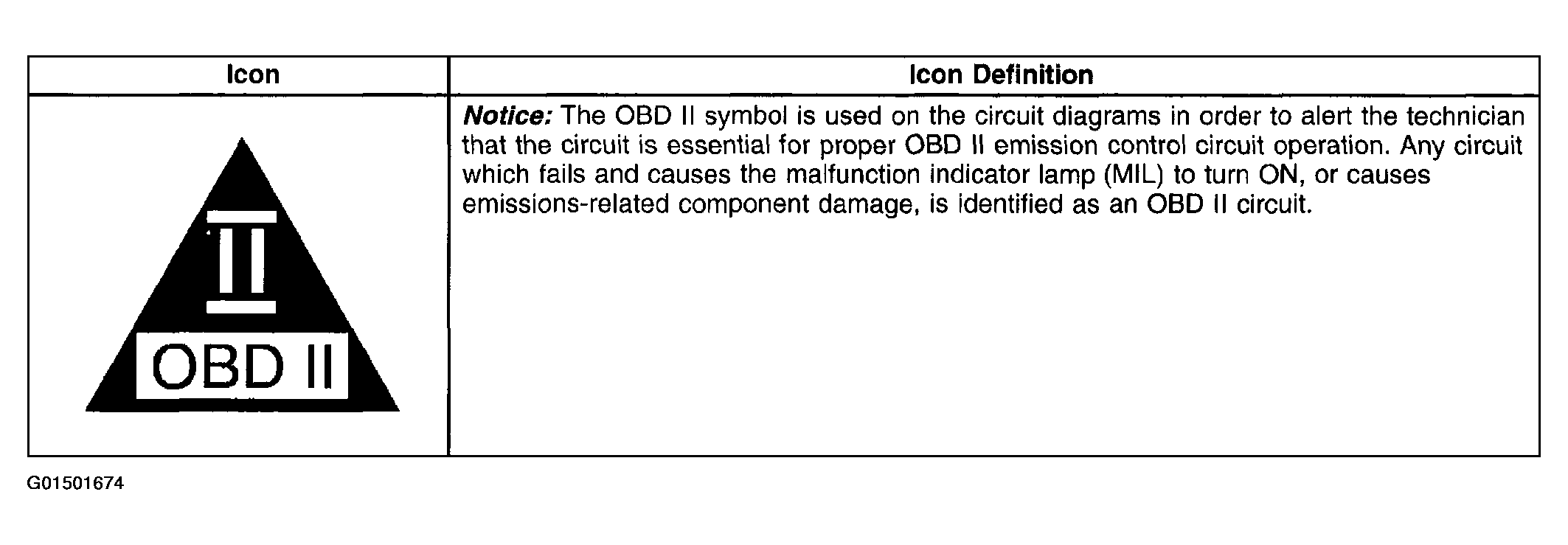

Fig 1: Identifying Schematic Icons

Courtesy of GENERAL MOTORS CORP.

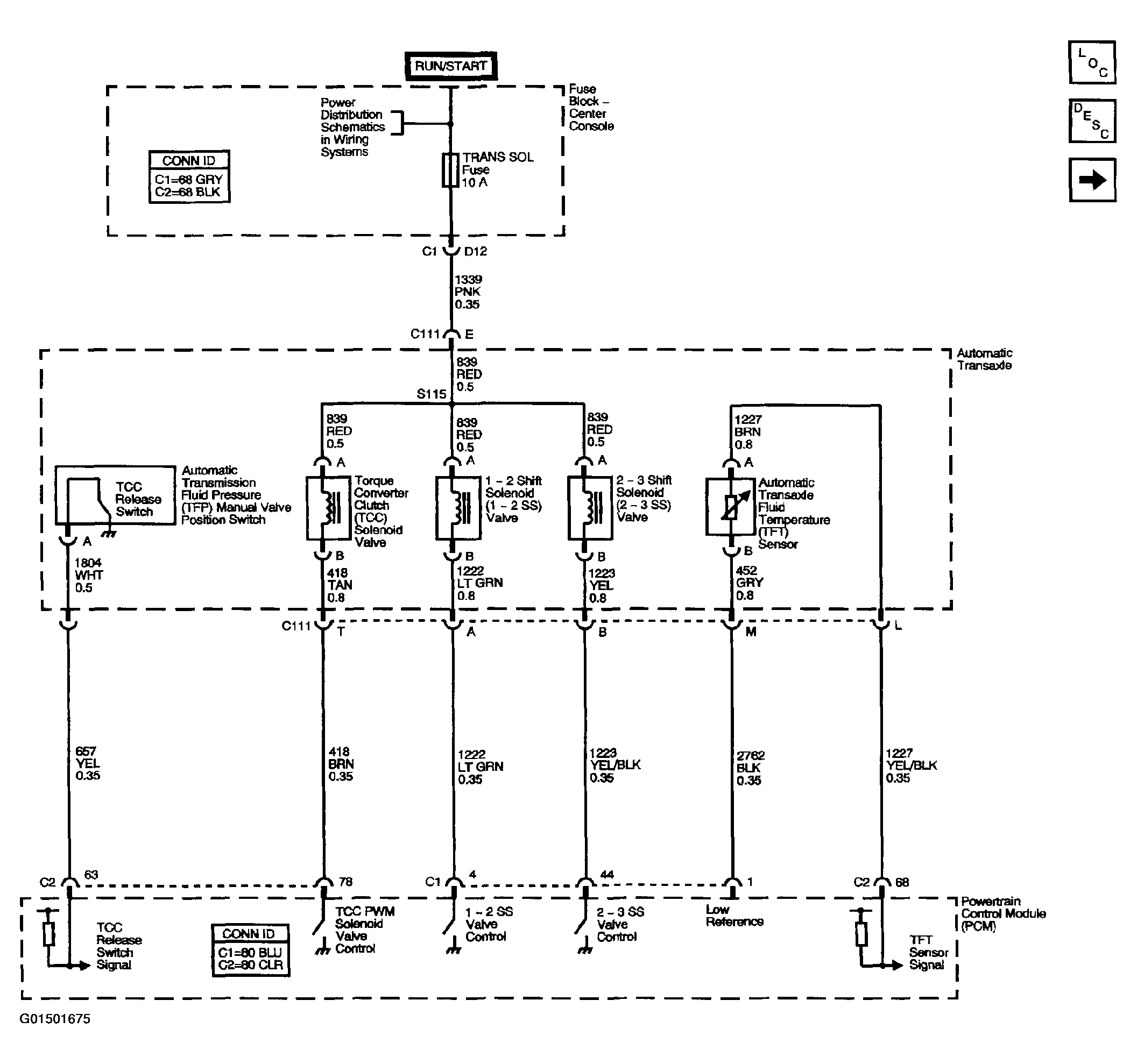

Fig 2: Automatic Transmission Controls Schematic (TCC Solenoid Control, SS Valve Control & TFT Sensor)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Automatic Transmission Controls Schematics (Switches, ISS & Pressure Control)

Courtesy of GENERAL MOTORS CORP.

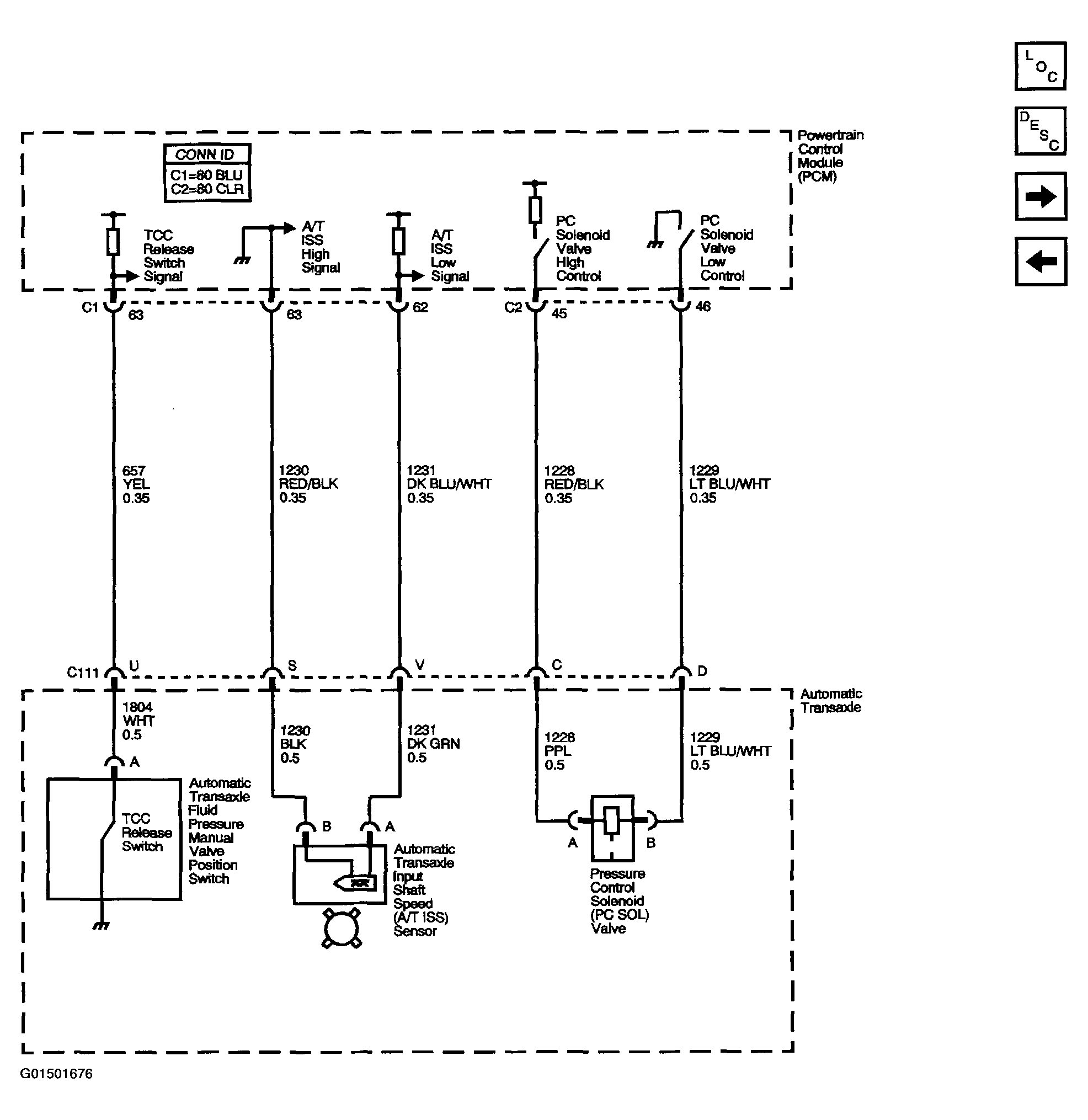

Fig 4: Automatic Transmission Controls Schematics (Transaxle Range Switch & VVS)

Courtesy of GENERAL MOTORS CORP.
