Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the O-ring (11). If damaged, replace as necessary.

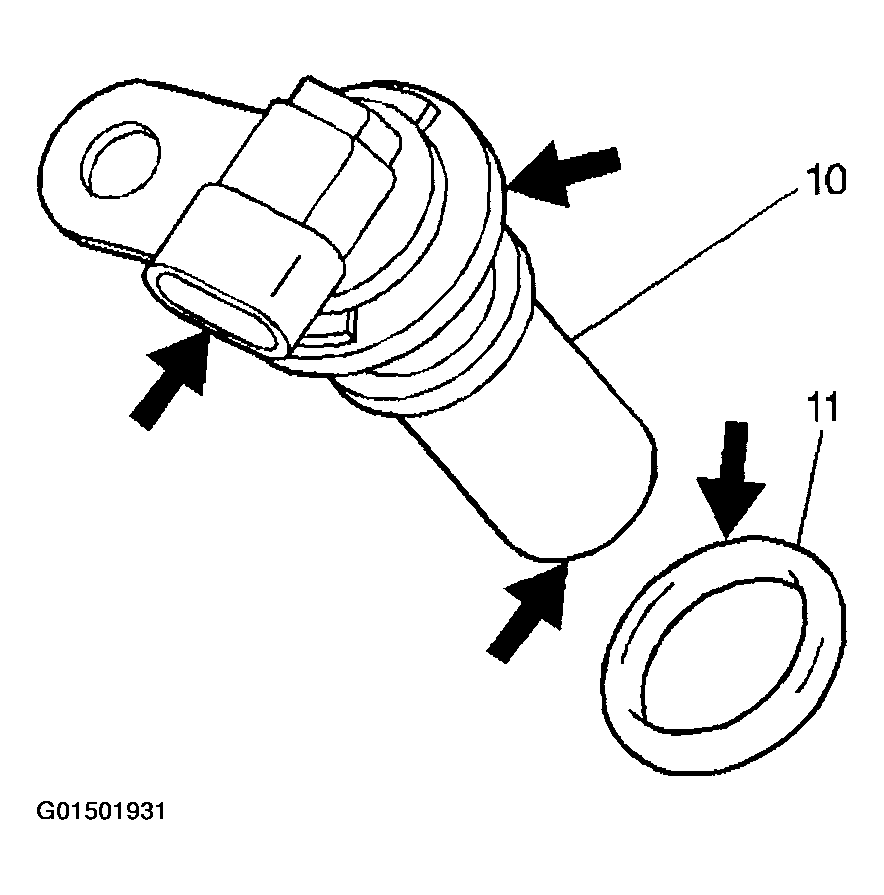

Fig 1: Installing Vehicle Speed Sensor (VSS) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Install the vehicle speed sensor (10) and the retaining bolt (9).
Tighten

Tighten the bolt to 12 N.m (106 Ib. in).
Connect the electrical connector to the sensor.
Lower the vehicle.

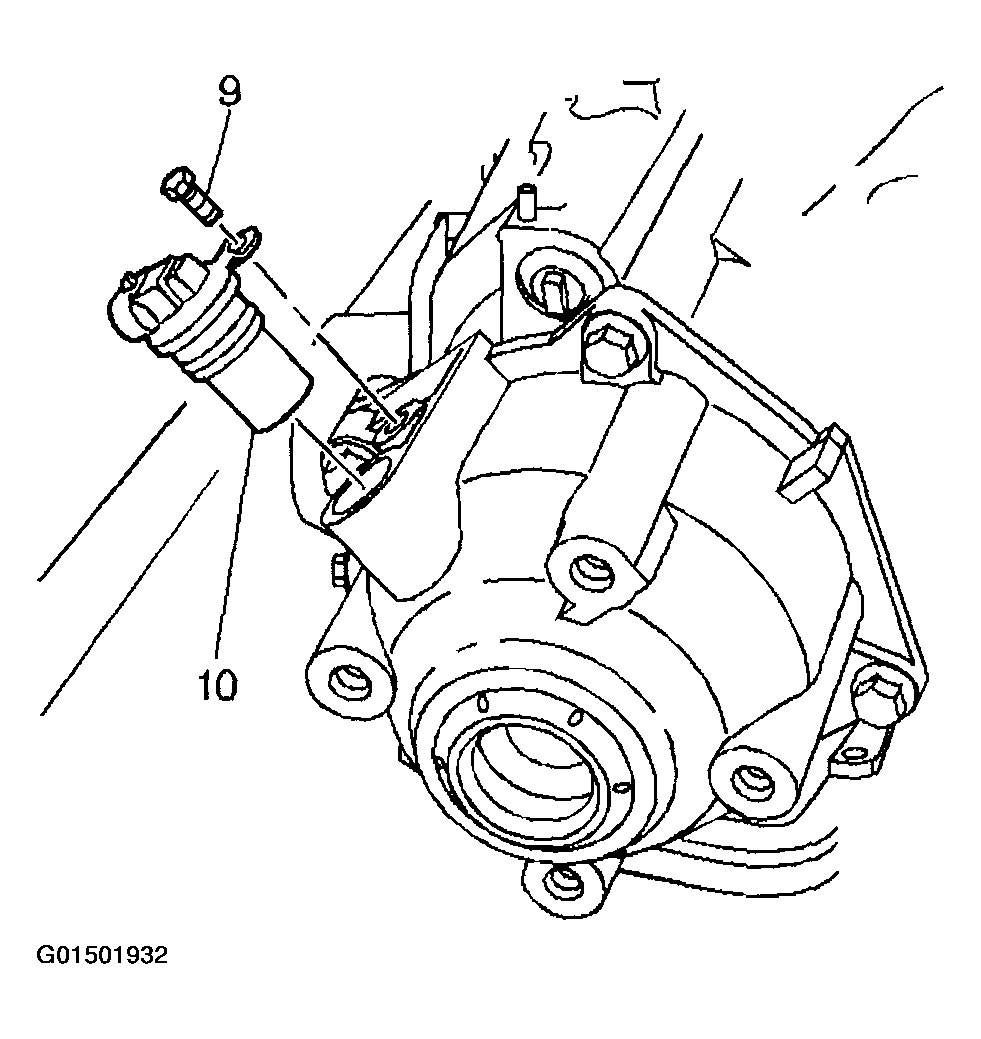

Fig 2: Installing Vehicle Speed Sensor (VSS) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
