Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Important:  If you are replacing the transaxle, transfer case or any internal components, you must inspect the end play and adjust as needed. Refer to Transmission to Transfer Case End Play Check (F4WD Only)  in Automatic Transaxle - 4T65-E Unit Repair.

  1. If the vehicle is equipped with AWD, install the transfer case. Refer to Transfer Case Installation  in Automatic Transaxle - 4T65-E Unit Repair.
  2. Position the flex plate alignment hole to the seven o'clock position.
  3. Align the transaxle filler tube to the transmission and install the transaxle into the vehicle.
    Fig 1: Installing Lower Transaxle Bolts And Studs
    G01502070Courtesy of GENERAL MOTORS CORP.
  4. Install the lower transaxle bolt (6) and stud (1).

    Tighten

    Tighten the lower transaxle to engine and engine to transaxle bolts to 75 N.m (55 lb ft).

  5. Install the transaxle/transfer case brace. Refer to AUTOMATIC TRANSMISSION BRACE REPLACEMENT  .
  6. Install the transmission cooler hoses. Refer to AUTOMATIC TRANSMISSION OIL COOLER HOSE REPLACEMENT  .
  7. Install the right and left axle shafts into the transaxle. Refer to AXLE SHAFT .
  8. Connect the vehicle speed sensor electrical connector.
  9. Install the torque converter bolts. Refer to FLYWHEEL TO TORQUE CONVERTER BOLT REPLACEMENT  .
  10. Install the torque converter cover. Refer to TORQUE CONVERTER COVER REPLACEMENT  .
  11. Install the filler tube bracket bolt.
  12. Install the frame.

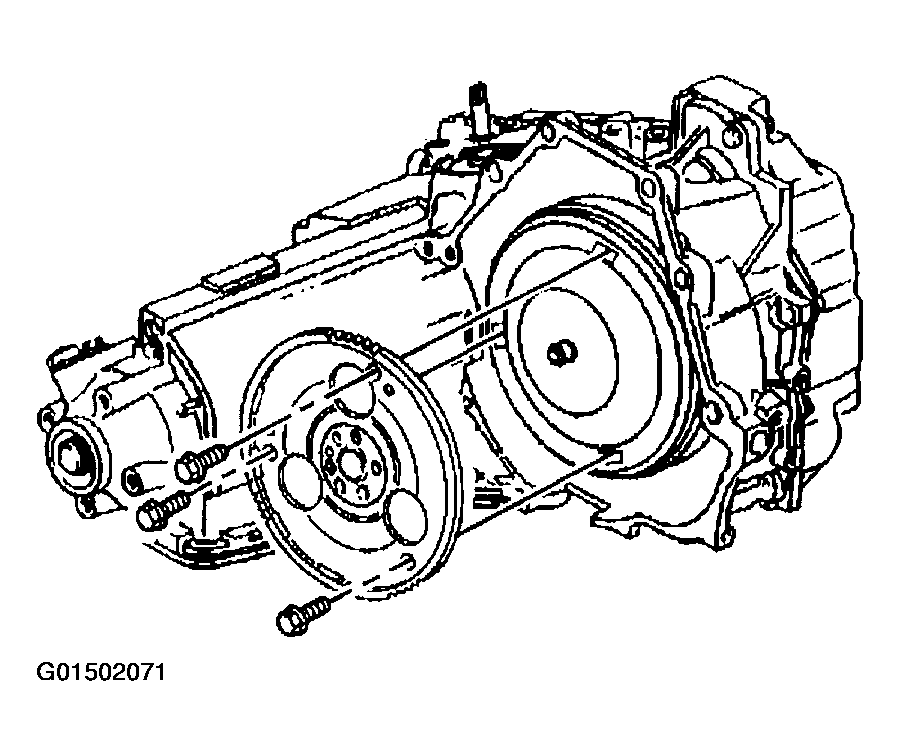

    Fig 2: Installing Torque Converter Cover
    G01502071Courtesy of GENERAL MOTORS CORP.
  13. If the vehicle is equipped with AWD, perform the following steps:
    1. 13.1. Install the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT .
    2. 13.2. Install the transfer case brace. Refer to SUPPORT BRACE REPLACEMENT .

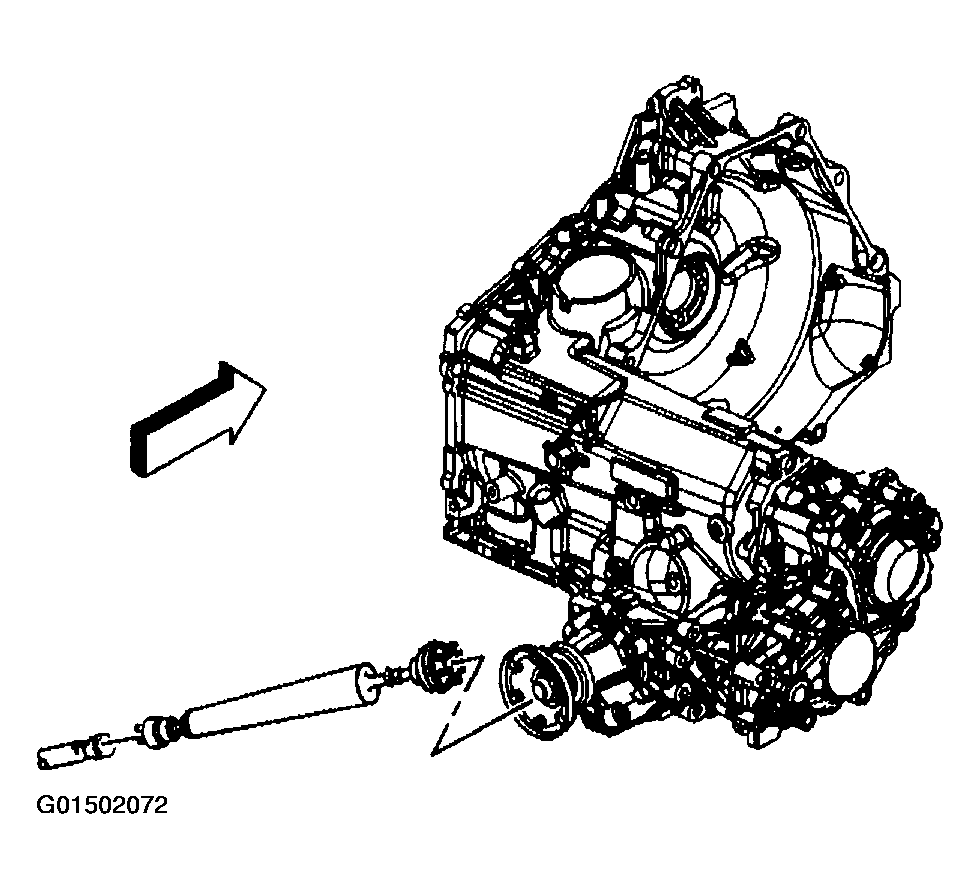

    Fig 3: Installing Propeller Shaft
    G01502072Courtesy of GENERAL MOTORS CORP.
  14. Install the front wheels.
  15. Lower the vehicle.
  16. Remove the engine support fixture. Refer to ENGINE SUPPORT FIXTURE .
  17. Install the right side engine strut. Refer to ENGINE MOUNT STRUT REPLACEMENT - RIGHT .
  18. Install the upper transaxle bolts (3, 4, 5) and stud (2).

    Tighten

    Tighten the upper transaxle bolts and stud to 75 N.m (55 lb ft).

    Fig 4: Installing Upper Transaxle Bolts And Studs
    G01502073Courtesy of GENERAL MOTORS CORP.
  19. Connect the wiring harness to the transaxle.
  20. Install the transmission range selector cable bracket. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE BRACKET REPLACEMENT  .
  21. Install the automatic transmission range selector cable to the automatic transmission range selector lever. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE LEVER REPLACEMENT  .
  22. Install the air cleaner assembly.

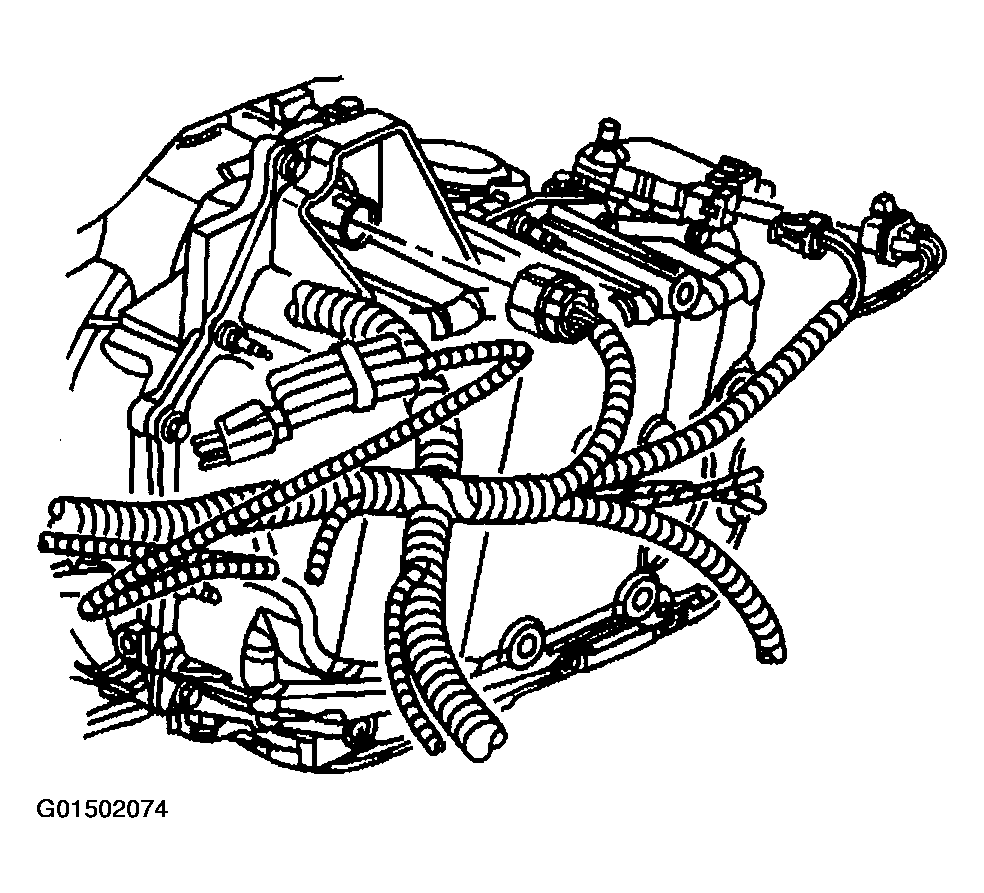

    Fig 5: Installing Wiring Harness
    G01502074Courtesy of GENERAL MOTORS CORP.
  23. Install the coolant recovery bottle.
  24. Inspect and adjust the transaxle fluid level as needed. Refer to the following information.

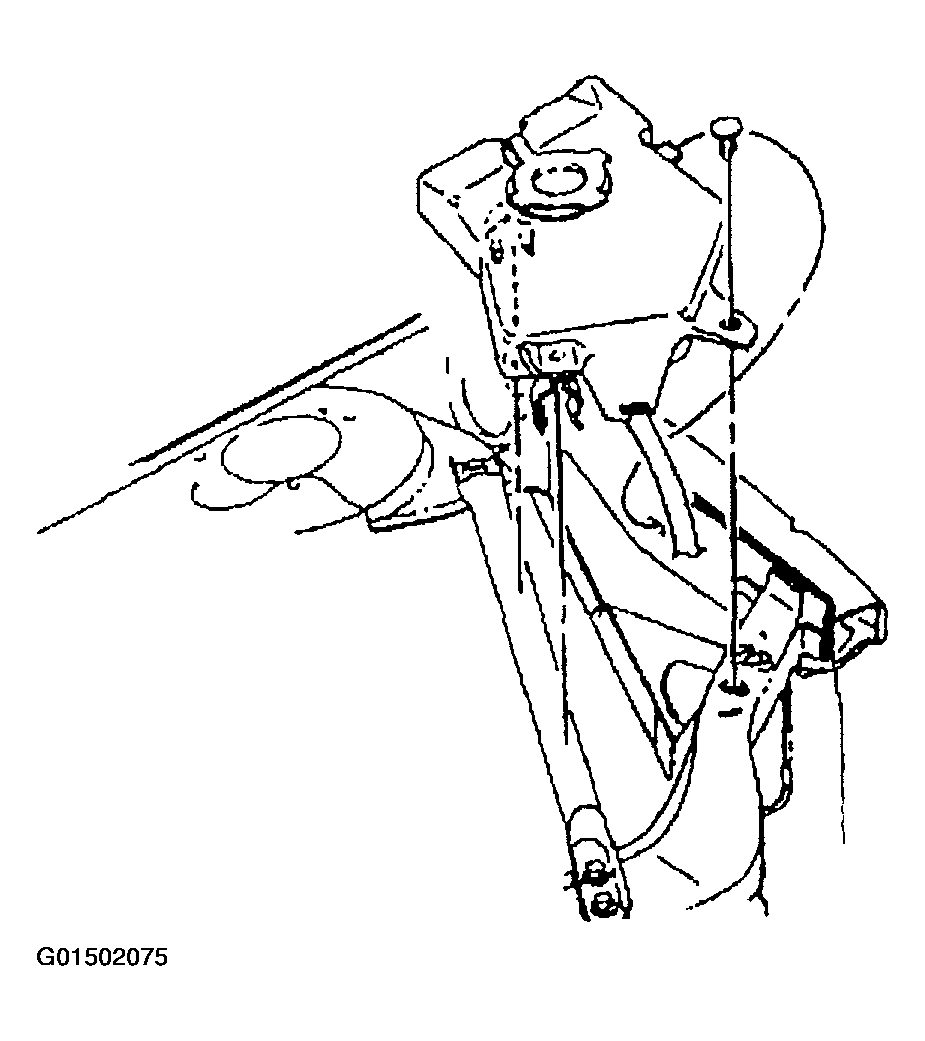

    Fig 6: Installing Coolant Recovery Bottle
    G01502075Courtesy of GENERAL MOTORS CORP.
