Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the torque converter cover bolts.
  3. Remove the torque converter cover.

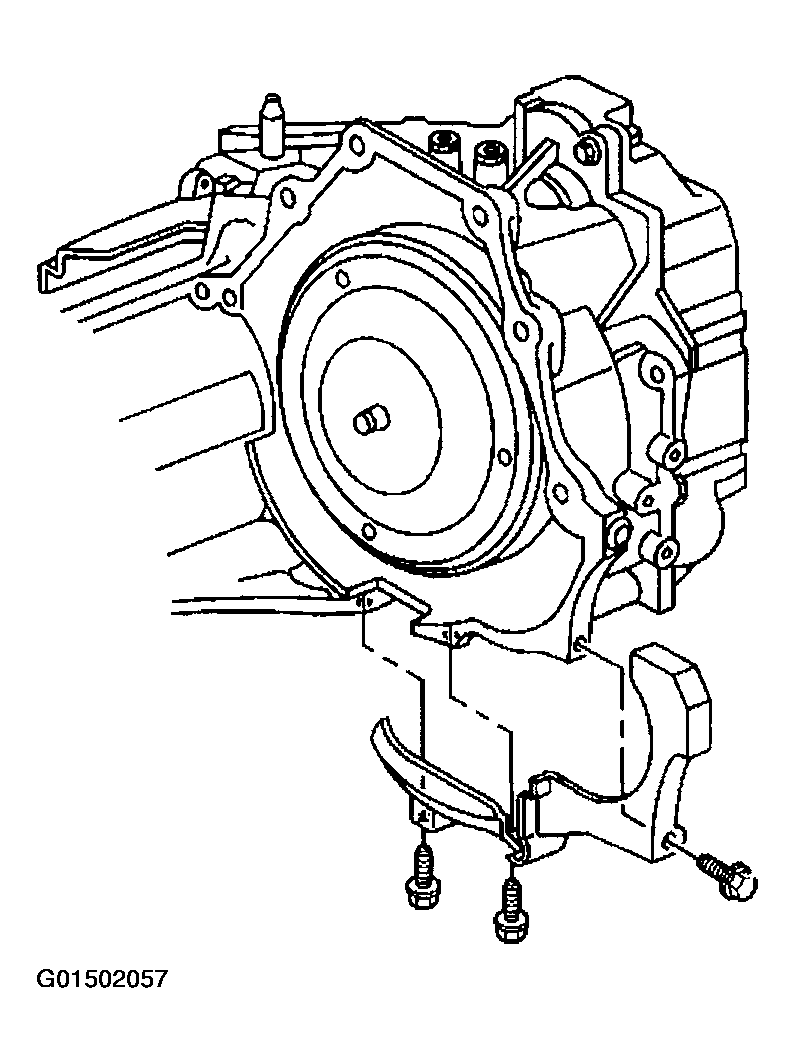

    Fig 1: Removing Torque Converter Cover Bolts
    G01502057Courtesy of GENERAL MOTORS CORP.
