Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the torque converter cover.
  2. Install the torque converter cover bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Lower the vehicle.

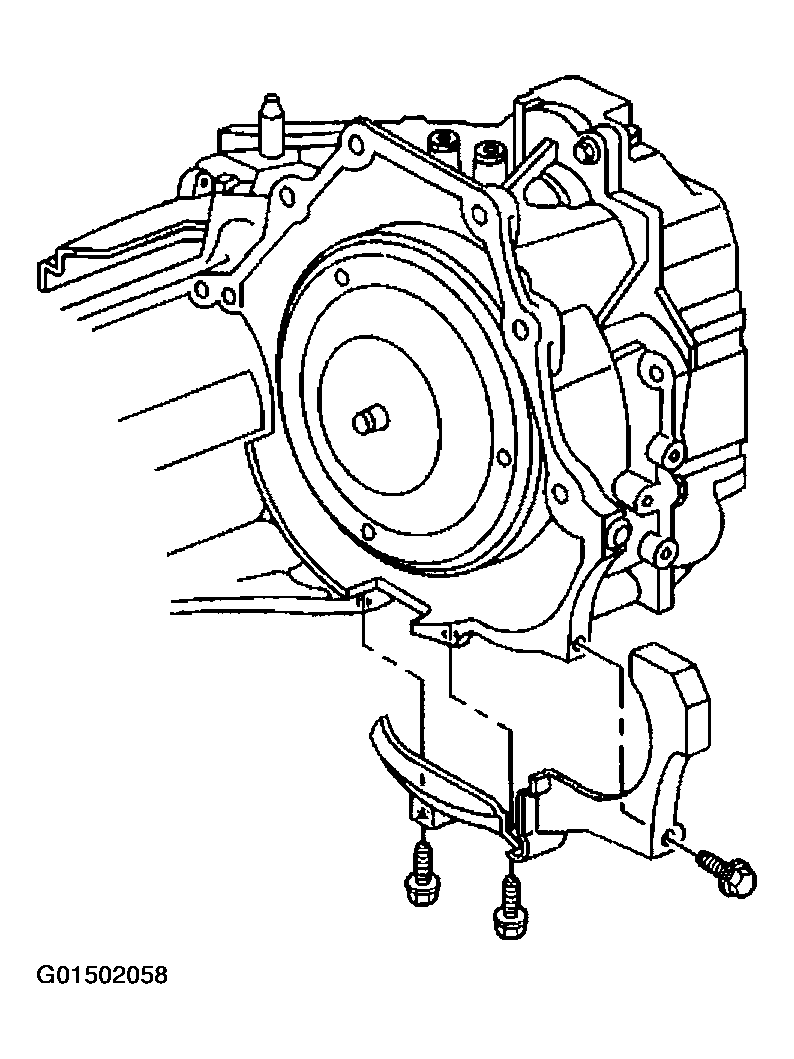

    Fig 1: Installing Torque Converter Cover Bolts
    G01502058Courtesy of GENERAL MOTORS CORP.
