Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. Refer to OIL PAN REPLACEMENT  .
  2. Remove the thermo element pins and washers (120 and 123).
  3. Remove the thermo element (121) and the thermo element plate (122).

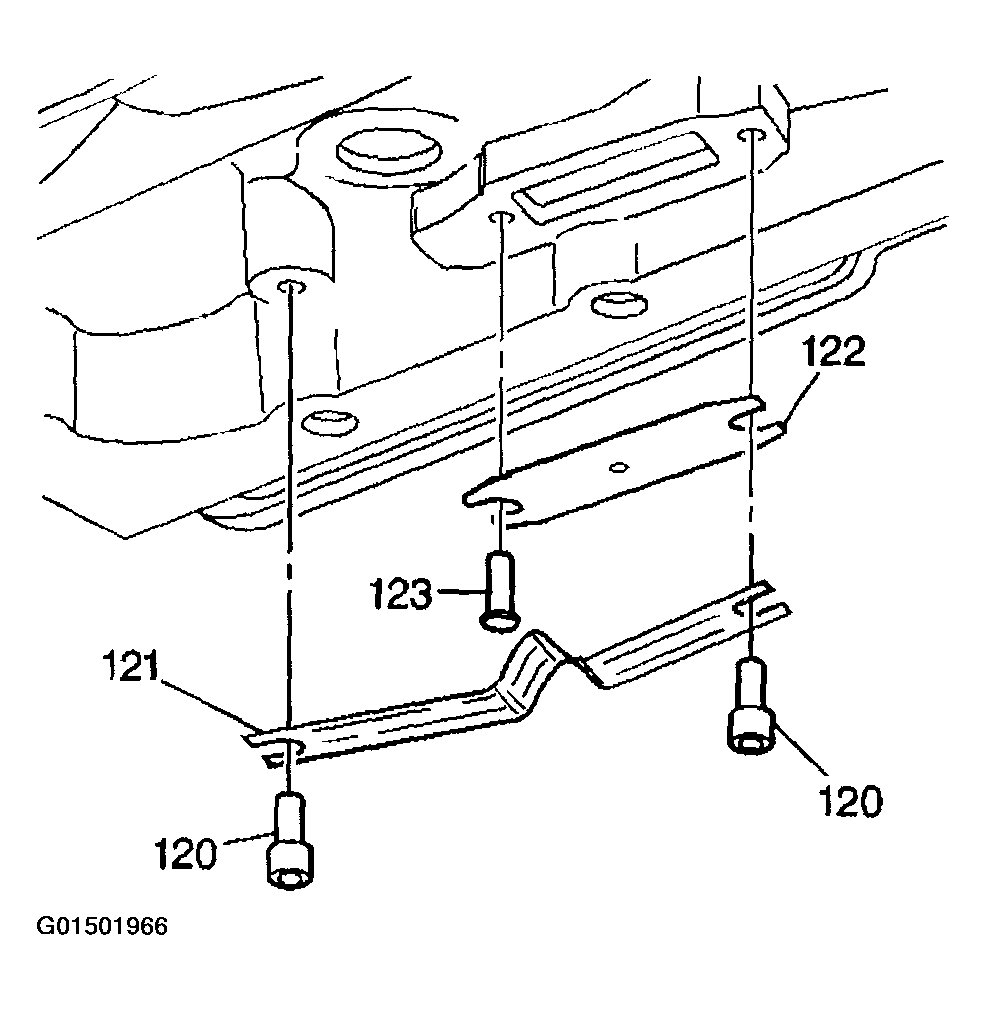

    Fig 1: Removing Thermo Element
    G01501966Courtesy of GENERAL MOTORS CORP.
