Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 34094-A  to set the middle thermo pin (123).
  2. Install the new thermo element plate (122).
  3. Install the pin and washer (120).
  4. Use the J 34094-A  to set the height of the pin and washer (120) furthest from the accumulator.
  5. Use the J 34094-A  to set the height of the second pin and washer (120).

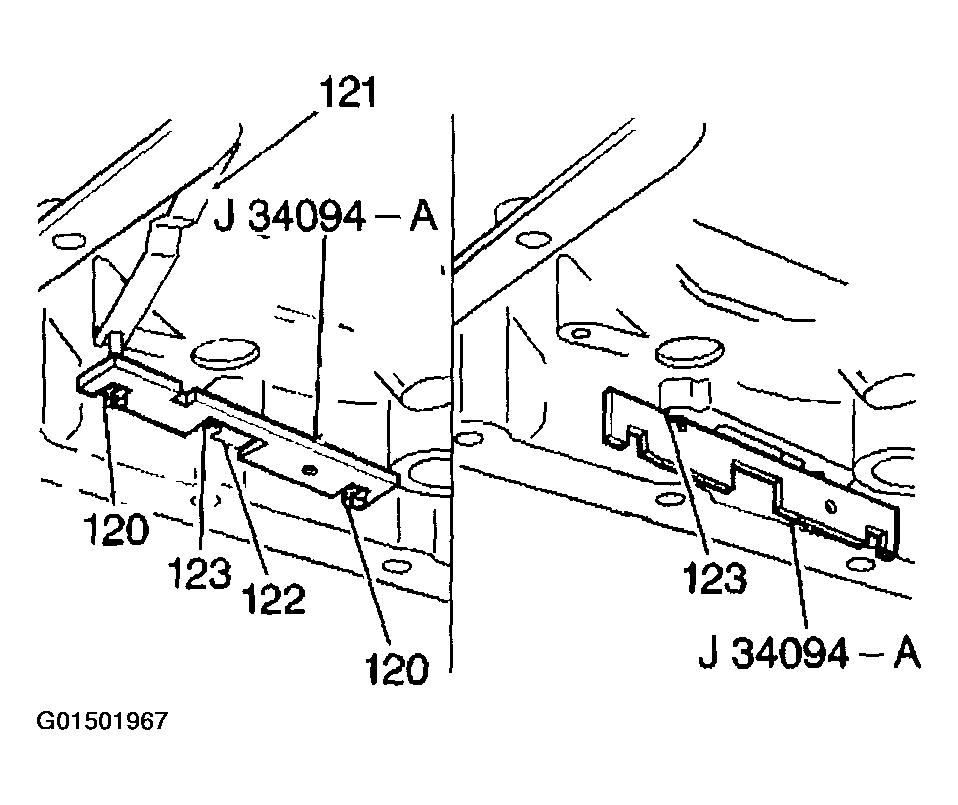

    Fig 1: Installing Thermo Element (1 Of 2)
    G01501967Courtesy of GENERAL MOTORS CORP.
  6. Carefully install the thermo element (121) between the two pin and washers (120). The V in the thermo element (121) must contact the thermo element plate (122).
  7. Install the oil pan. Refer to OIL PAN REPLACEMENT  .

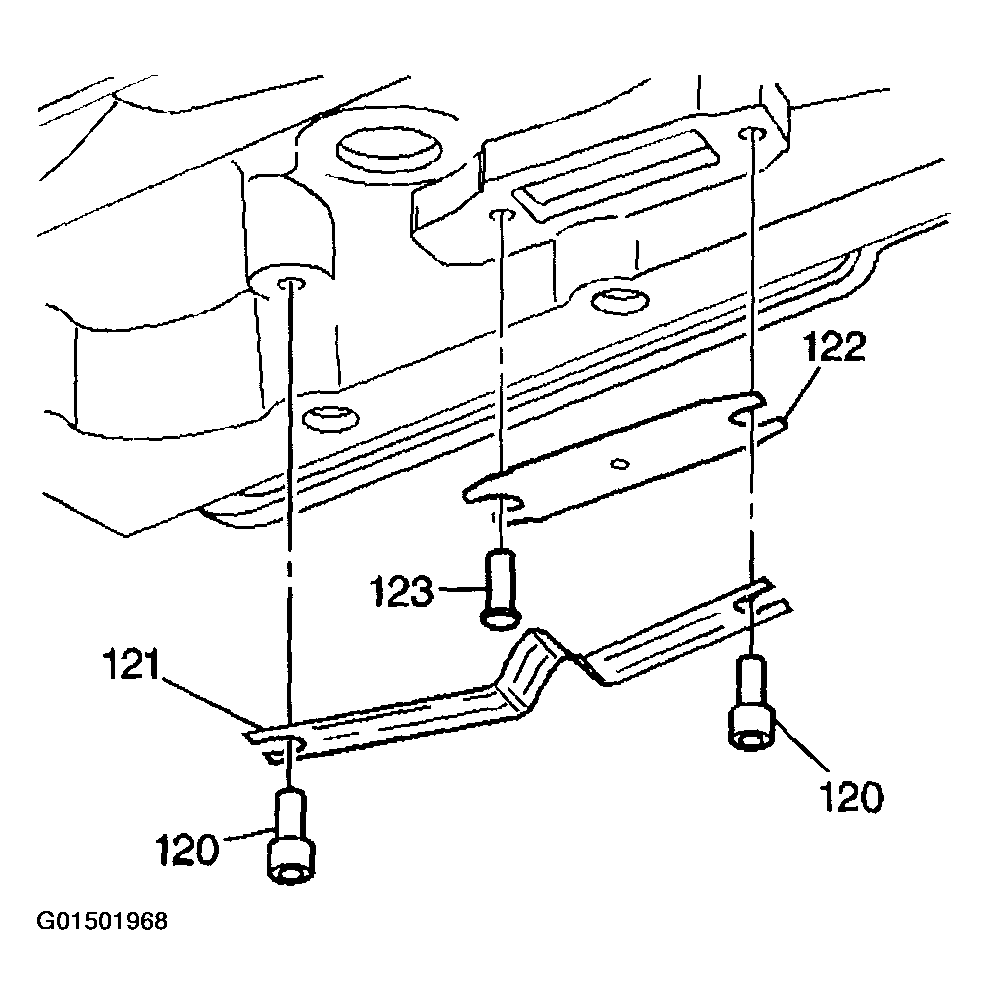

    Fig 2: Installing Thermo Element (2 Of 2)
    G01501968Courtesy of GENERAL MOTORS CORP.
