Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the park brake and block the wheels in order to prevent the vehicle from moving.
  2. Turn the ignition ON.
  3. Press the brake pedal and shift the transaxle into low gear (1).
  4. Turn the ignition OFF.
  5. Use a small flat-bladed tool in order to remove the shift control handle retainer.
  6. Remove the shift control handle.
  7. Remove the center console trim plate. Refer to TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE (AZTEK) or TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE (RENDEZVOUS) .

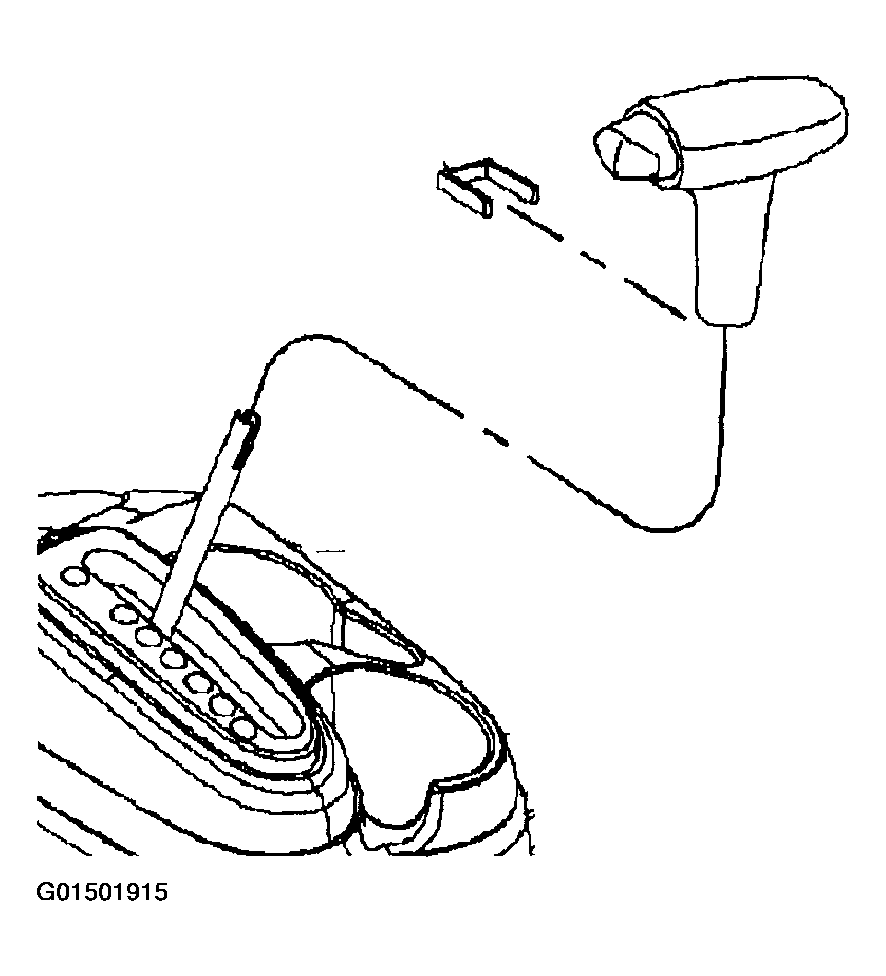

    Fig 1: Removing Shift Indicator (1 Of 3)
    G01501915Courtesy of GENERAL MOTORS CORP.
  8. Remove the shift indicator fasteners.
  9. Disconnect the shift indicator lamp from the shift indicator.

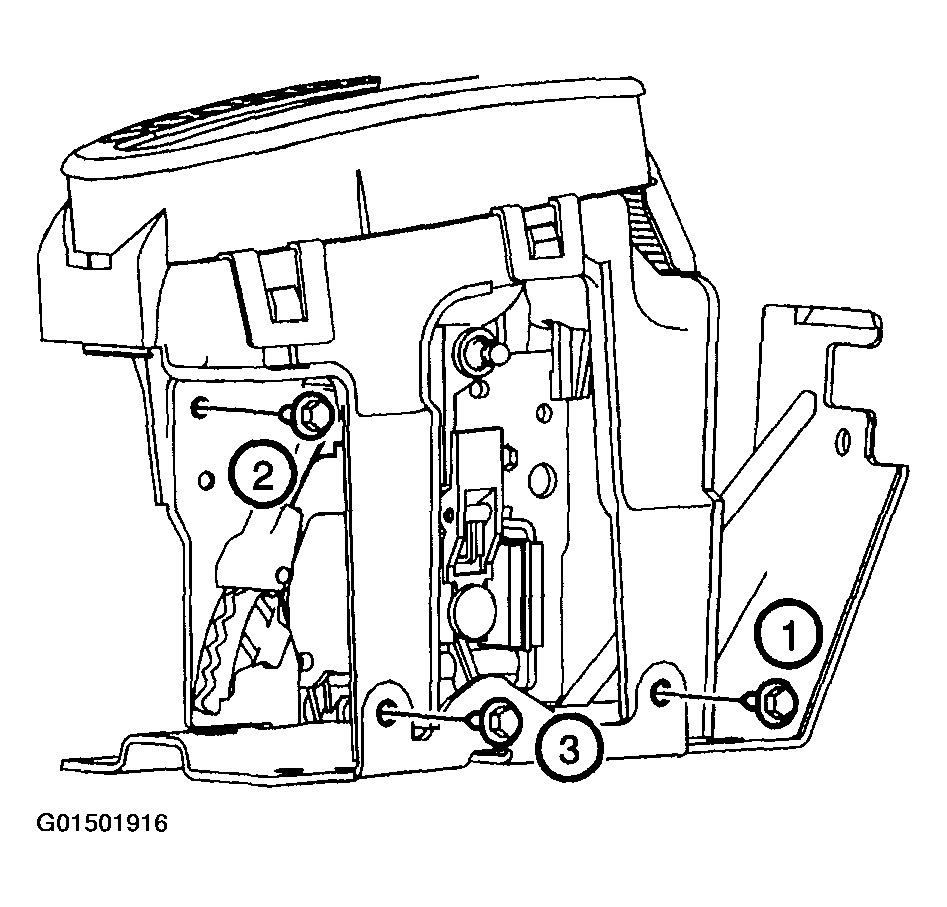

    Fig 2: Removing Shift Indicator (2 Of 3)
    G01501916Courtesy of GENERAL MOTORS CORP.
  10. Remove the shift indicator.

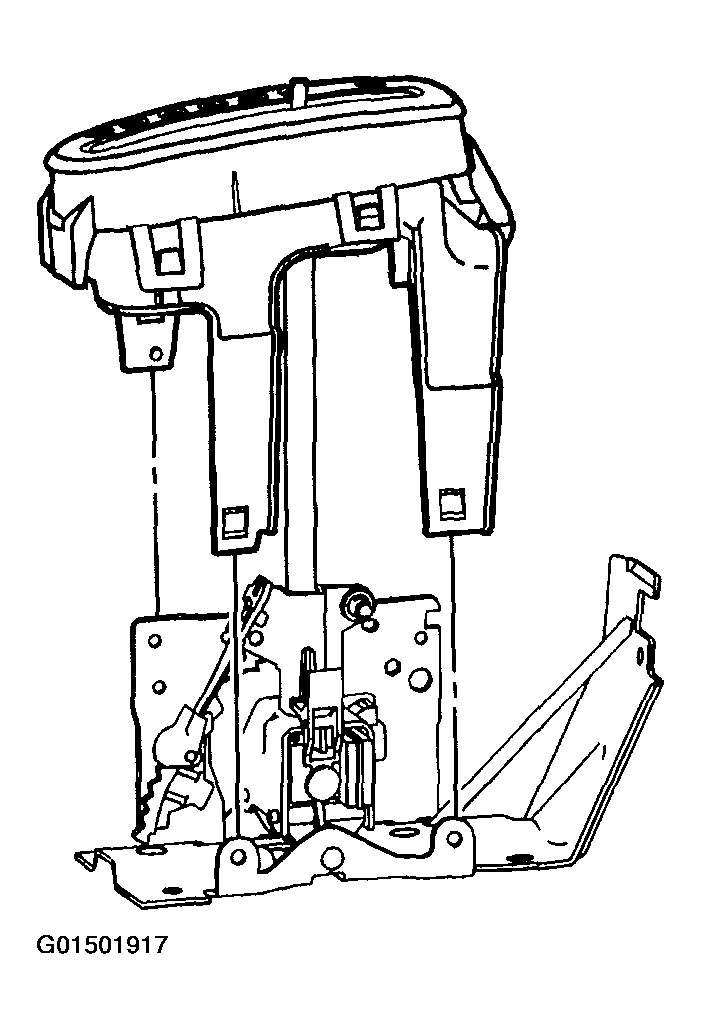

    Fig 3: Removing Shift Indicator (3 Of 3)
    G01501917Courtesy of GENERAL MOTORS CORP.
