Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive axle retaining ring (509) and the output shaft differential inboard snap ring (512) onto the output shaft (510).
  2. Install the fourth clutch bearing (511) onto the output shaft (510).
    Fig 1: Installing Output Shaft (1 Of 2)
    G01502030Courtesy of GENERAL MOTORS CORP.
  3. Hold the final drive differential (700) in place and carefully install the output shaft (510) into the transmission through the left wheel opening and into the differential side gear.
  4. Install the case extension housing. Refer to CASE EXTENSION HOUSING REPLACEMENT  .
  5. Connect the left and right drive axles to the transaxle. Refer to AXLE SHAFT .

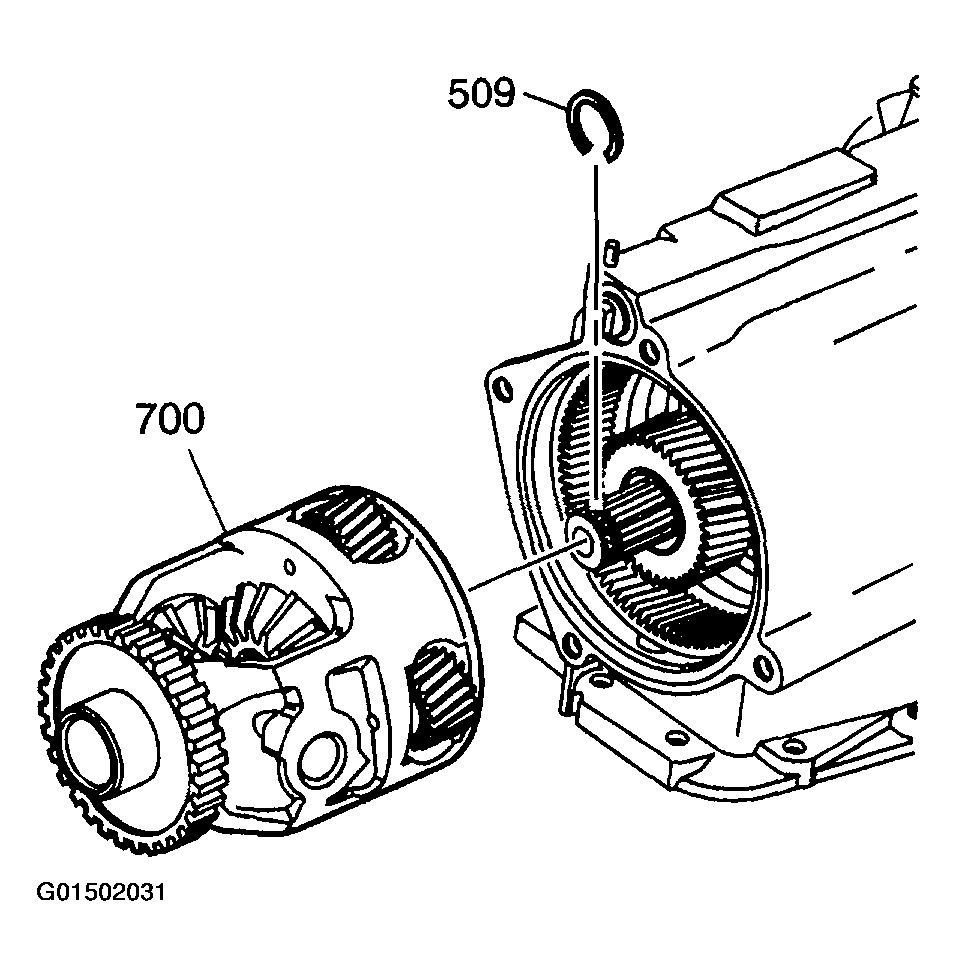

    Fig 2: Installing Output Shaft (2 Of 2)
    G01502031Courtesy of GENERAL MOTORS CORP.
