Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .
    NOTE: Do NOT remove the three bolts which hold the pump together
  2. Remove the oil pump bolts (205-207).

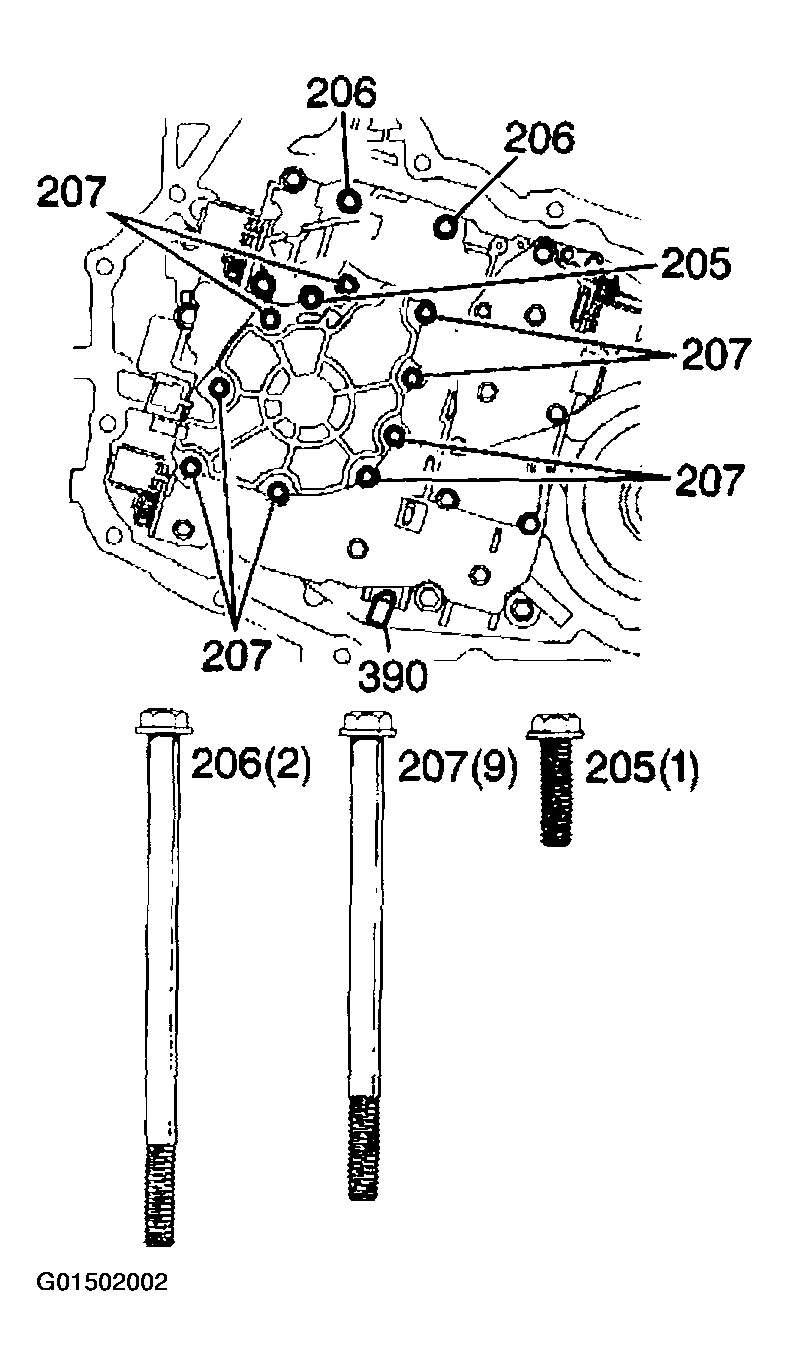

    Fig 1: Removing Oil Pump (1 Of 2)
    G01502002Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pump (200) form the valve body (300).
  4. Inspect the oil pump.

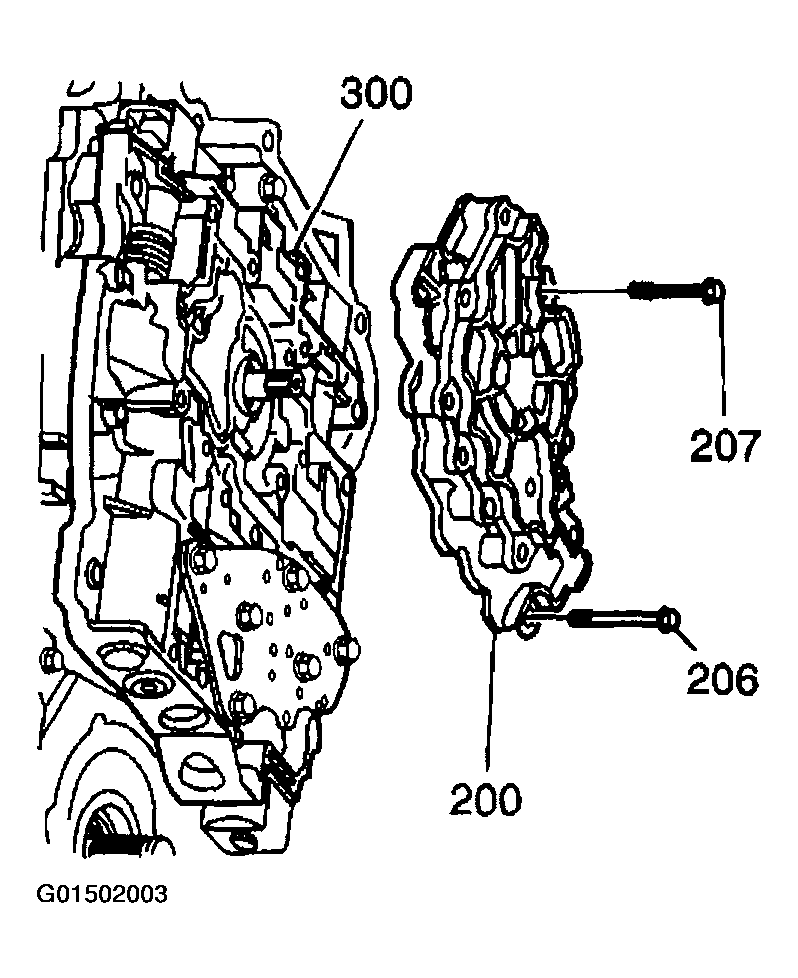

    Fig 2: Removing Oil Pump (2 Of 2)
    G01502003Courtesy of GENERAL MOTORS CORP.
