Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply sealant GM P/N 12345382 or equivalent to the pressure test hole plug.
  2. Install the pressure test hole plug (38).

    Tighten

    Tighten the pressure test hole plug (38) to 12 N.m (106 Ib. in).

  3. Install the throttle body air inlet duct.

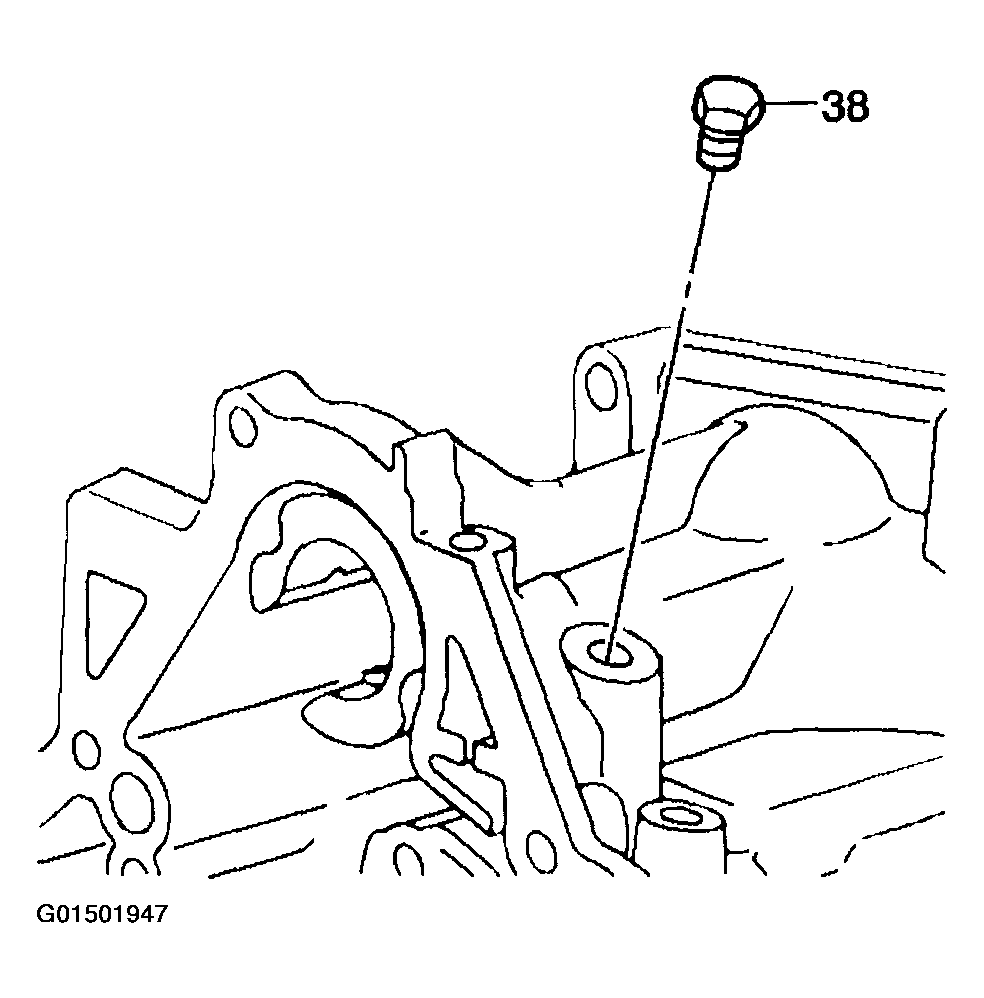

    Fig 1: Installing Oil Pressure Test Plug
    G01501947Courtesy of GENERAL MOTORS CORP.
