Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal and installation of the transfer case while the transmission is in vehicle may cause improper positioning of the park gear thrust bearing. If the transfer case fasteners are tightened while the park gear thrust bearing is out of position, the park gear thrust bearing, transmission, and/or the transfer case will be damaged
  1. Remove the transaxle assembly. Refer to TRANSMISSION REPLACEMENT  in Transmission/Transaxle.
  2. Remove the transfer case from the transmission. Refer to TRANSFER CASE AND/OR SEAL REPLACEMENT .
  3. Remove the forward band servo cover bolts.
  4. Remove the forward servo cover.
  5. Remove the forward servo cover O-ring.
  6. Remove the servo piston assembly.
  7. Remove the servo spring.

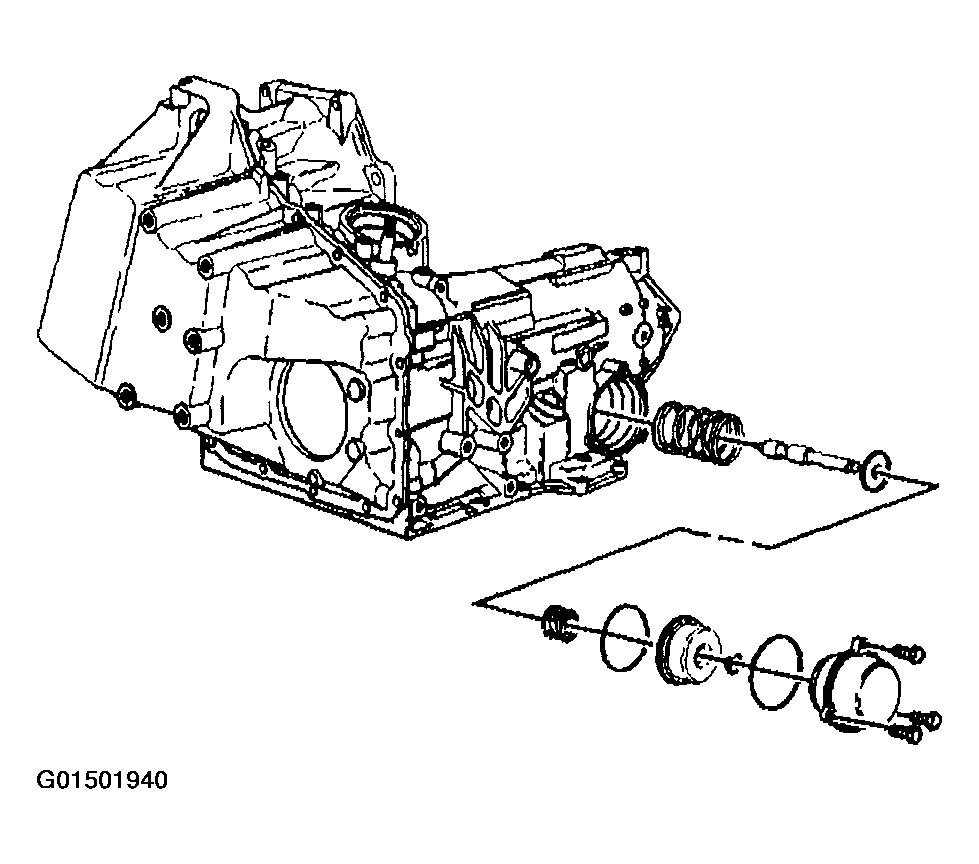

    Fig 1: Removing Forward Servo (M76)
    G01501940Courtesy of GENERAL MOTORS CORP.
