Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the servo spring.
  2. Install the servo piston assembly.
  3. Install the forward servo cover O-ring.
  4. Install the forward servo cover.
  5. Install the transfer case. Refer to TRANSFER CASE AND/OR SEAL REPLACEMENT .
  6. Install the transaxle. Refer to TRANSMISSION REPLACEMENT  in Transmission/Transaxle.

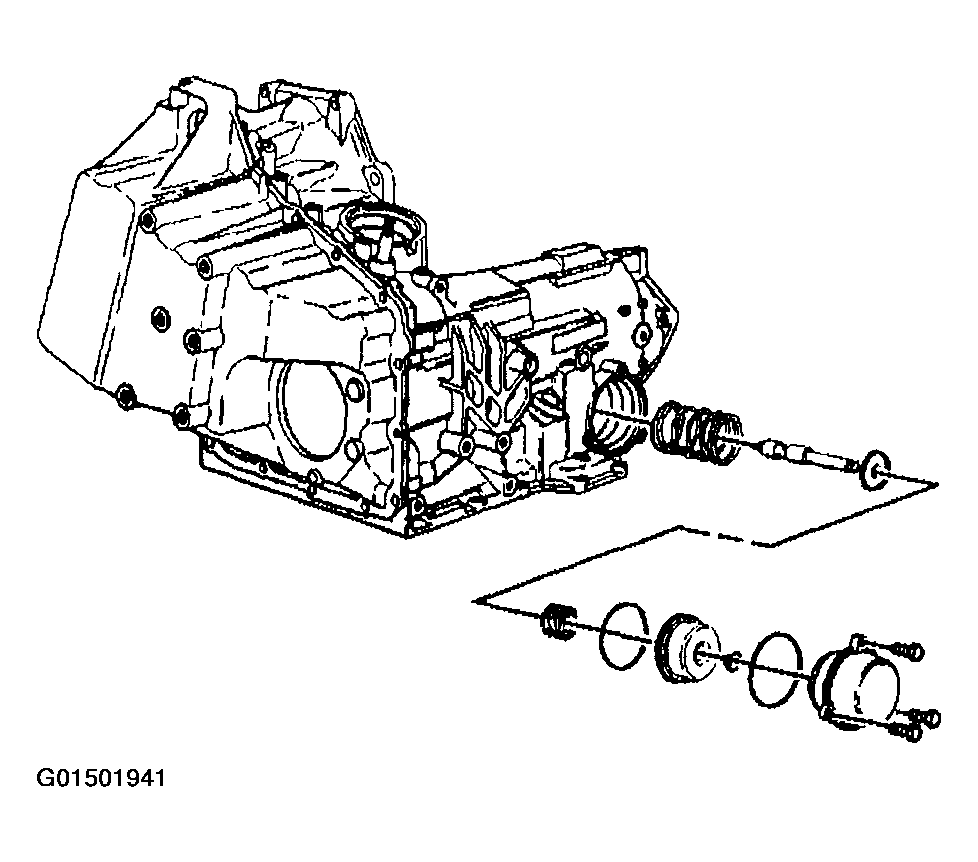

    Fig 1: Installing Forward Servo (M76)
    G01501941Courtesy of GENERAL MOTORS CORP.
