Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the servo spring.
  2. Install the servo piston assembly.
  3. Install the forward servo cover O-ring.
  4. Install the forward servo cover.
  5. Install the forward band servo cover bolts.

    Tighten

    Tighten the forward band servo cover bolts to 12 N.m (106 Ib. in).

  6. Remove the drain pan from under the forward servo cover.

    Important:  Ensure that the power steering cooler line does not become trapped or damaged during this step.

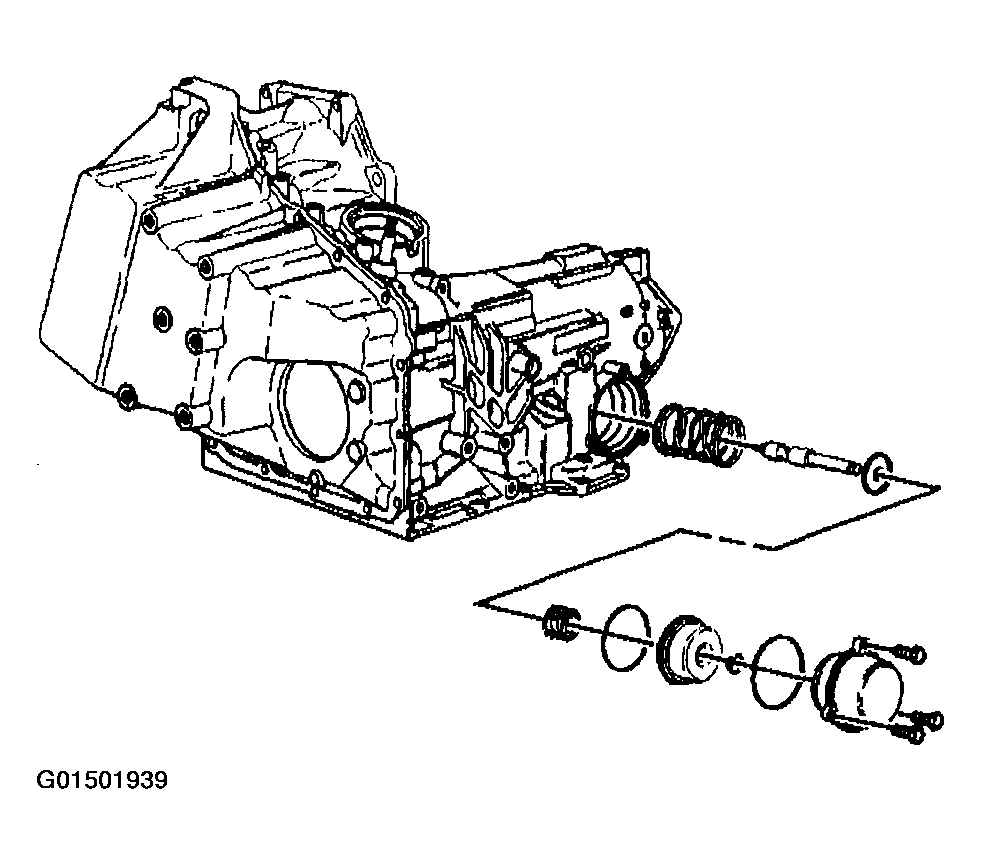

    Fig 1: Installing Forward Servo
    G01501939Courtesy of GENERAL MOTORS CORP.
  7. Use the utility stand in order to raise the frame rear.
  8. Install the NEW frame bolts.
  9. Install the powertrain mounts to the frame.
  10. Install the transaxle mount nuts. Refer to AUTOMATIC TRANSMISSION MOUNT REPLACEMENT  .
  11. Install the engine mount nuts. Refer to ENGINE MOUNT REPLACEMENT .
  12. Install the power steering gear to the frame. Refer to POWER STEERING GEAR REPLACEMENT .
  13. Install the power steering gear heat shield. Refer to POWER STEERING GEAR HEAT SHIELD REPLACEMENT .
  14. Install the stabilizer shaft. Refer to STABILIZER SHAFT REPLACEMENT .
  15. Lower the vehicle.
  16. Remove the engine support fixture. Refer to ENGINE SUPPORT FIXTURE .
