Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .
  2. Use a small flat-bladed tool in order to remove the wiring harness from the solenoid valve(s) (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and/or the temperature sensor (391).

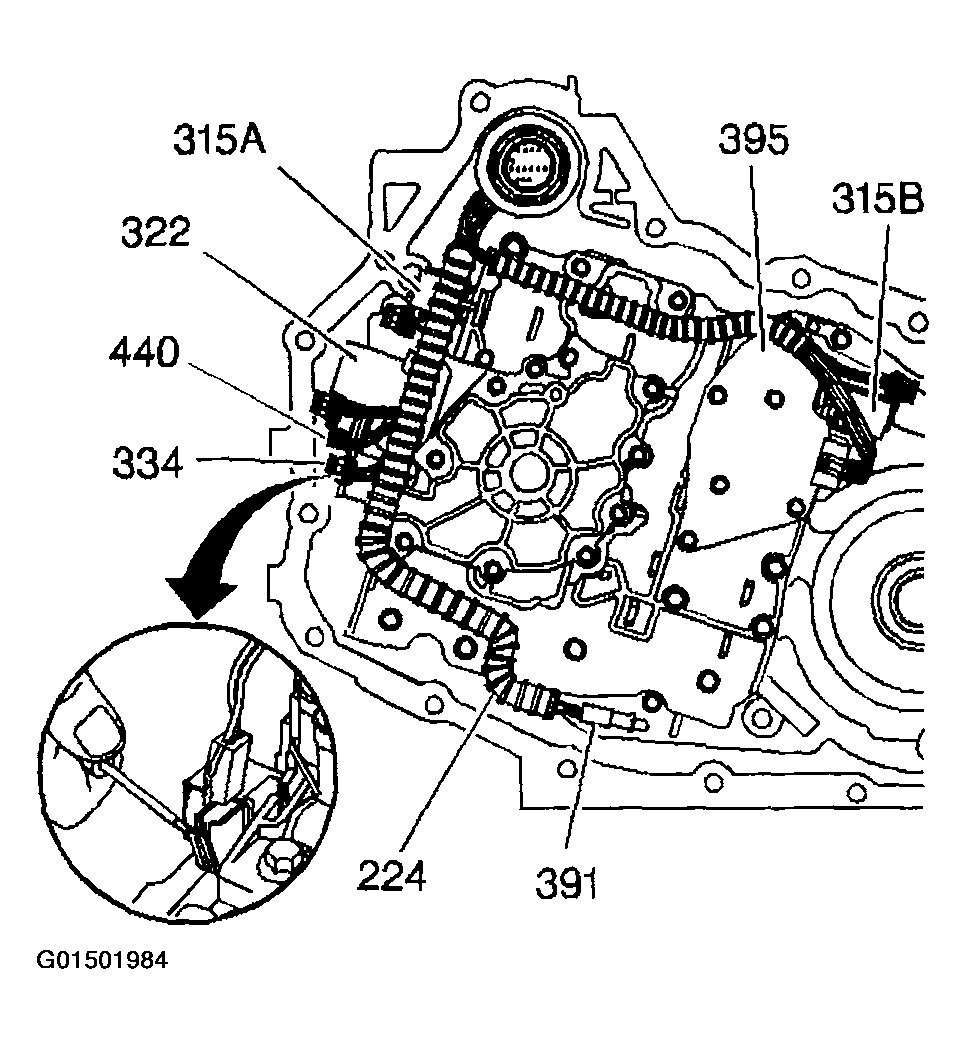

    Fig 1: Removing Fluid Temperature Sensor (1 Of 2)
    G01501984Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiring harness (224).

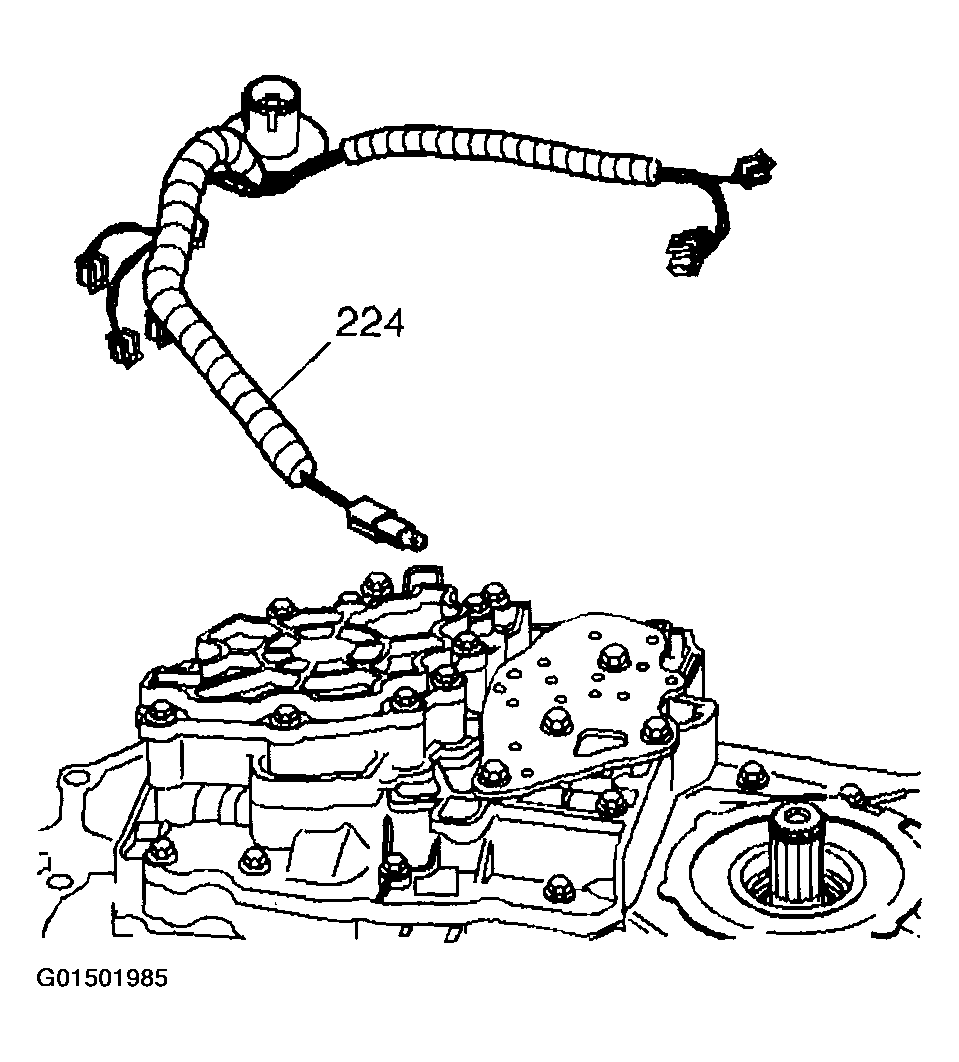

    Fig 2: Removing Fluid Temperature Sensor (2 Of 2)
    G01501985Courtesy of GENERAL MOTORS CORP.
