Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator from the filler tube.
  2. Remove the air cleaner assembly.
  3. Remove the fluid filler tube nut from the EGR valve.
  4. Remove the fluid filler tube bolt from the transaxle.
  5. Remove the fluid filler tube.

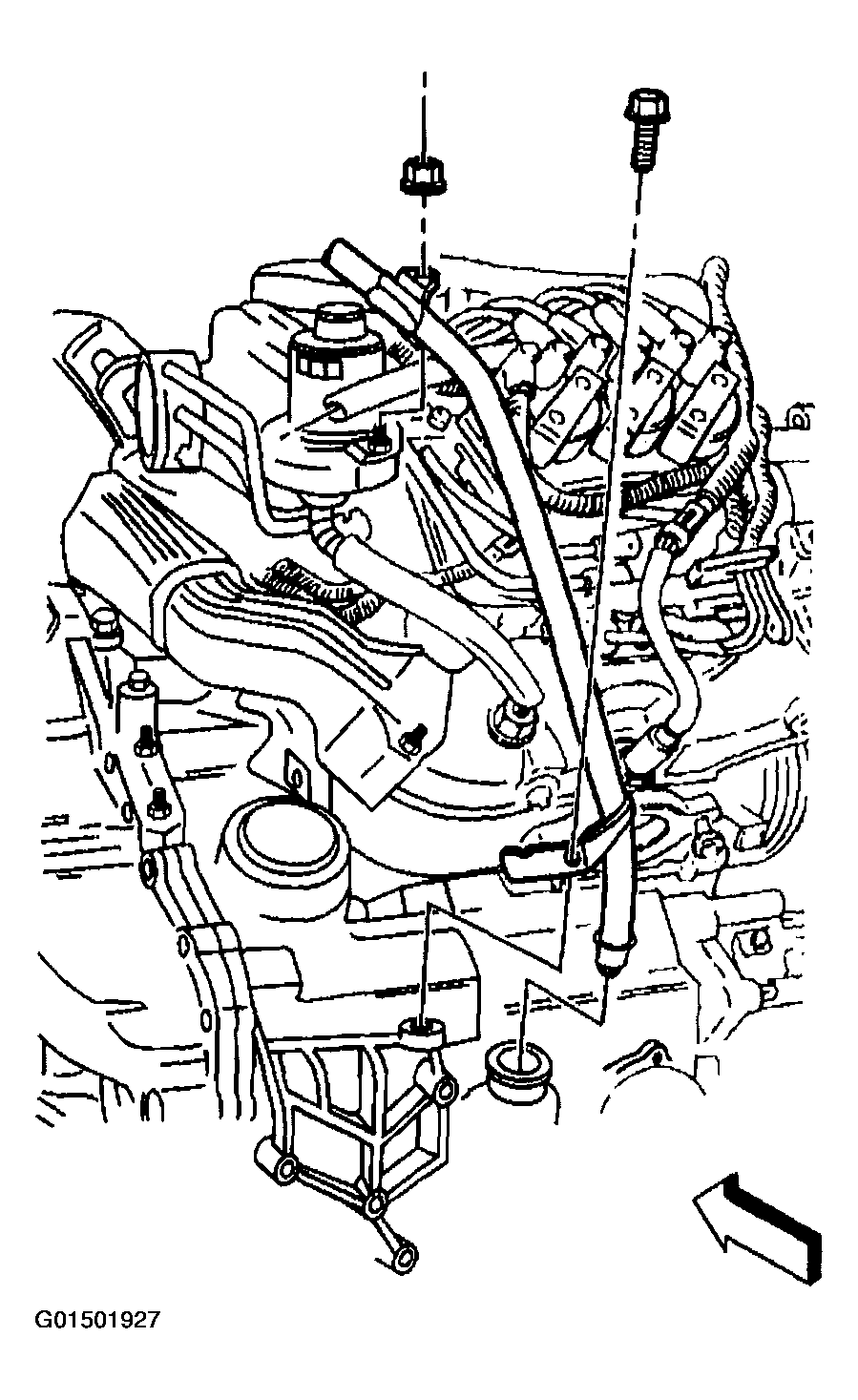

    Fig 1: Removing Fluid Filler Tube
    G01501927Courtesy of GENERAL MOTORS CORP.
