Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do NOT place the fluid filler tube seal on the fluid filler tube when installing the tube or damage to the seal will result.

  1. Install the fluid filler tube seal in the transaxle.
  2. Install the fluid filler tube.

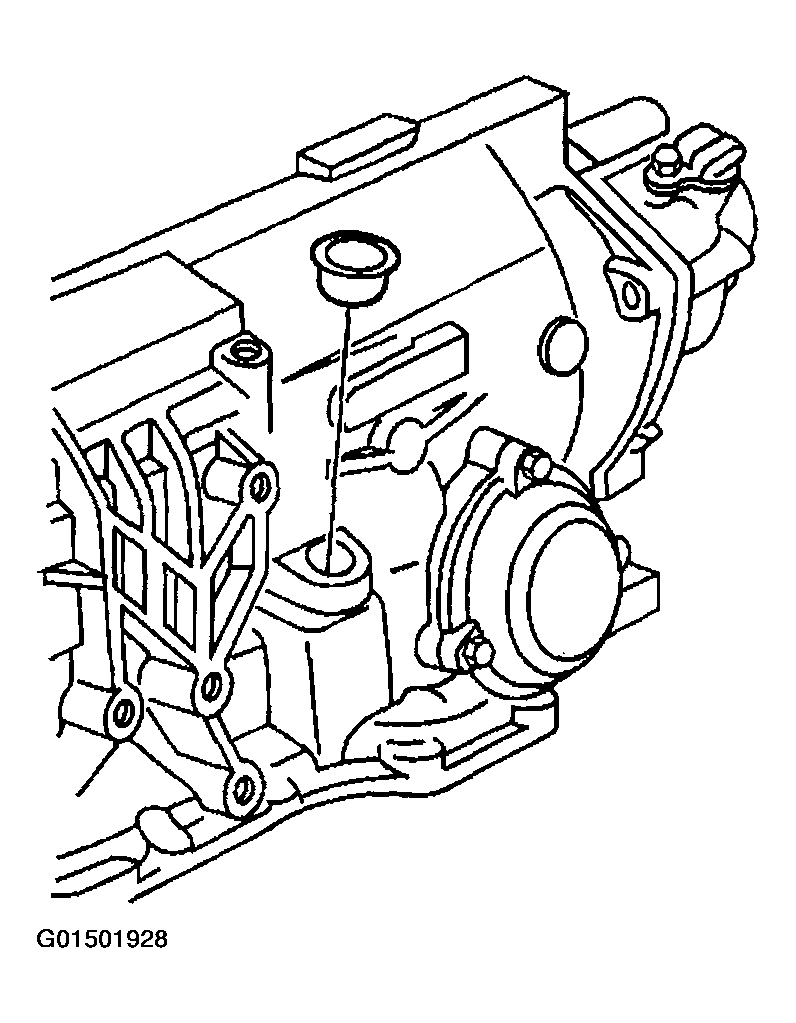

    Fig 1: Installing Fluid Filler Tube (1 Of 2)
    G01501928Courtesy of GENERAL MOTORS CORP.
  3. Install the fluid filler tube bolt.

    Tighten

    Tighten the bolt to 13 N.m (115 Ib. in).

  4. Install the fluid filler tube nut.

    Tighten

    Tighten the nut to 13 N.m (115 Ib. in).

  5. Inspect and adjust the fluid level as needed. Refer to the following information:

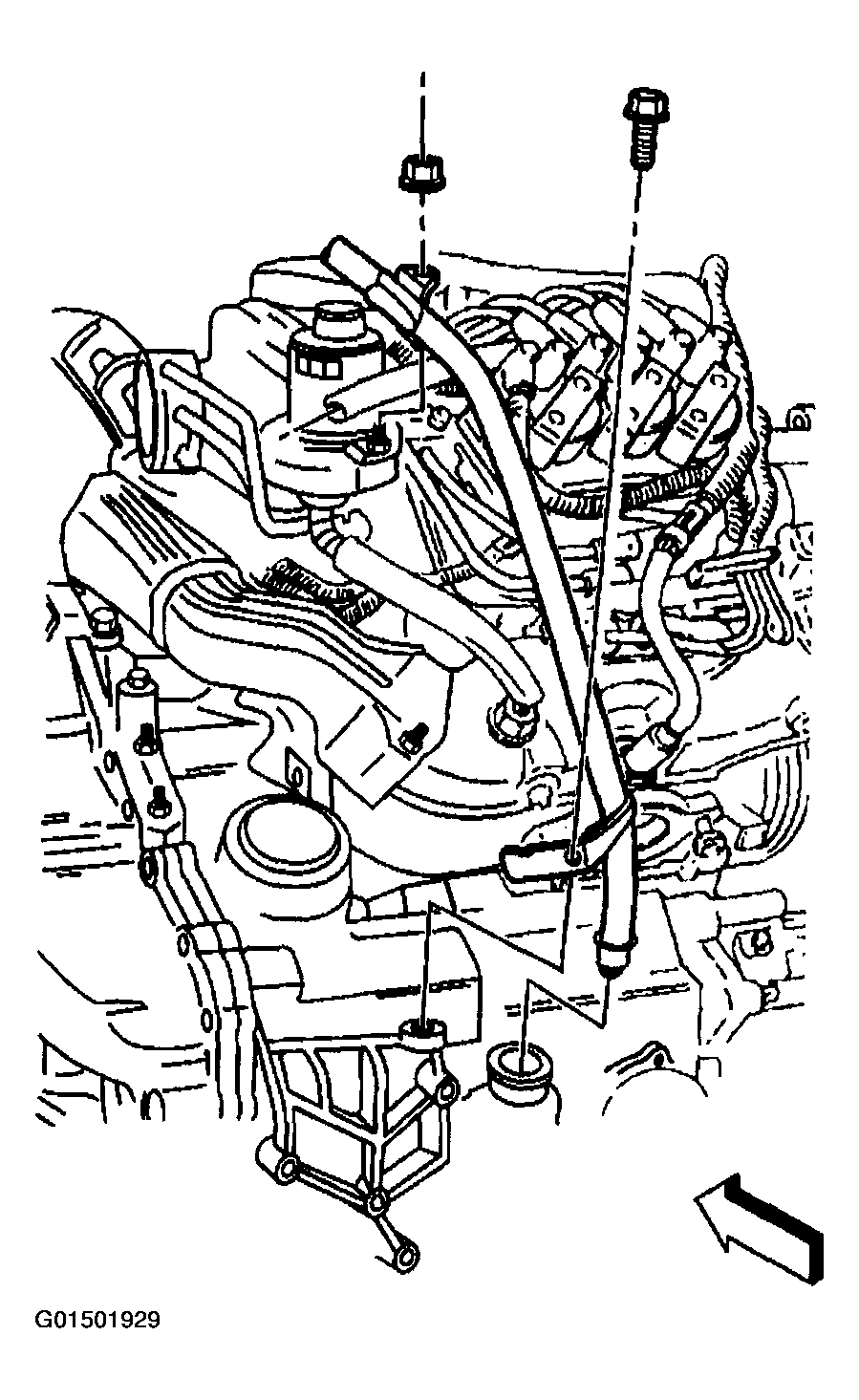

    Fig 2: Installing Fluid Filler Tube (2 Of 2)
    G01501929Courtesy of GENERAL MOTORS CORP.
