Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift control.
  2. Install the shift control nuts.

    Tighten

    Tighten the nuts to 10 N.m (89 Ib. in).

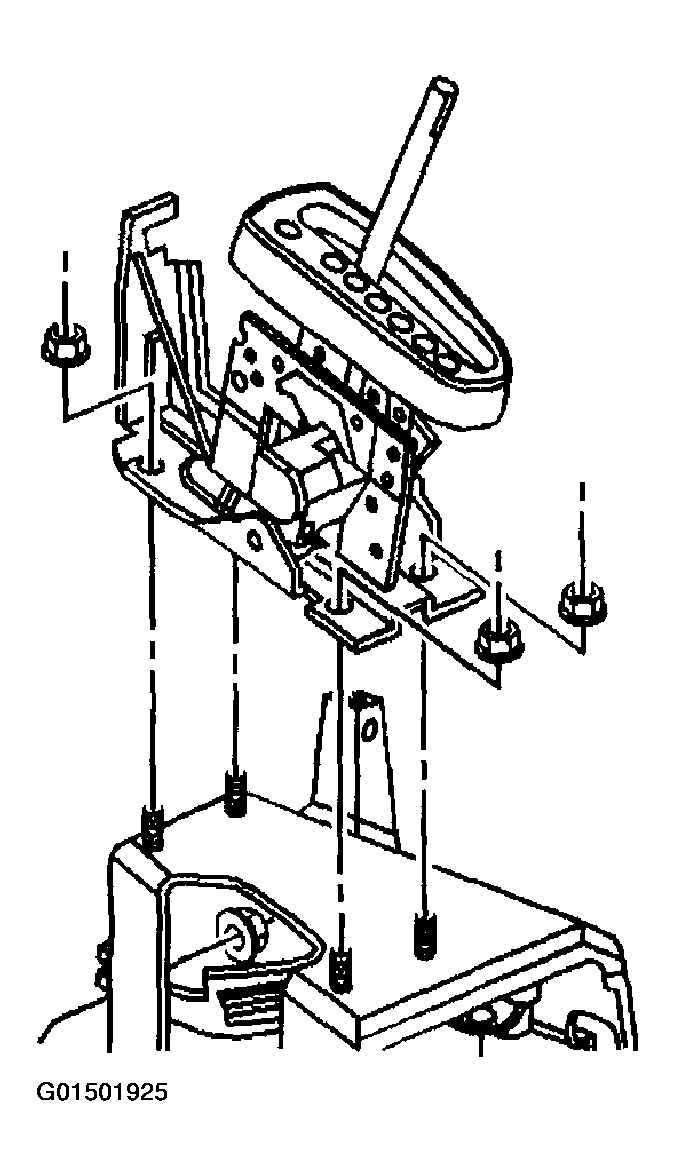

    Fig 1: Installing Floor Shift Control (1 Of 2)
    G01501925Courtesy of GENERAL MOTORS CORP.
  3. Install the shift cable to the shift control.
  4. Install the shift control wire harness to the shift control.
  5. Adjust the shift control cable as necessary. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT  .
  6. Install the console trim plate. Refer to TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE (AZTEK) or TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE (RENDEZVOUS) .

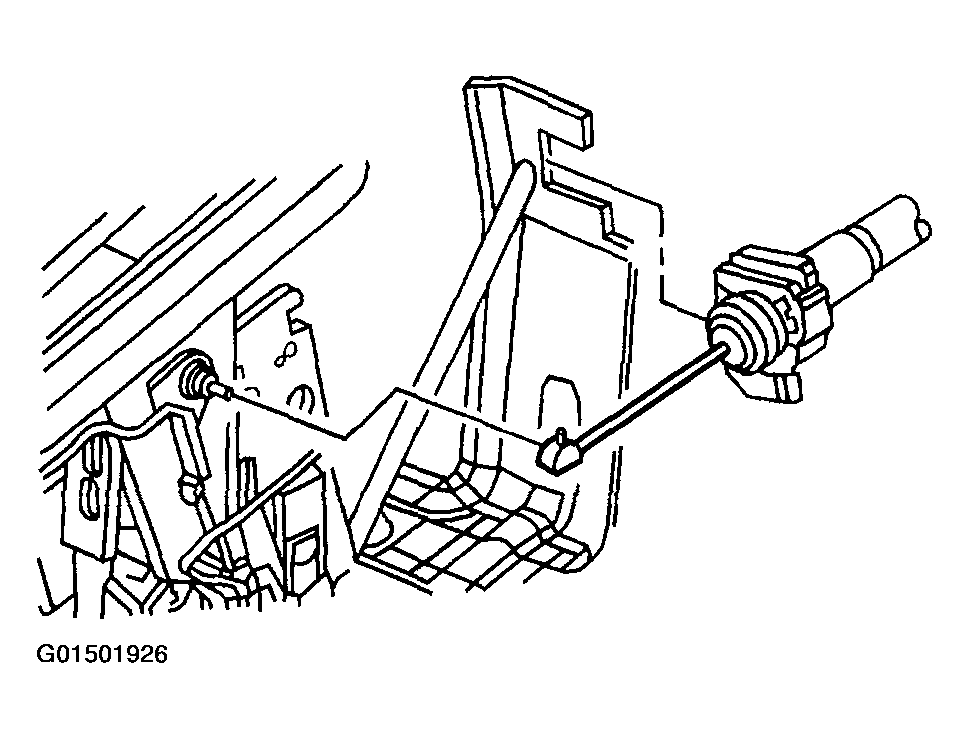

    Fig 2: Installing Floor Shift Control (2 Of 2)
    G01501926Courtesy of GENERAL MOTORS CORP.
