Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the right front tire and wheel.
  3. Remove the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT -- ENGINE .
  4. Remove the transaxle brace bolts.
  5. Remove the transaxle brace.

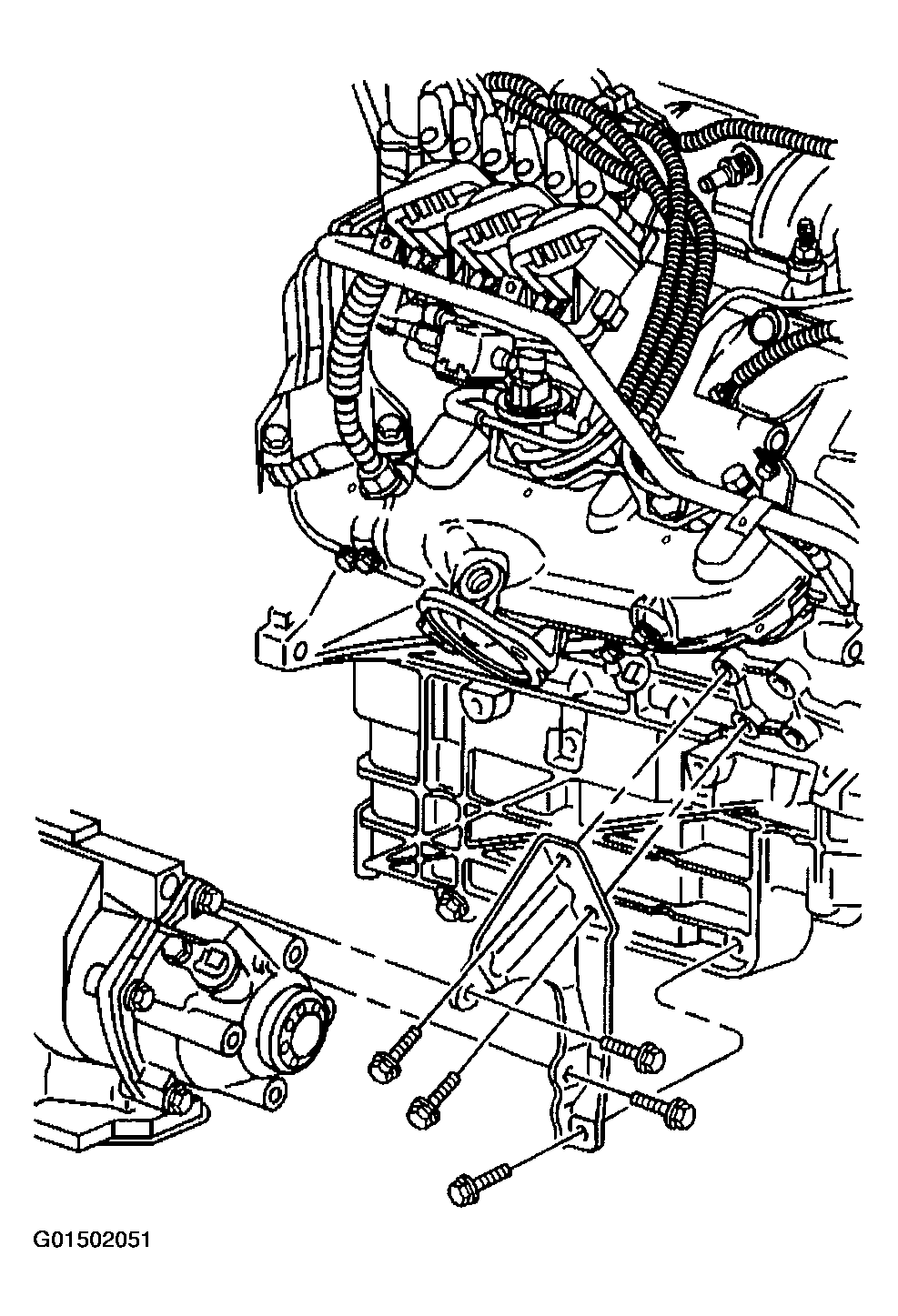

    Fig 1: Removing Transaxle Brace Bolts
    G01502051Courtesy of GENERAL MOTORS CORP.
