Scan Tool Output Controls

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

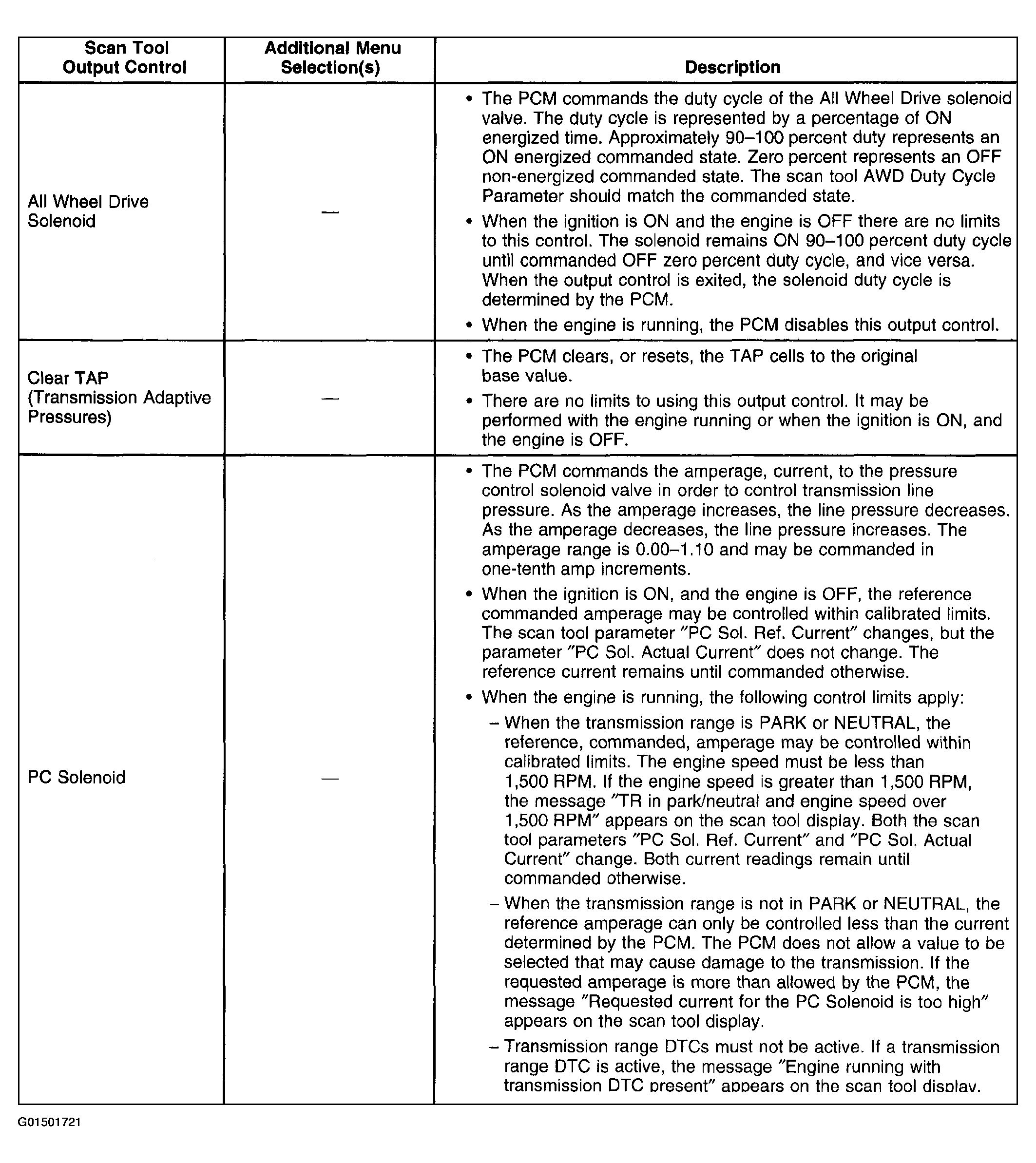

Fig 1: Scan Tool Output Controls (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

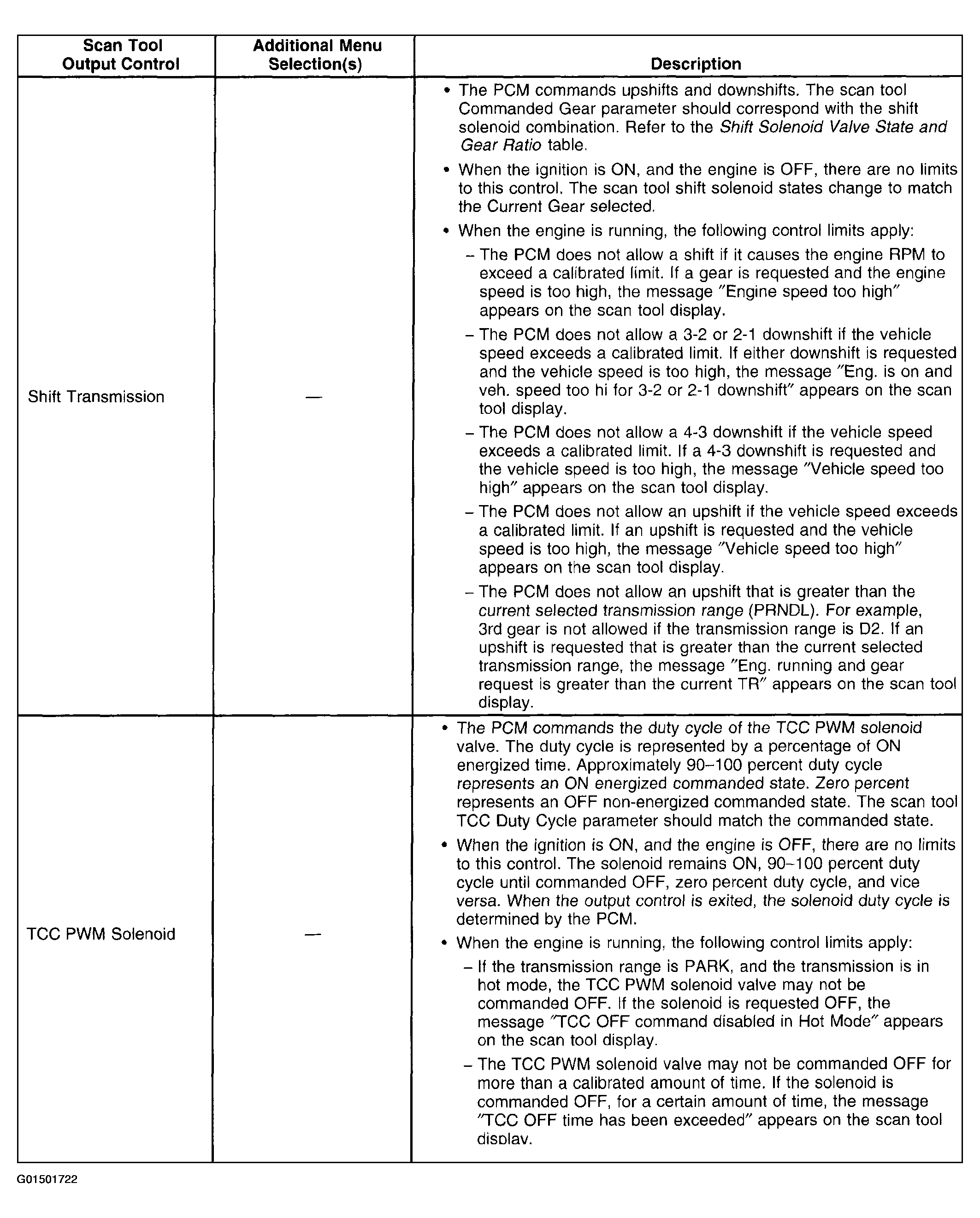

Fig 2: Scan Tool Output Controls (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

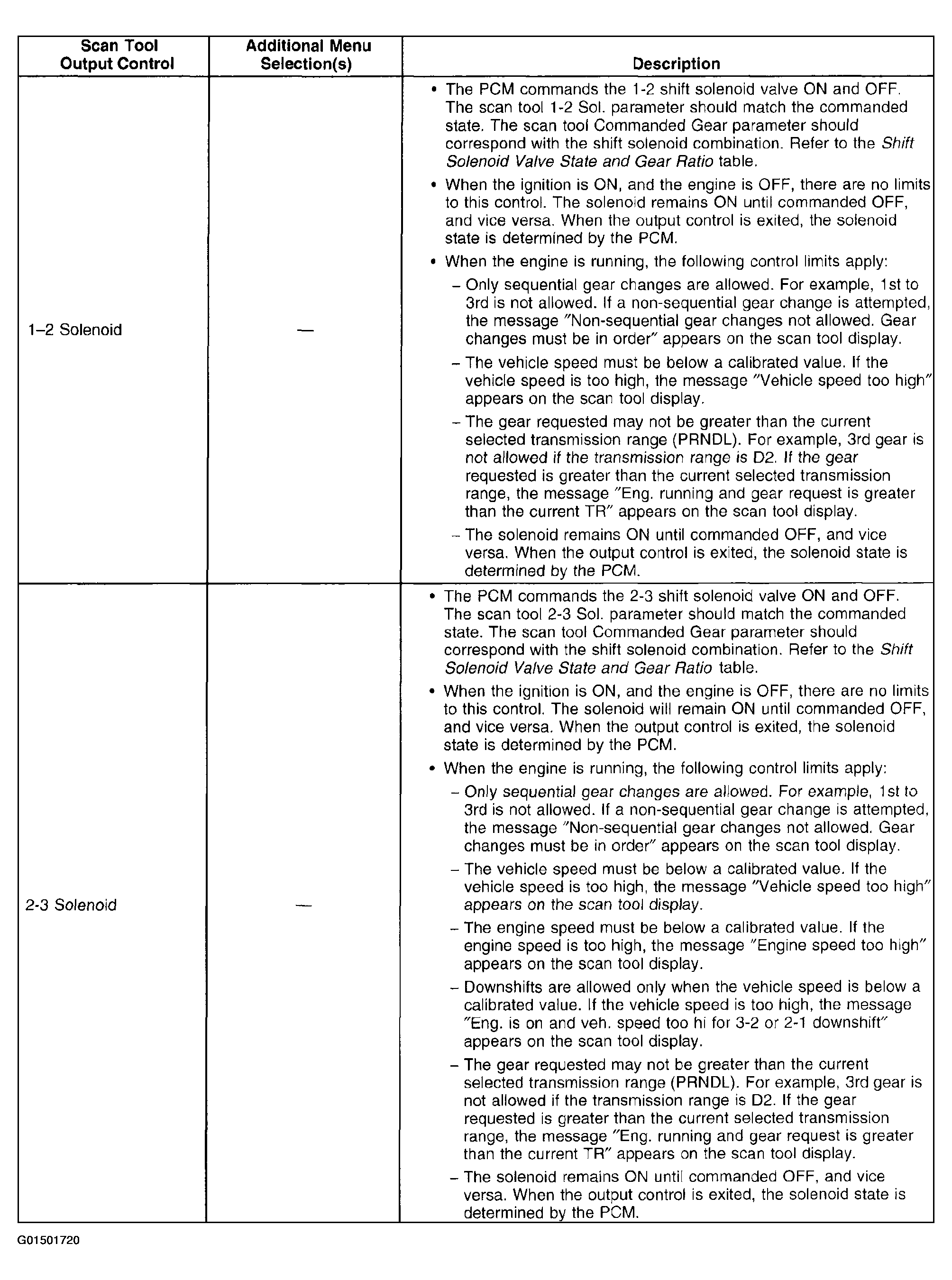

Fig 3: Scan Tool Output Controls (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
