Delayed Park to Reverse/Drive Engagement

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

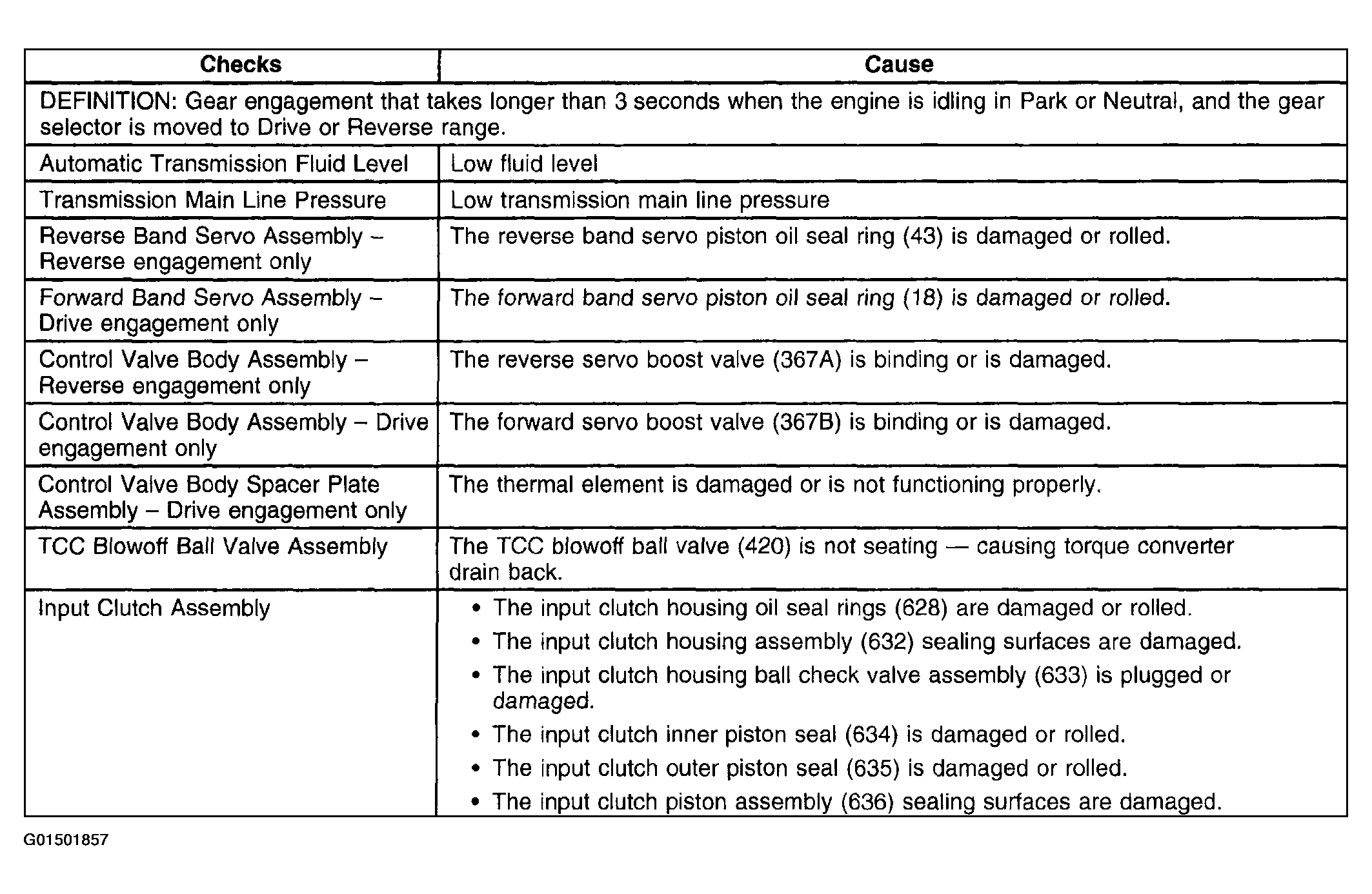

Fig 1: Delayed Park To Reverse/Drive Engagement Diagnosis
G01501857Courtesy of GENERAL MOTORS CORP.
