Test Description

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table

  1. 3. If the scan tool indicates Closed in Step 2, and Open when the TCC brake switch is disconnected, the switch is stuck closed.

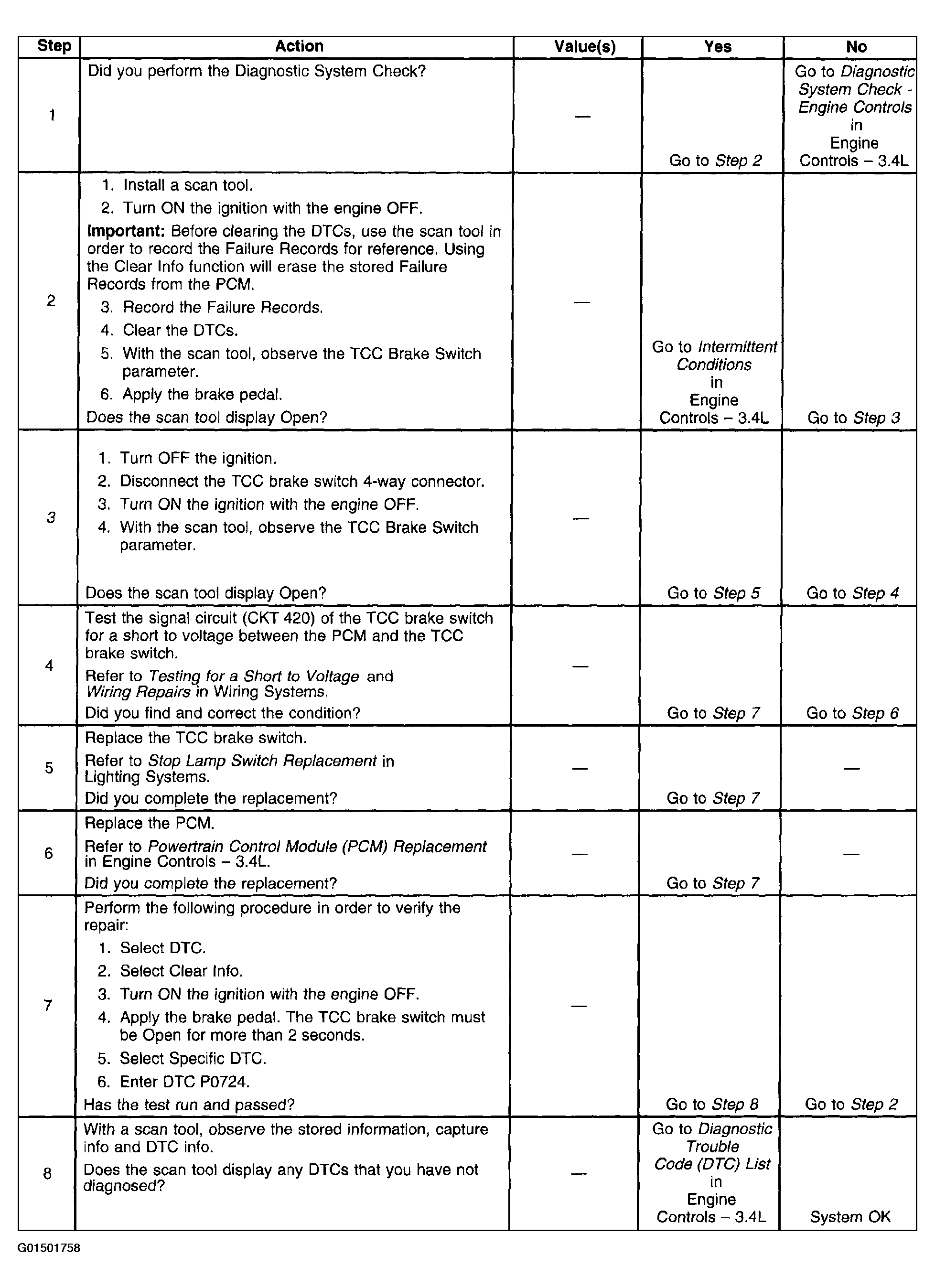

Fig 1: DTC P0724 Diagnosis
G01501758Courtesy of GENERAL MOTORS CORP.
