Forward Flush

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

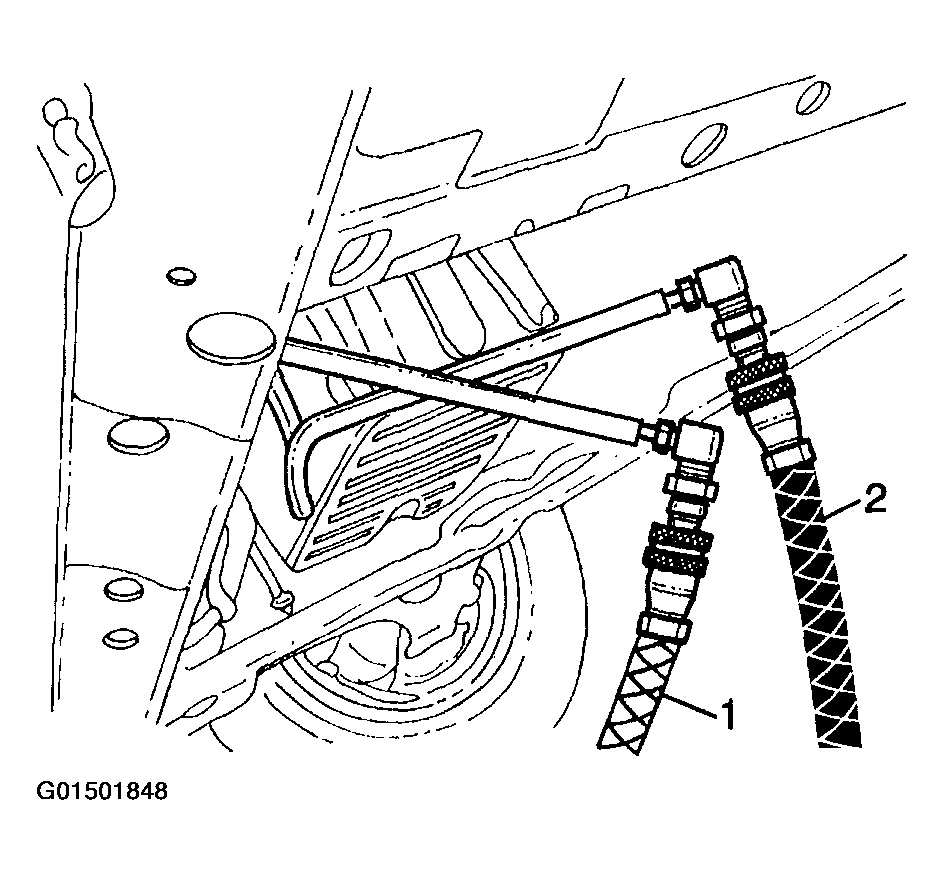

Fig 1: Identifying Forward Flush (1 Of 2)
G01501848Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the supply and waste hoses from the vehicle cooler lines. Reverse the supply and waste hoses to provide a normal flow direction.

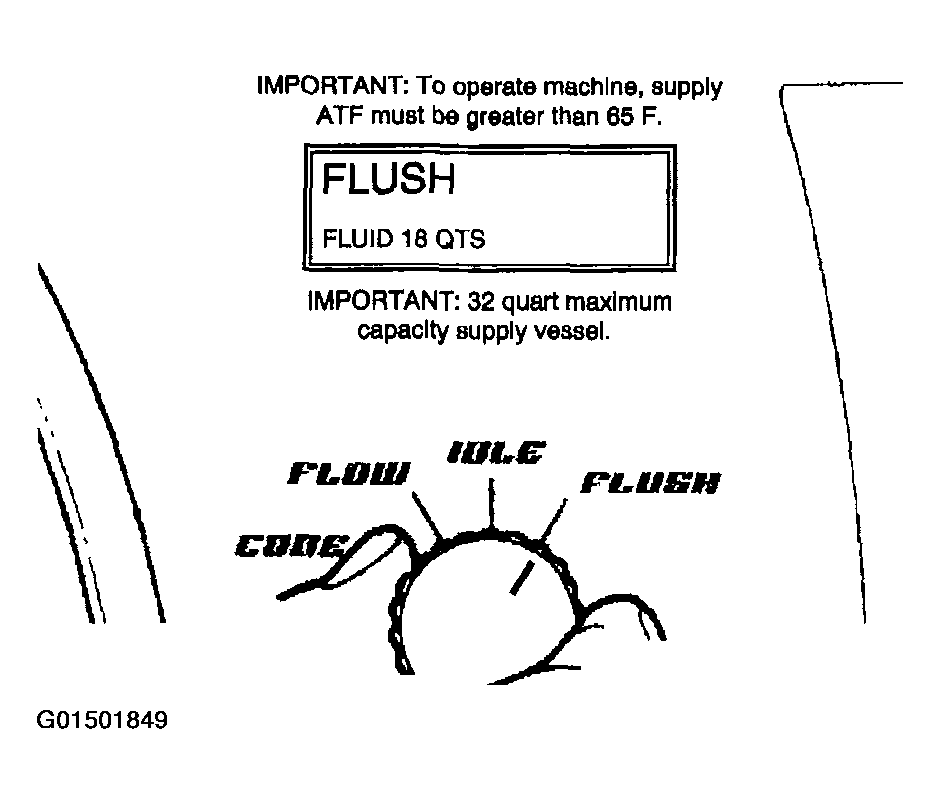

    Fig 2: Identifying Forward Flush (2 Of 2)
    G01501849Courtesy of GENERAL MOTORS CORP.
  2. Turn the main function switch to the FLUSH position and allow machine to operate for 30 seconds.
