WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

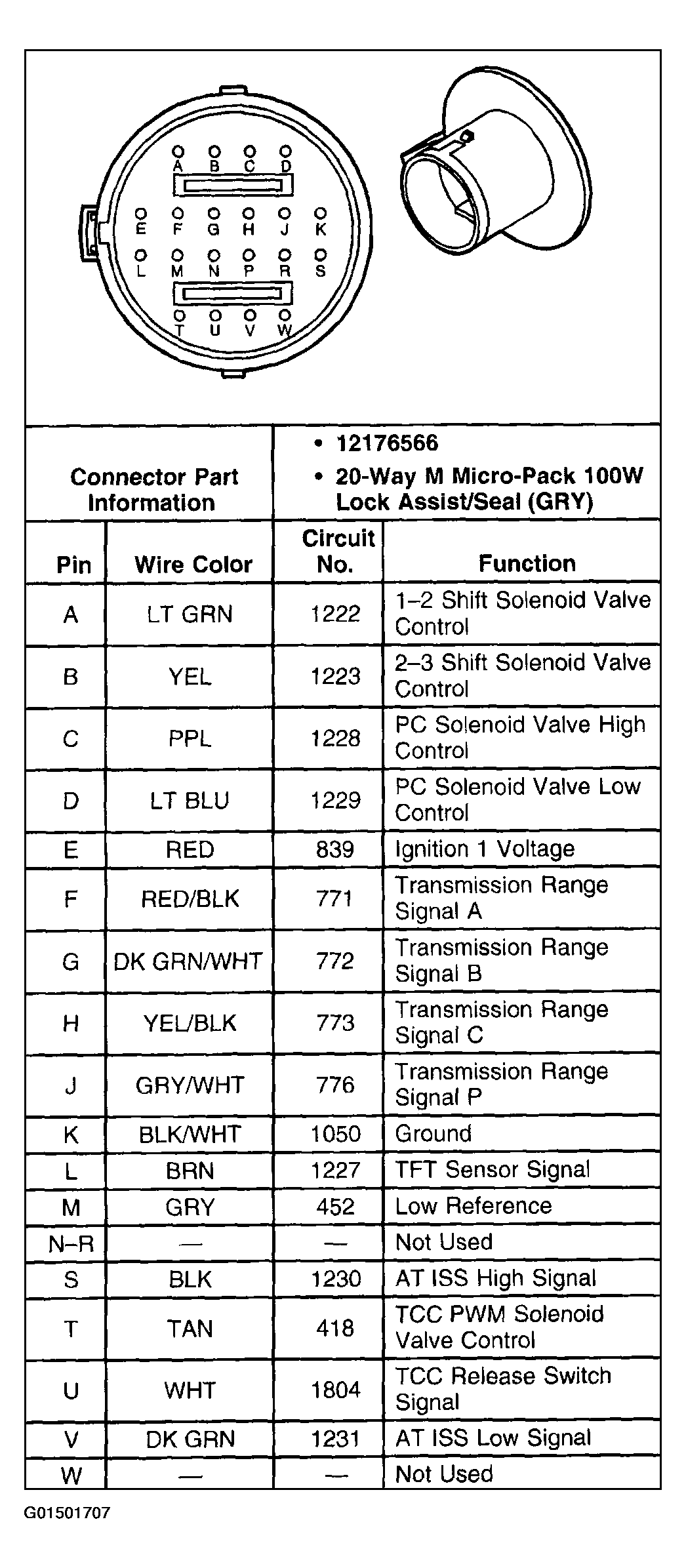

Fig 1: Identifying A/T In-Line 20-Way Connector - Engine Side
Courtesy of GENERAL MOTORS CORP.

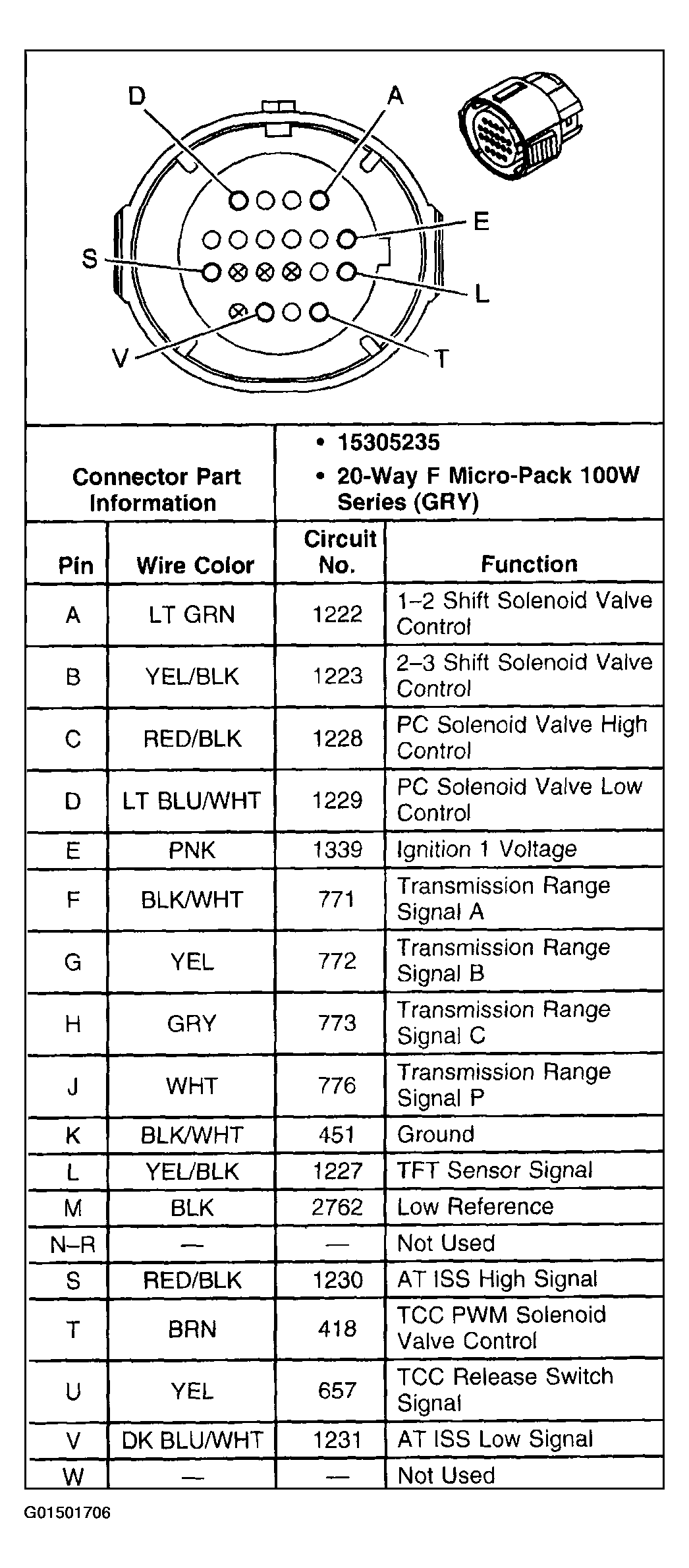

Fig 2: Identifying A/T In-Line 20-Way Connector - Transmission Side
