A/T Related Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

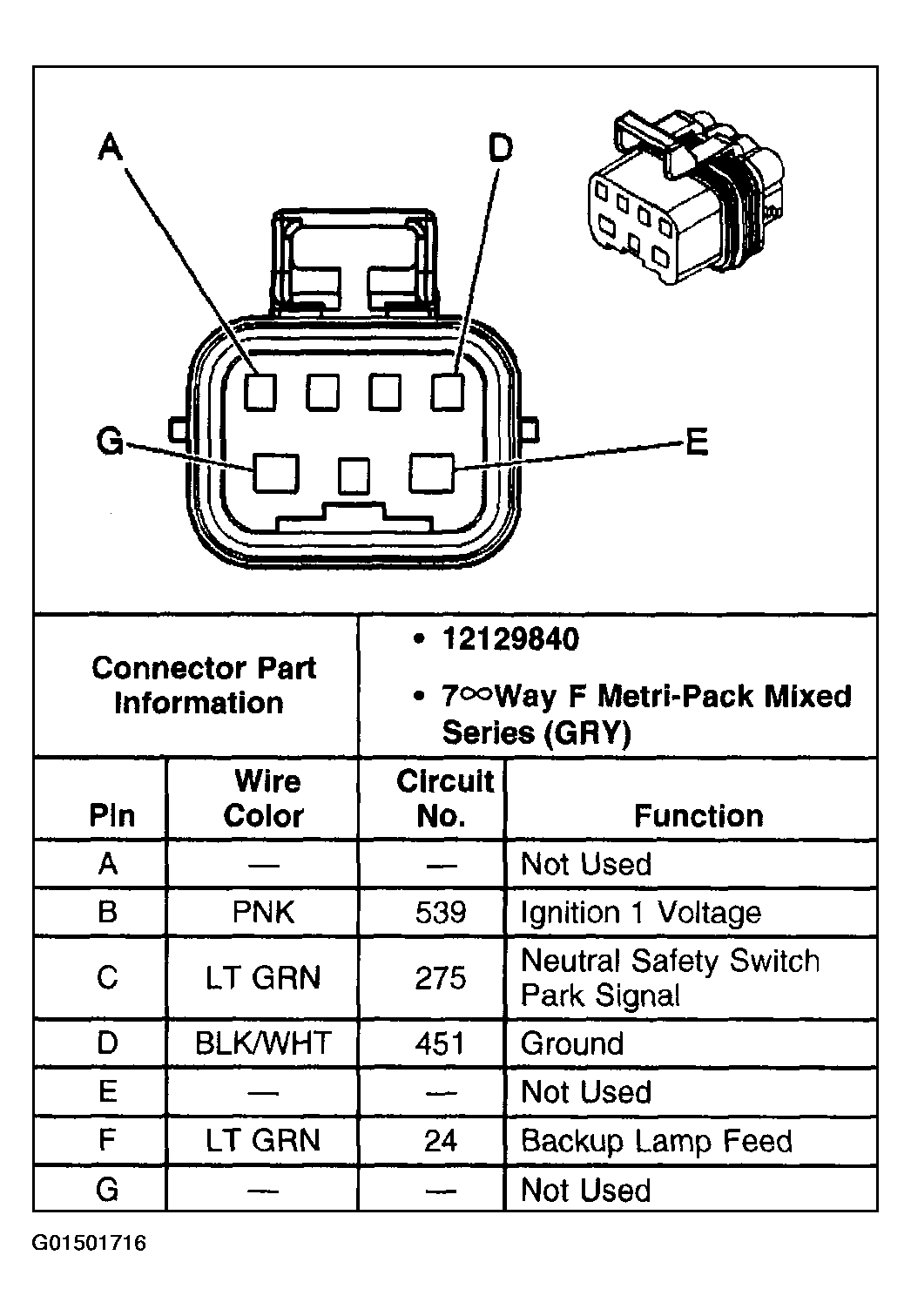

Fig 1: Identifying Transmission Range Switch C1 Connector - Wiring Harness Side
G01501716Courtesy of GENERAL MOTORS CORP.

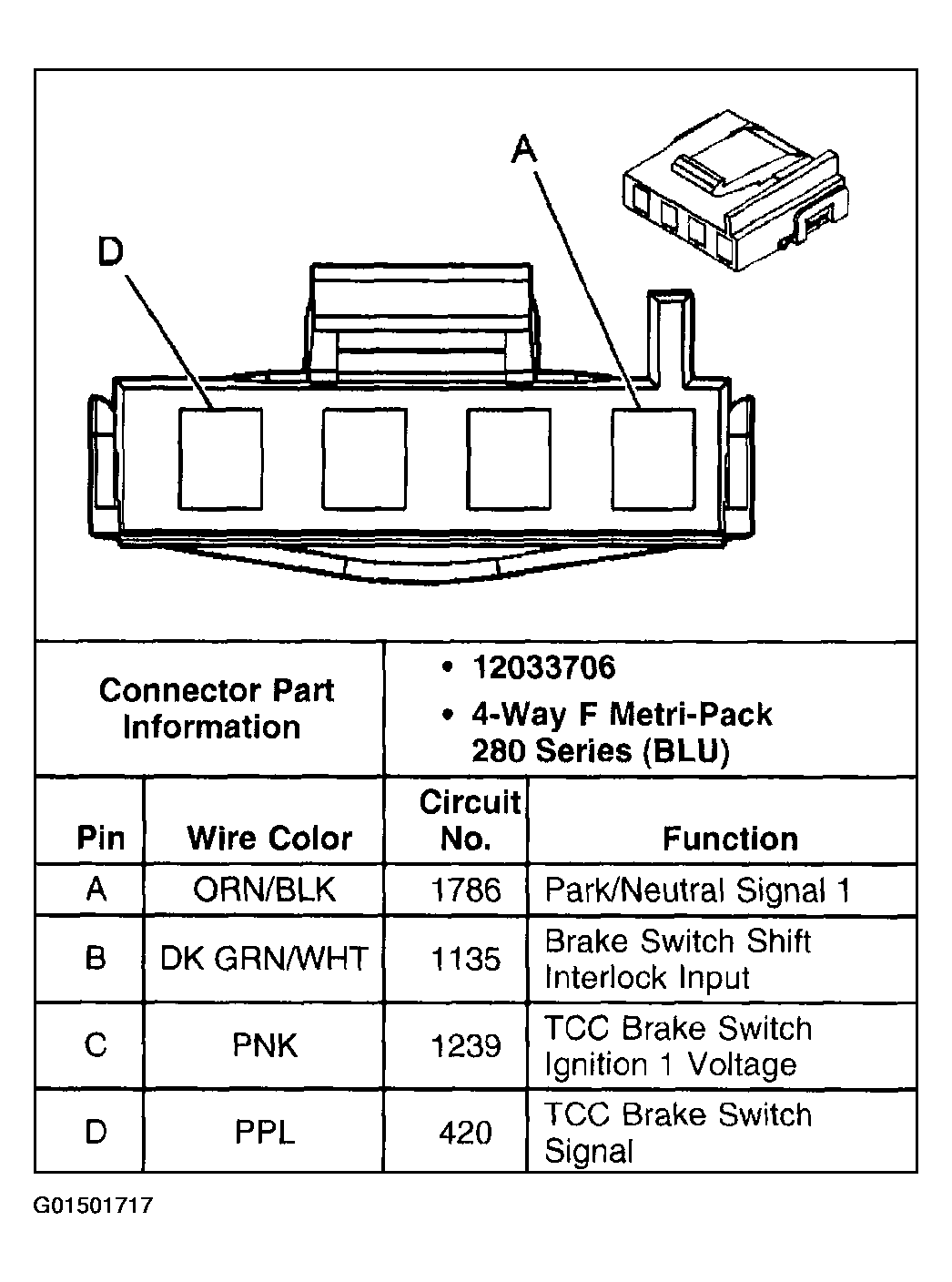

Fig 2: Identifying Transmission Shift Interlock/TCC Brake Switch Connector - Wiring Harness Side
G01501717Courtesy of GENERAL MOTORS CORP.

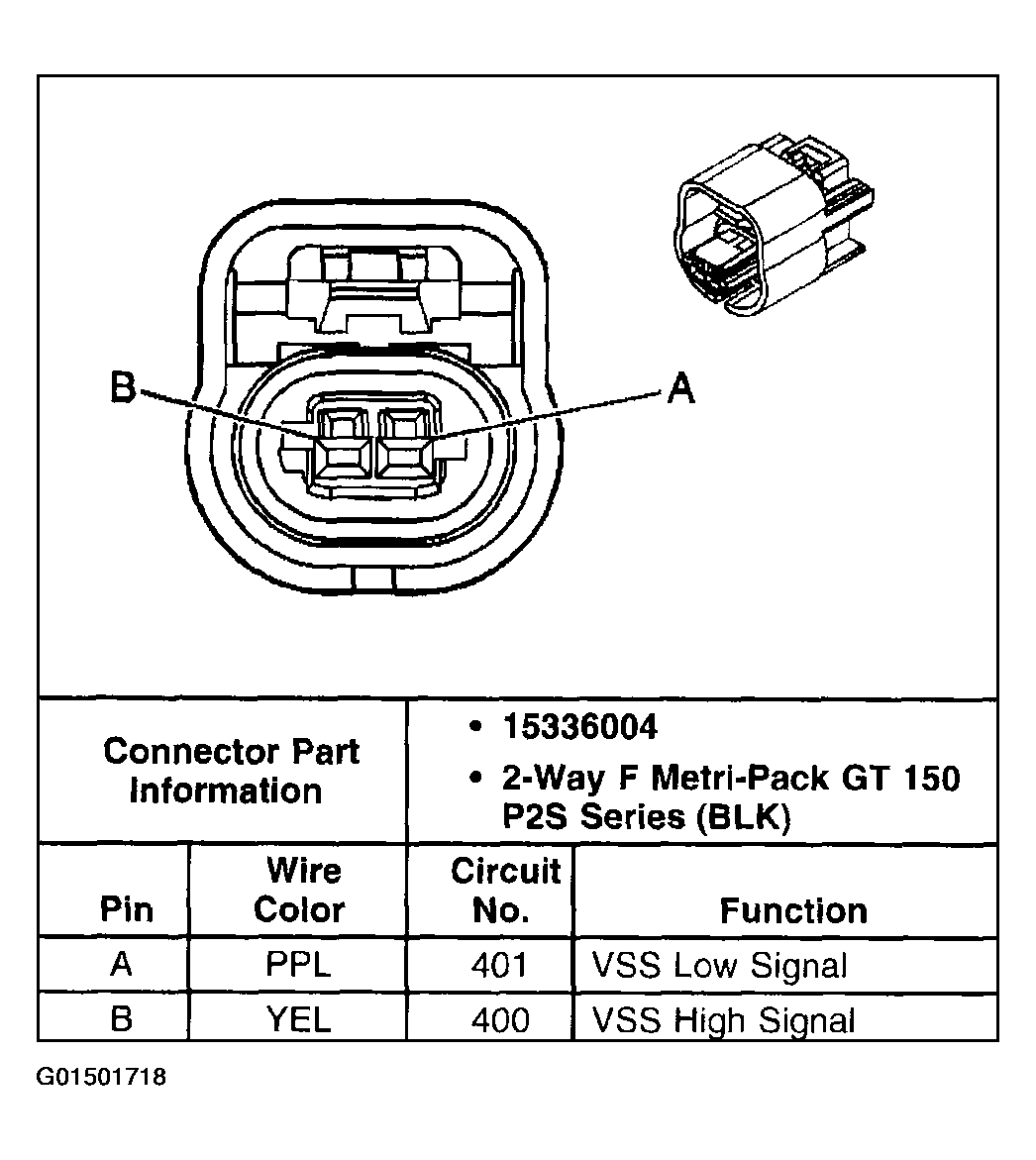

Fig 3: Identifying Vehicle Speed Sensor Connector - Wiring Harness Side
G01501718Courtesy of GENERAL MOTORS CORP.
