A/T Internal Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

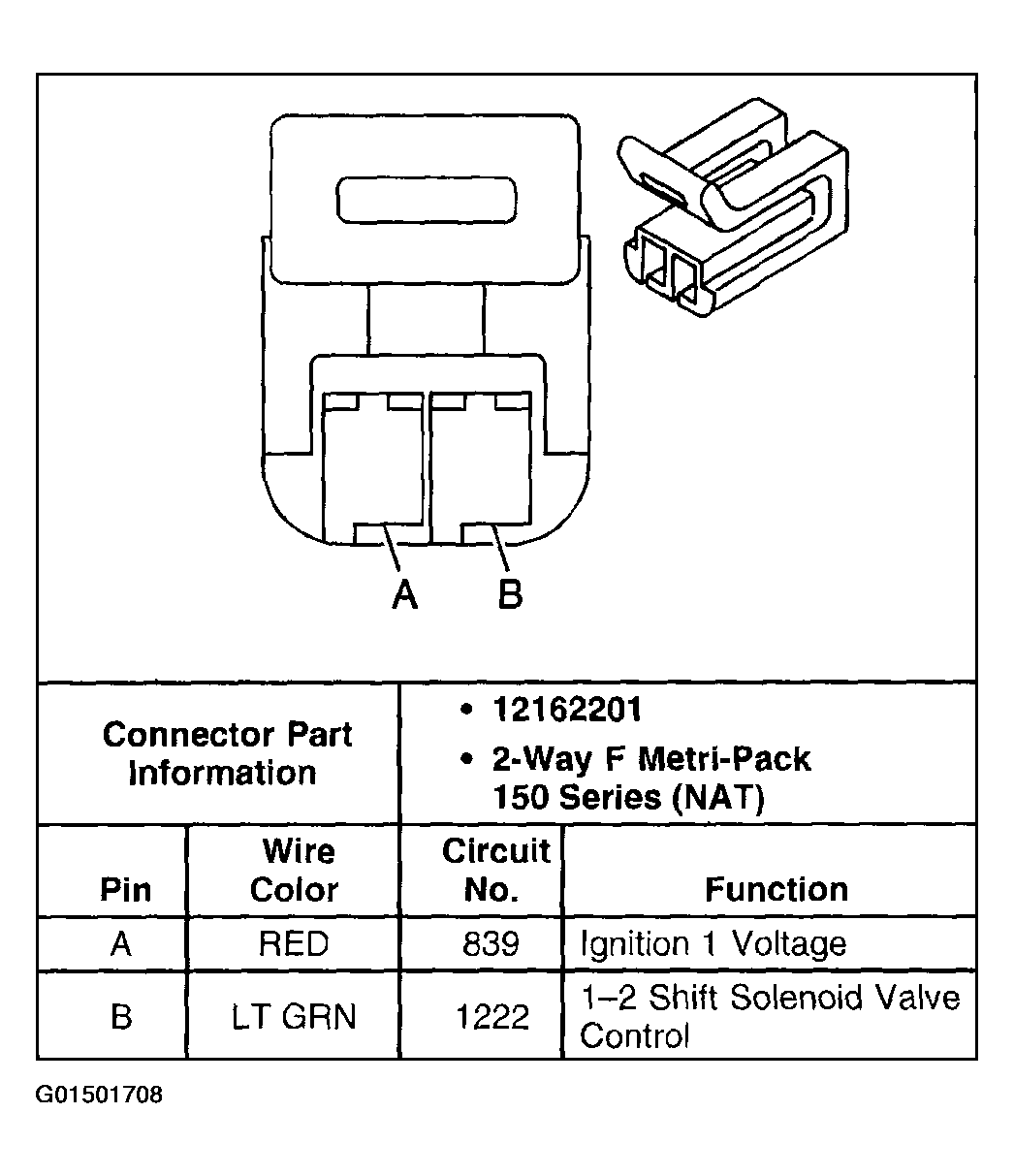

Fig 1: Identifying 1-2 Shift Solenoid Valve Connector - Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

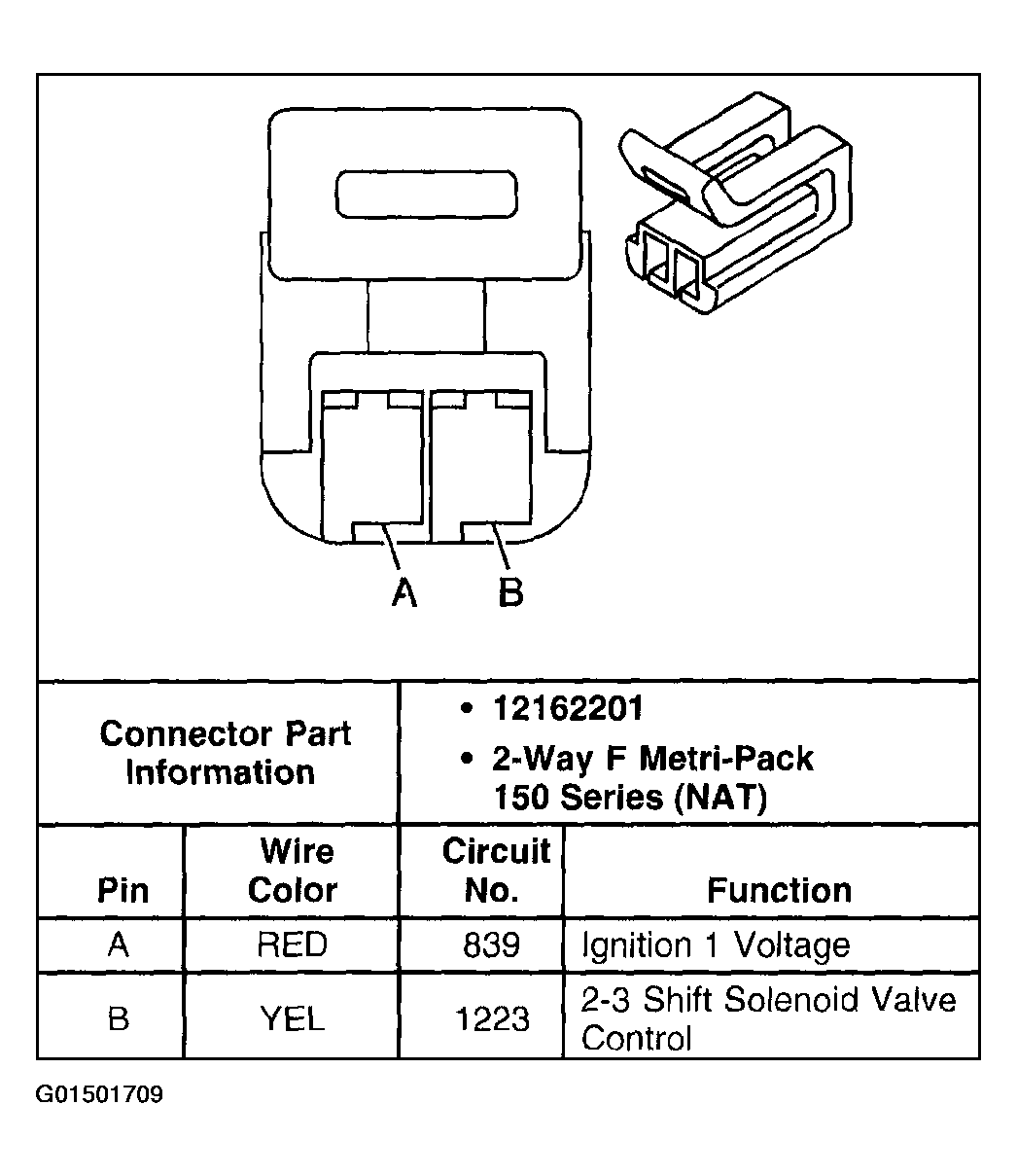

Fig 2: Identifying 2-3 Shift Solenoid Valve Connector - Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

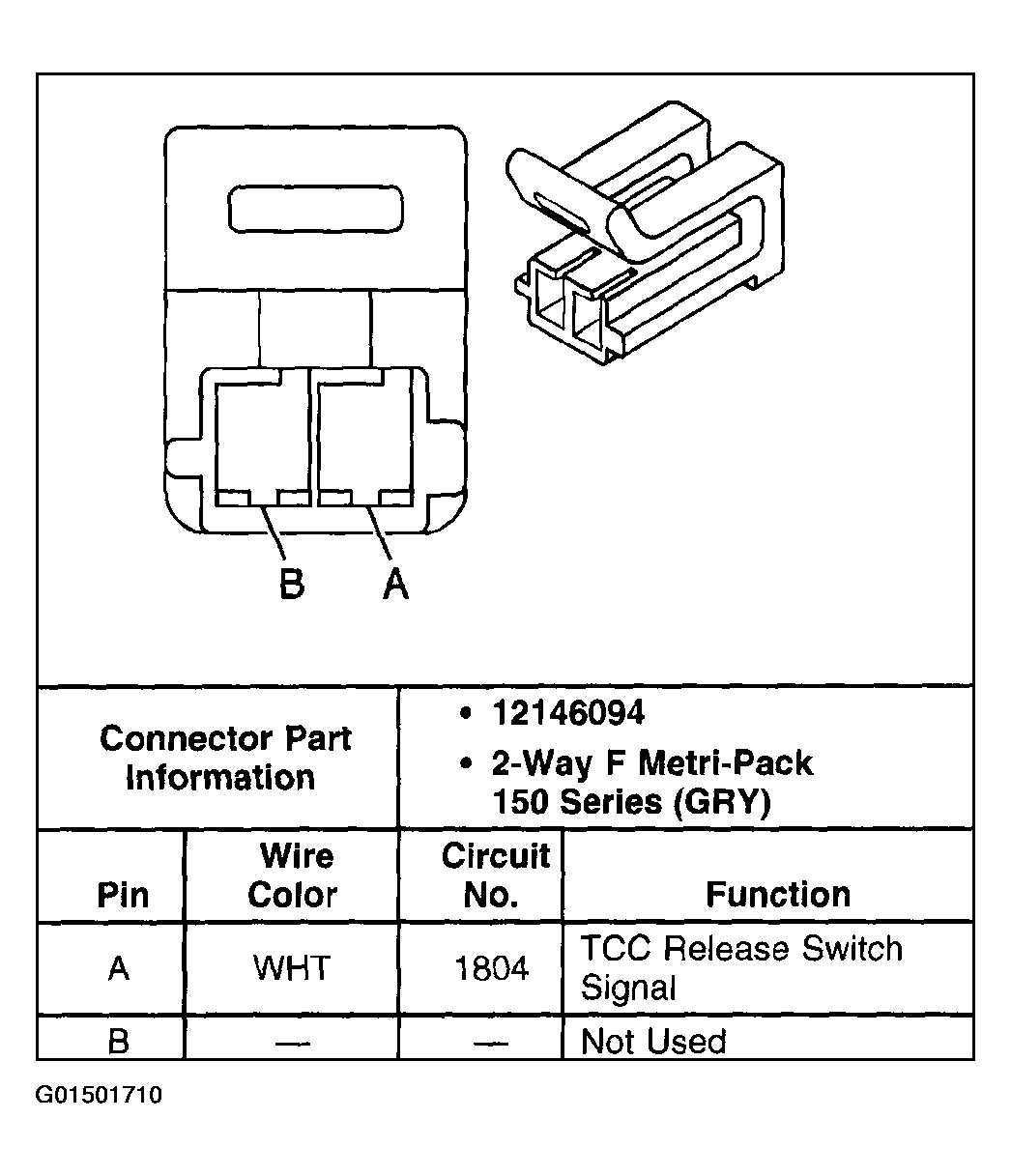

Fig 3: Identifying A/T Fluid Pressure Manual Valve Position Switch Connector - Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

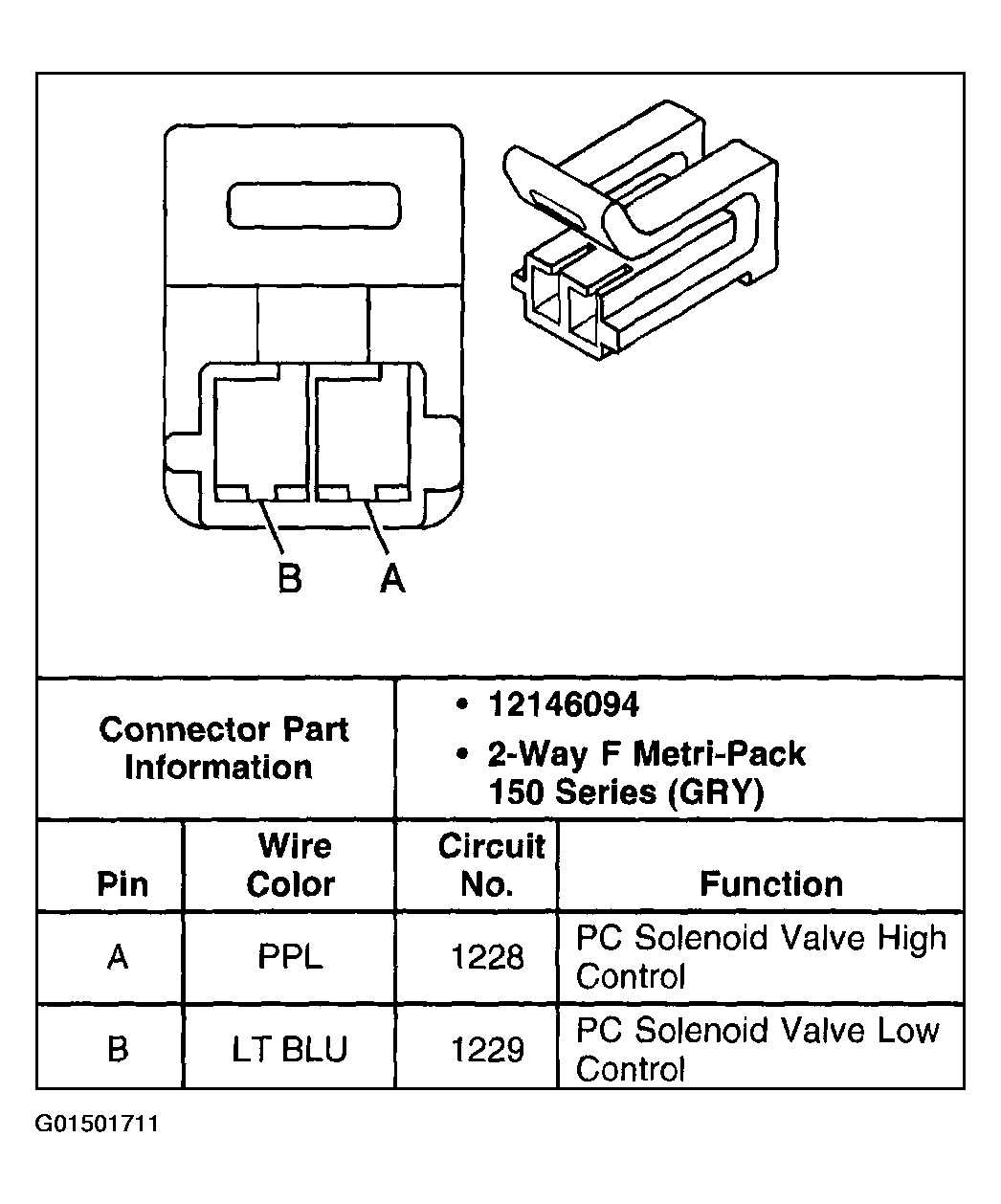

Fig 4: Identifying Pressure Control Solenoid Valve Connector - Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

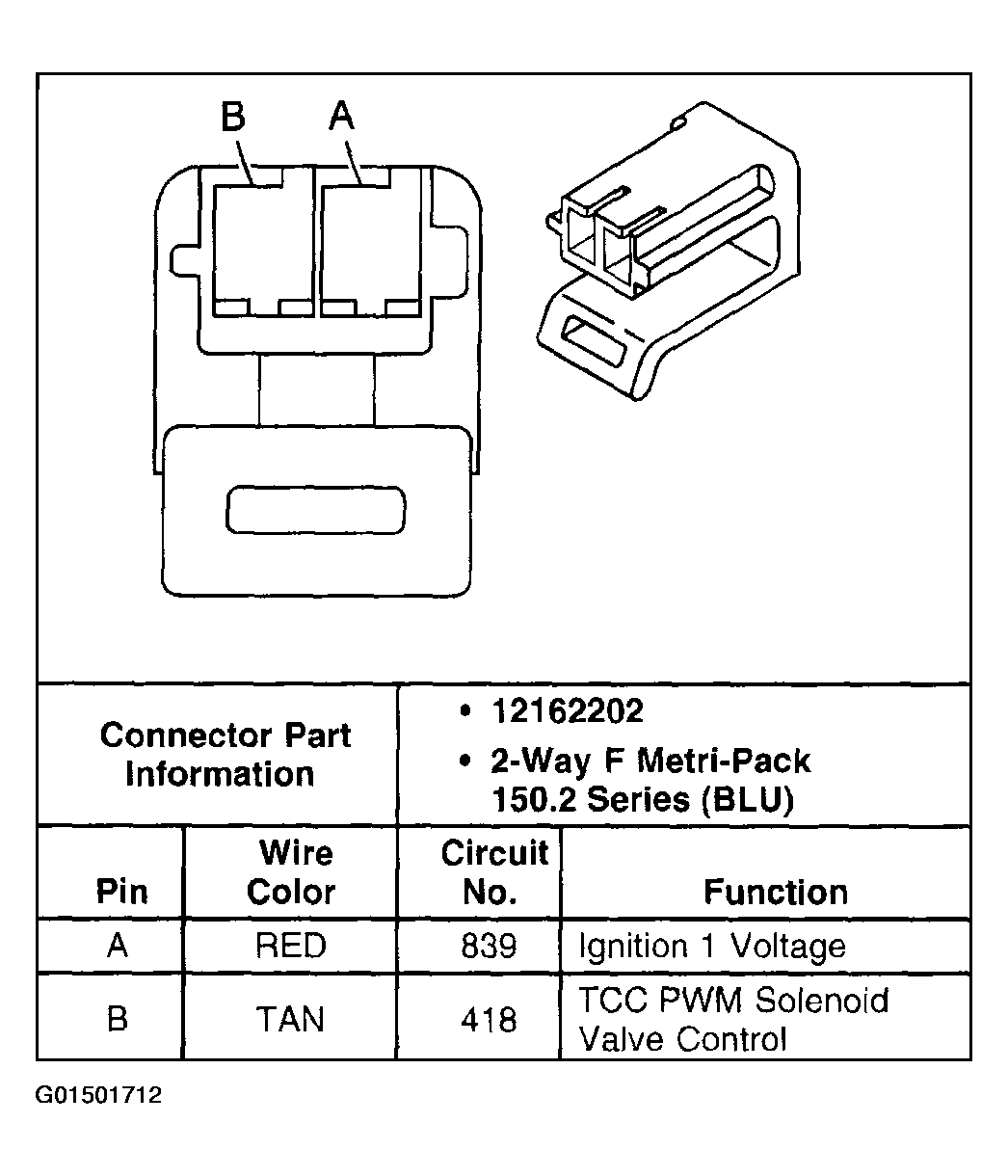

Fig 5: Identifying Torque Converter Clutch Pulse Width Modulated Solenoid Valve Connector - Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

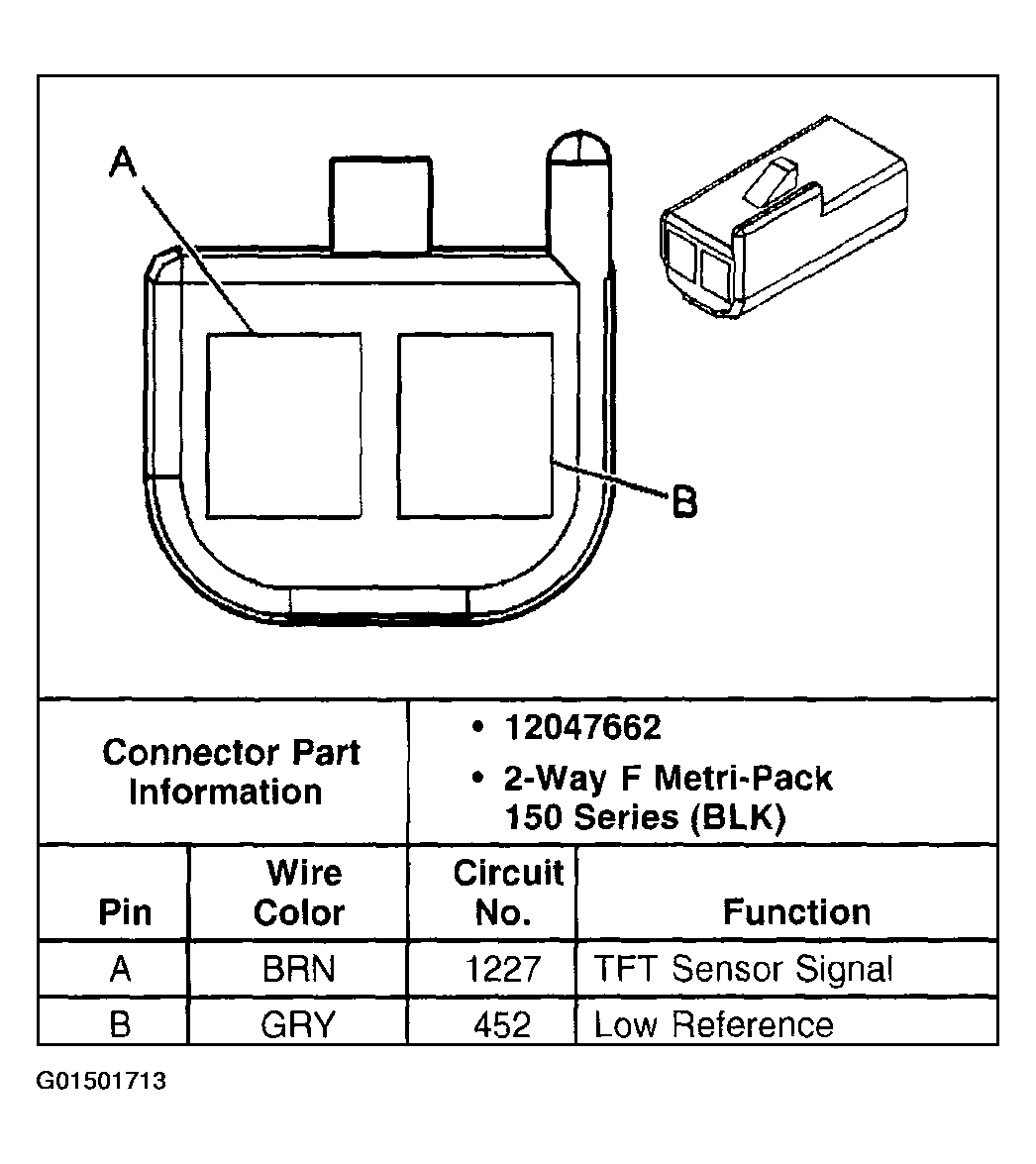

Fig 6: Identifying Transmission Fluid Temperature Sensor Connector - Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

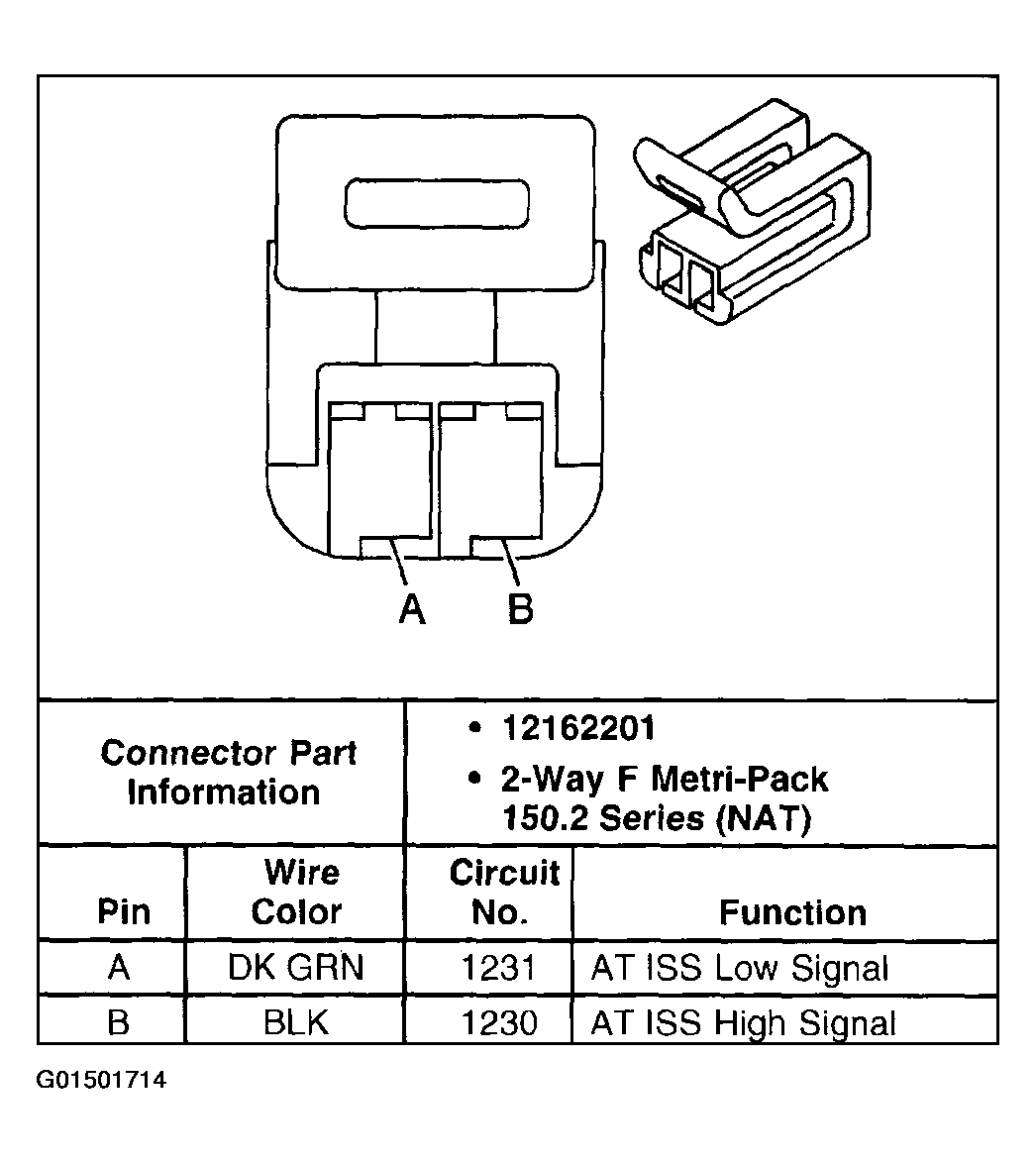

Fig 7: Identifying Input Speed Sensor Connector - Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

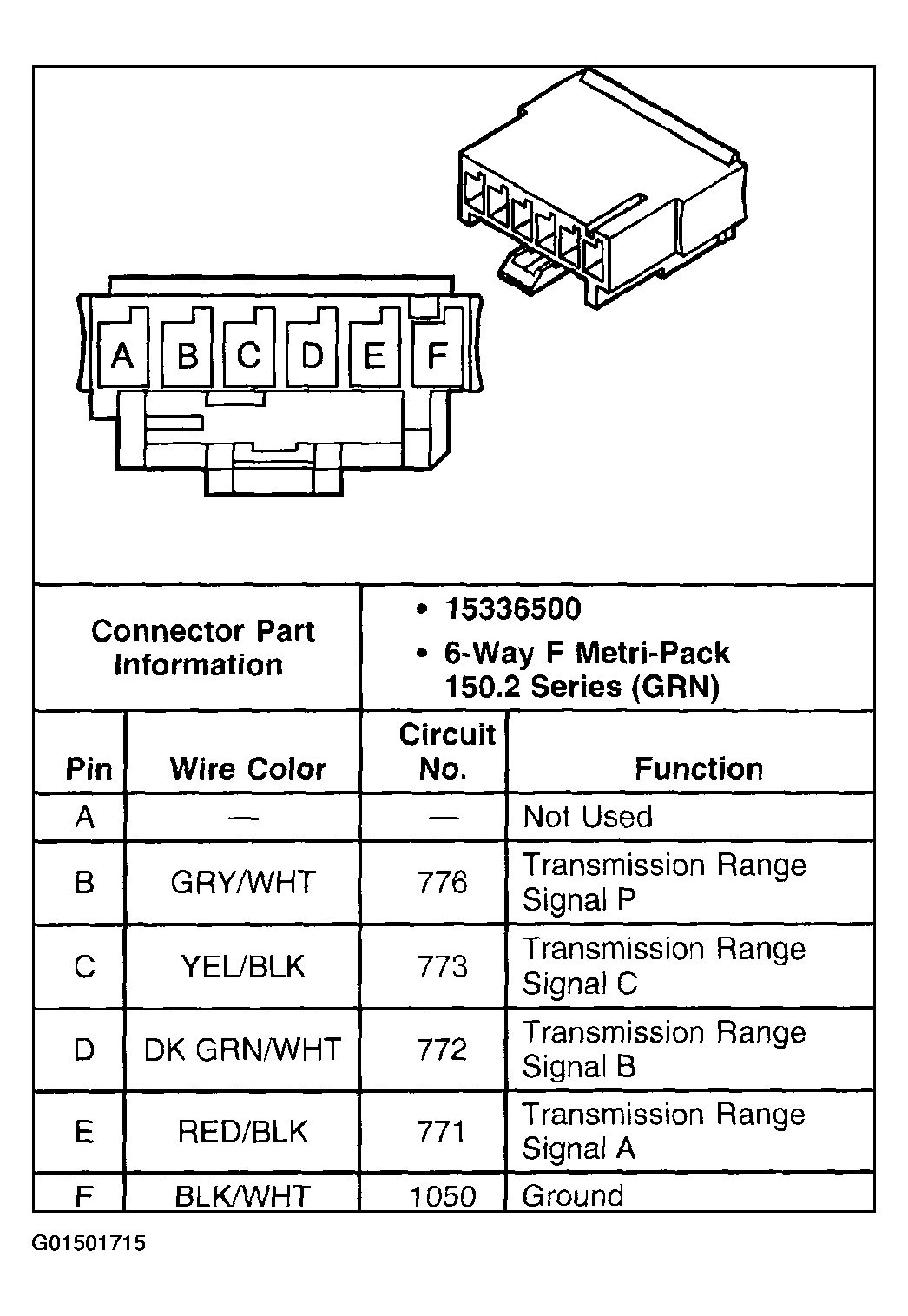

Fig 8: Identifying Transmission Internal Mode Switch Connector - Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
