Installing Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the relay (2) in the same position as removed.
  2. Install the electrical center cover.

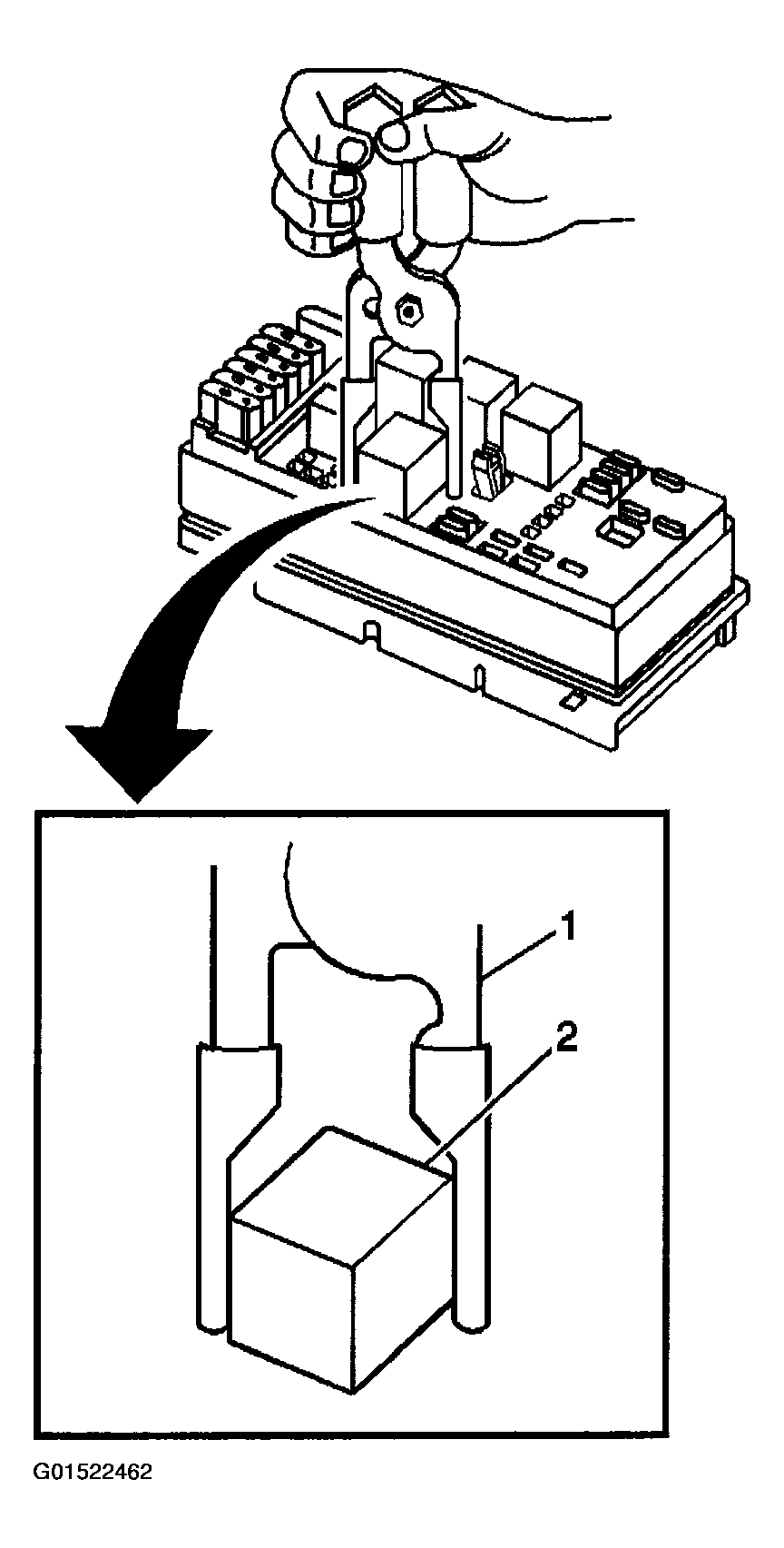

    Fig 1: Installing Procedure Relay
    G01522462Courtesy of GENERAL MOTORS CORP.
